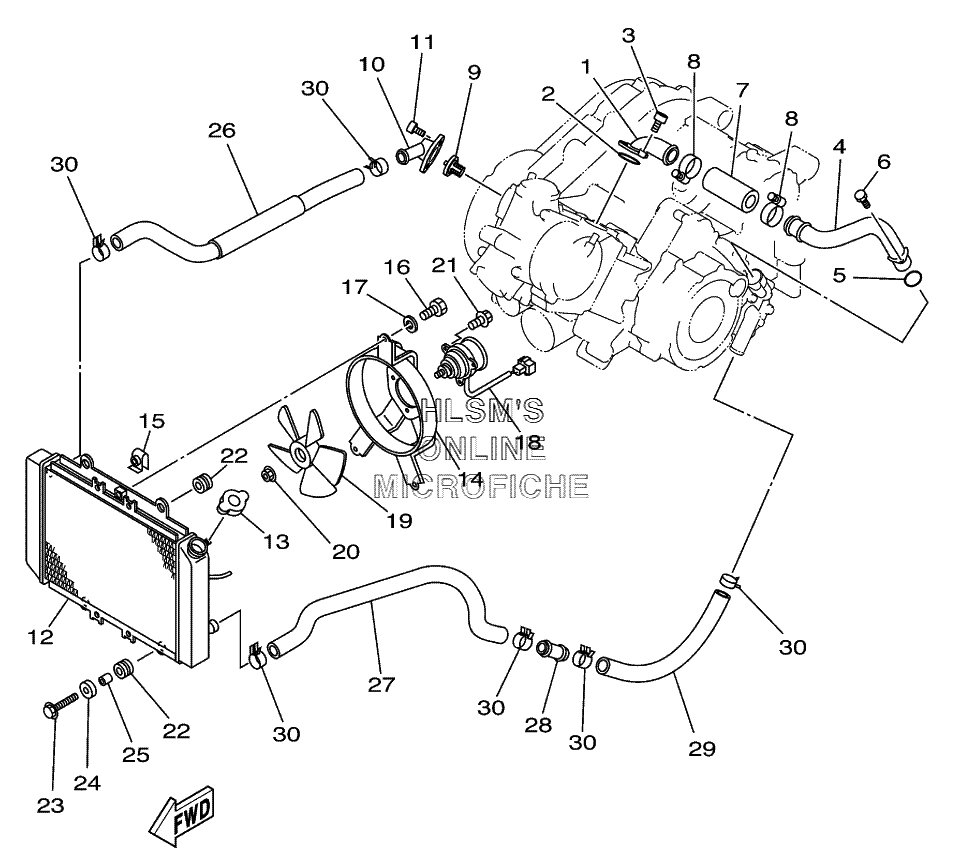

COOLING SYSTEM для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-12446-00-00 JOINTJOINT
-
293210-33786-00 O-RINGO-RING
-
390110-06136-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45GH-12484-00-00 PIPE 4PIPE 4
-
593210-18417-00 O-RINGO-RING
-
691317-06012-00 BOLTBOLT
-
75GH-12481-00-00 PIPE 1PIPE 1
-
890450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
92TV-12411-00-00 THERMOSTATTHERMOSTAT
-
105GH-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1191317-06020-00 BOLTBOLT
-
125GH-12461-10-00 RADIATOR ASSYRADIATOR ASSY
-
1322W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
145GH-12620-00-00 AIR SHROUD ASSYAIR SHROUD ASSY
-
151AA-12535-00-00 PLATEPLATE
-
1697017-06010-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
185GH-12630-10-00 MOTOR ASSYMOTOR ASSY
-
195GH-12611-00-00 FANFAN
-
2033M-12671-00-00 ...NUT 1...NUT 1
-
215GH-12647-00-00 ...SCREW, MOTOR HOLDING...SCREW, MOTOR HOLDING
-
2290480-15235-00 GROMMETGROMMET
-
2395807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2490209-06174-00 WASHERWASHER
-
2590387-060A7-00 COLLARCOLLAR
-
265GH-12482-00-00 PIPE 2PIPE 2
-
275GH-12483-00-00 PIPE 3PIPE 3
-
285GH-12485-00-00 PIPE 5PIPE 5
-
295GH-12476-00-00 PIPE 6PIPE 6
-
3090467-23177-00 CLIPCLIP
