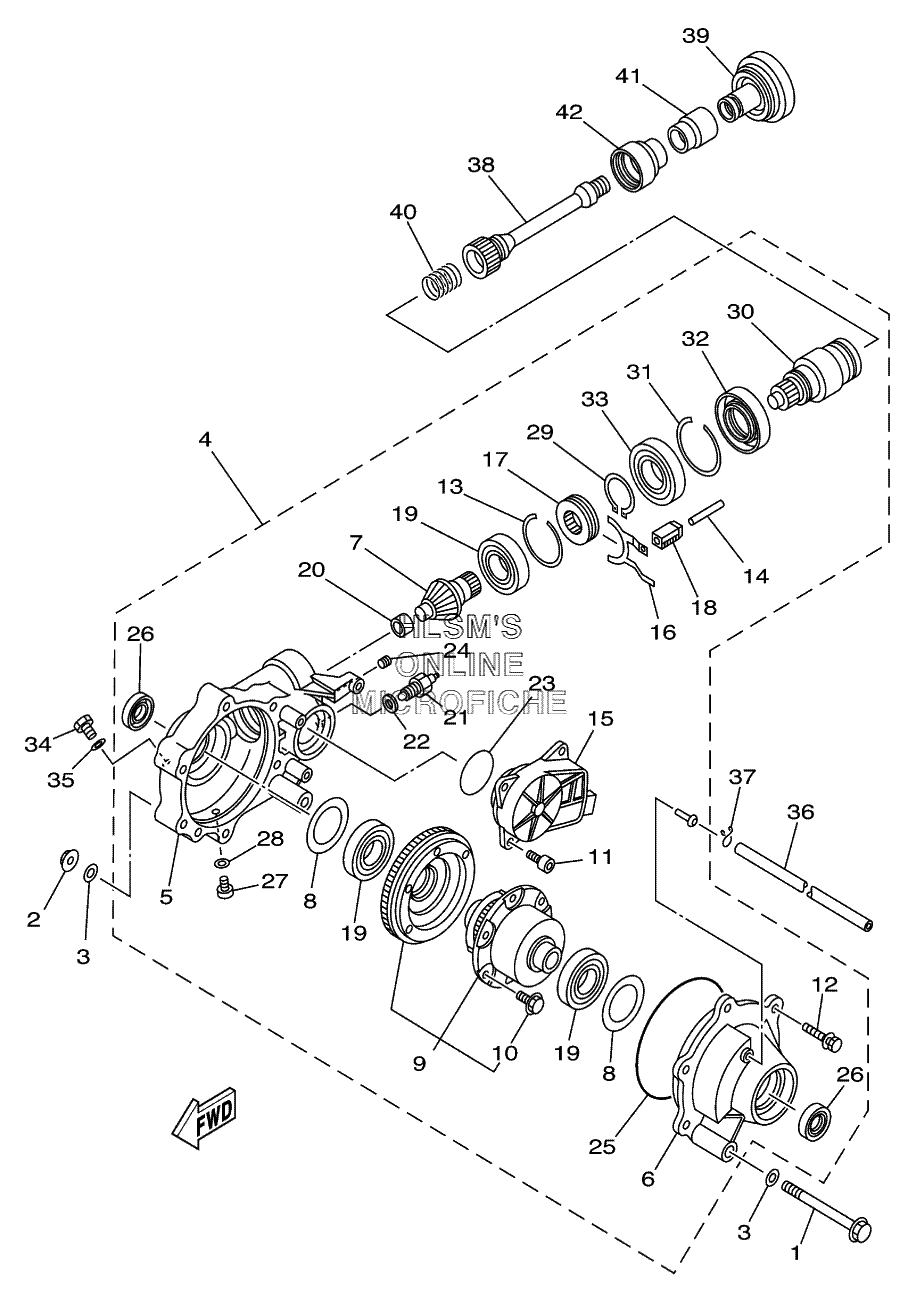

DIFFERENTIAL - FRONT W/ DRIVE AXLE для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
190105-10051-00 BOLT, FLANGEBOLT, FLANGE
-
295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
390201-101J1-00 WASHER, PLATEWASHER, PLATE
-
45GH-46160-02-00 FRONT AXLE GEAR CASE COMPFRONT AXLE GEAR CASE COMP
-
55GH-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
65GH-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
75GH-46141-00-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
84WV-46119-00-00 ......SHIM, THRUST (0.1T) (OPT)......SHIM, THRUST (0.1T) (OPT)
-
84WV-46119-20-00 ......SHIM, THRUST (0.3T) (OPT)......SHIM, THRUST (0.3T) (OPT)
-
84WV-46119-80-00 ......SHIM, THRUST (2.5T) (OPT)......SHIM, THRUST (2.5T) (OPT)
-
84WV-46119-70-00 ......SHIM, THRUST (2.0T) (OPT)......SHIM, THRUST (2.0T) (OPT)
-
84WV-46119-60-00 ......SHIM, THRUST (1.5T) (OPT)......SHIM, THRUST (1.5T) (OPT)
-
84WV-46119-50-00 ......SHIM, THRUST (1.0T) (OPT)......SHIM, THRUST (1.0T) (OPT)
-
84WV-46119-40-00 ......SHIM, THRUST (0.5T) (OPT)......SHIM, THRUST (0.5T) (OPT)
-
84WV-46119-30-00 ......SHIM, THRUST (0.4T) (OPT)......SHIM, THRUST (0.4T) (OPT)
-
84WV-46119-10-00 ......SHIM, THRUST (0.2T) (OPT)......SHIM, THRUST (0.2T) (OPT)
-
95GH-46470-01-00 ...LIMITED SLIP DIFFASSY...LIMITED SLIP DIFFASSY
-
104WV-46155-00-00 ......BOLT 1......BOLT 1
-
1191317-08020-00 ...BOLT...BOLT
-
124WV-46159-00-00 ......BOLT 3......BOLT 3
-
134WV-46143-00-00 ......RING,HOLE SNAP 2......RING,HOLE SNAP 2
-
145GH-18318-00-00 ...SHAFT, SHIFTER...SHAFT, SHIFTER
-
155GH-4616A-01-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
165GH-18514-00-00 ...FORK, SHIFT 4...FORK, SHIFT 4
-
174WV-46441-00-00 ...CLUTCH,DRIVEN...CLUTCH,DRIVEN
-
185GH-18319-00-00 ...SHAFT 2...SHAFT 2
-
194WV-46165-00-00 ...BEARING 2...BEARING 2
-
204WV-46167-00-00 ......BEARING 4......BEARING 4
-
213GD-82540-11-00 ...REVERSE SWITCH...REVERSE SWITCH
-
224WV-46132-00-00 ...GASKET 1...GASKET 1
-
2393210-50768-00 ...O-RING...O-RING
-
2490113-08004-00 ......BOLT, SET......BOLT, SET
-
2593211-40040-00 ......O-RING......O-RING
-
2693102-24034-00 ......OIL SEAL......OIL SEAL
-
2790340-10001-00 ......PLUG, STRAIGHT SCREW......PLUG, STRAIGHT SCREW
-
2890430-10003-00 ......GASKET......GASKET
-
2993450-44141-00 ...CIRCLIP...CIRCLIP
-
305GH-46126-00-00 ...COUPLING...COUPLING
-
3193450-71142-00 ...CIRCLIP...CIRCLIP
-
3293102-50030-00 ...OIL SEAL...OIL SEAL
-
3393316-00801-00 ...BEARING...BEARING
-
3490340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
35214-11198-01-00 ...GASKET...GASKET
-
3690445-07246-00 HOSEHOSE
-
3790467-07029-00 CLIPCLIP
-
385GH-46173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
395GH-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
4090501-296L7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
415GH-46136-00-00 SEAL 1SEAL 1
-
425GH-46137-00-00 SEAL 2SEAL 2
