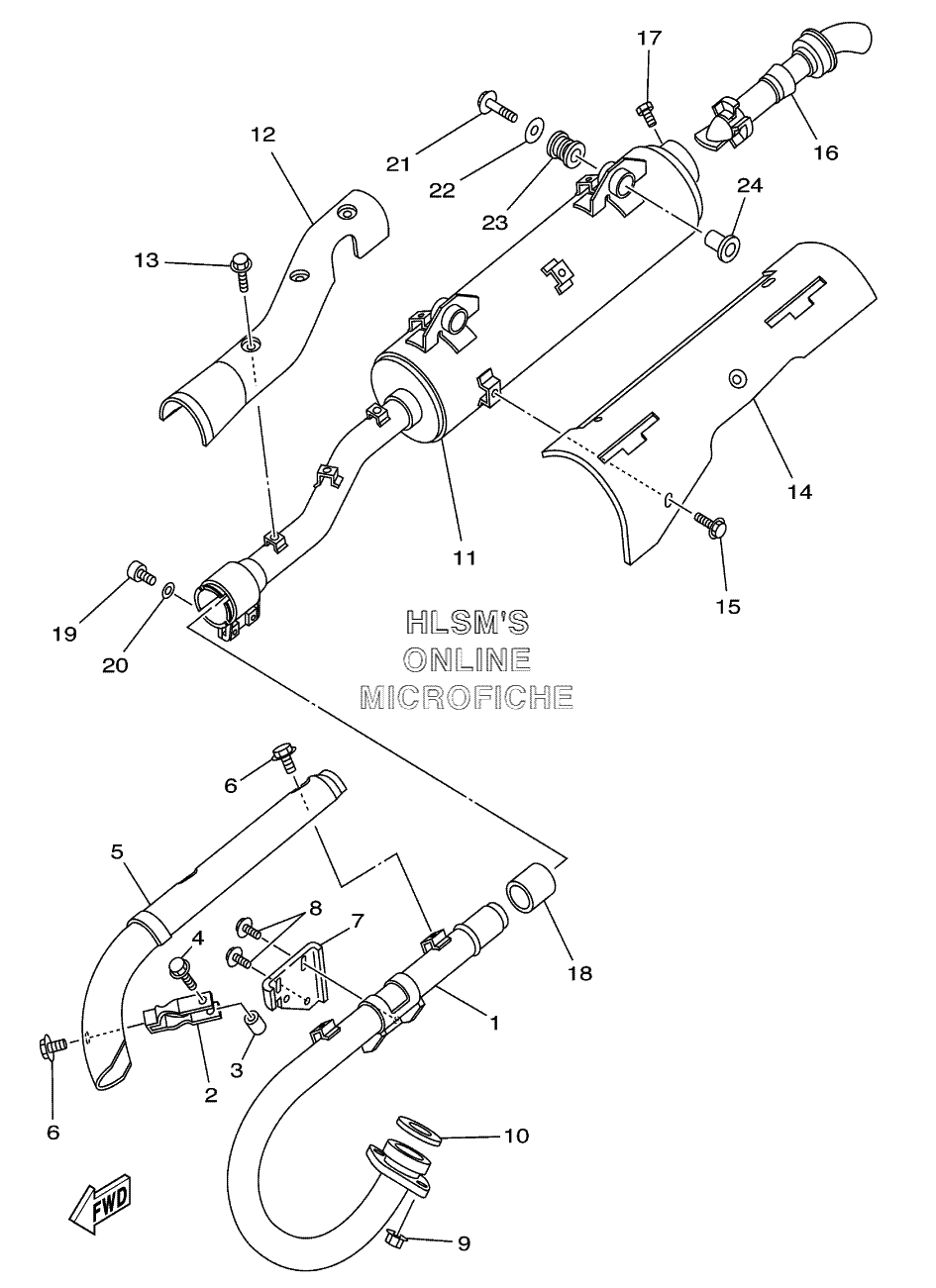

EXHAUST для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
25GH-14629-00-00 STAY, PROTECTORSTAY, PROTECTOR
-
390560-06243-00 SPACERSPACER
-
495827-06040-00 BOLT, FLANGEBOLT, FLANGE
-
55GH-14628-10-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
695817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
75GH-1477K-00-00 PLATE 1PLATE 1
-
895817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
990179-08410-00 NUTNUT
-
103GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
115GH-14711-00-00 MUFFLER 1MUFFLER 1
-
125GH-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
1395817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
145GH-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1595817-06008-00 BOLT, FLANGEBOLT, FLANGE
-
165GH-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
1797007-06008-00 BOLTBOLT
-
183YF-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
1991317-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090201-086J0-00 WASHER, PLATEWASHER, PLATE
-
2195827-10040-00 BOLT, FLANGEBOLT, FLANGE
-
2290201-106E0-00 WASHER, PLATEWASHER, PLATE
-
235GH-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2490387-10636-00 COLLARCOLLAR
