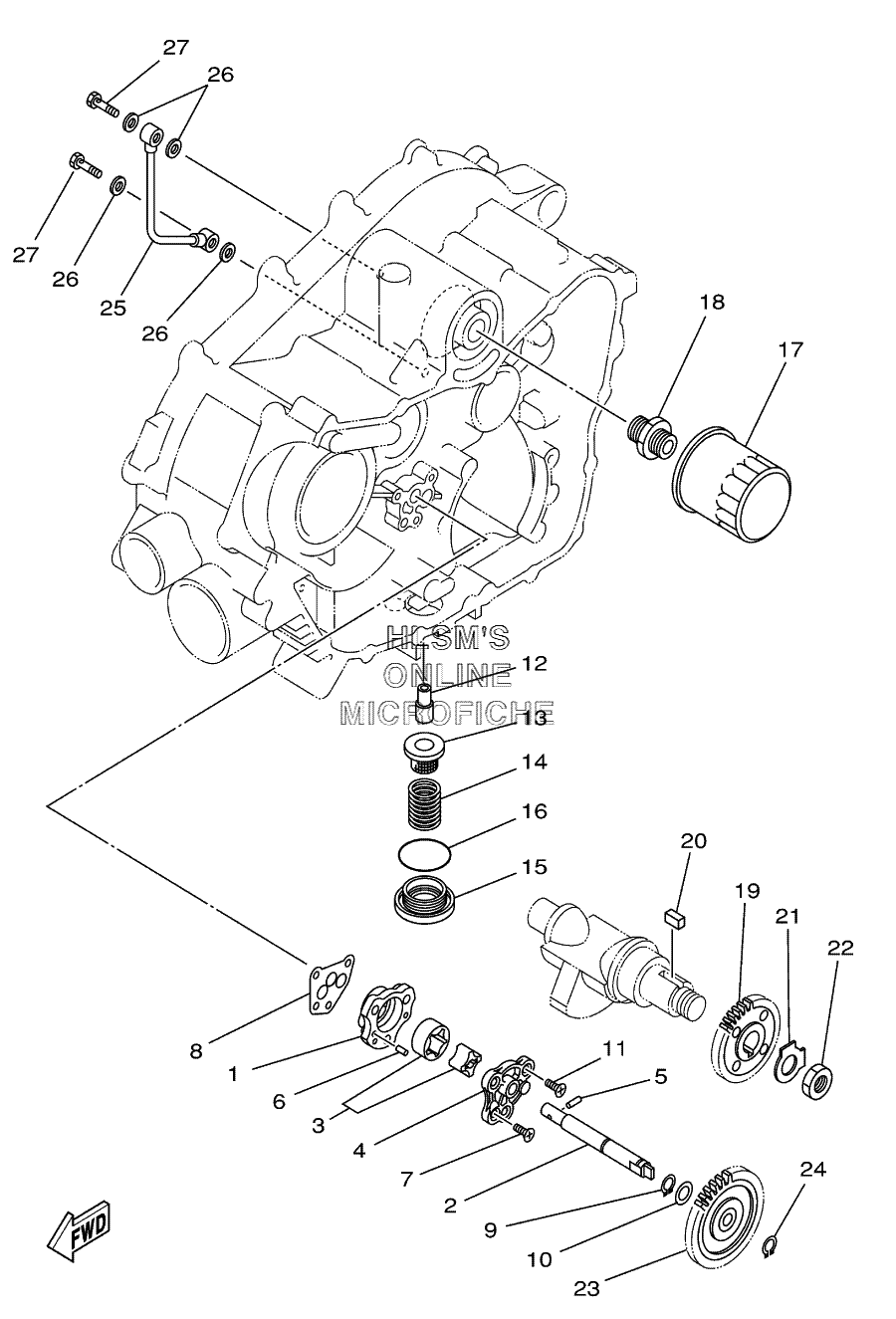

OIL PUMP для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
11UY-13336-00-00 HOUSING, ROTORHOUSING, ROTOR
-
25GH-13314-00-00 SHAFT, PUMPSHAFT, PUMP
-
33Y1-13310-01-00 ROTOR ASSY 1ROTOR ASSY 1
-
41UY-13316-00-00 COVER, PUMPCOVER, PUMP
-
593603-12030-00 PIN, DOWELPIN, DOWEL
-
693603-07073-00 PIN, DOWELPIN, DOWEL
-
798707-06020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
83GD-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
999009-11400-00 ...CIRCLIP...CIRCLIP
-
1090201-114P2-00 WASHER, PLATE (1.0)WASHER, PLATE (1.0)
-
1198707-06030-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
122XK-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1351Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1490501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
154HC-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1693210-35520-00 O-RINGO-RING
-
175GH-13440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
1890401-20145-00 BOLT, UNIONBOLT, UNION
-
195GH-13324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
2090282-05013-00 KEY, STRAIGHTKEY, STRAIGHT
-
2190215-14205-00 WASHER, LOCKWASHER, LOCK
-
2290170-14284-00 NUTNUT
-
235GH-13325-00-00 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
2499009-11400-00 ...CIRCLIP...CIRCLIP
-
254KB-13161-01-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2690430-08119-00 ...WASHER, PLATE...WASHER, PLATE
-
2790401-08038-00 BOLT, UNIONBOLT, UNION
