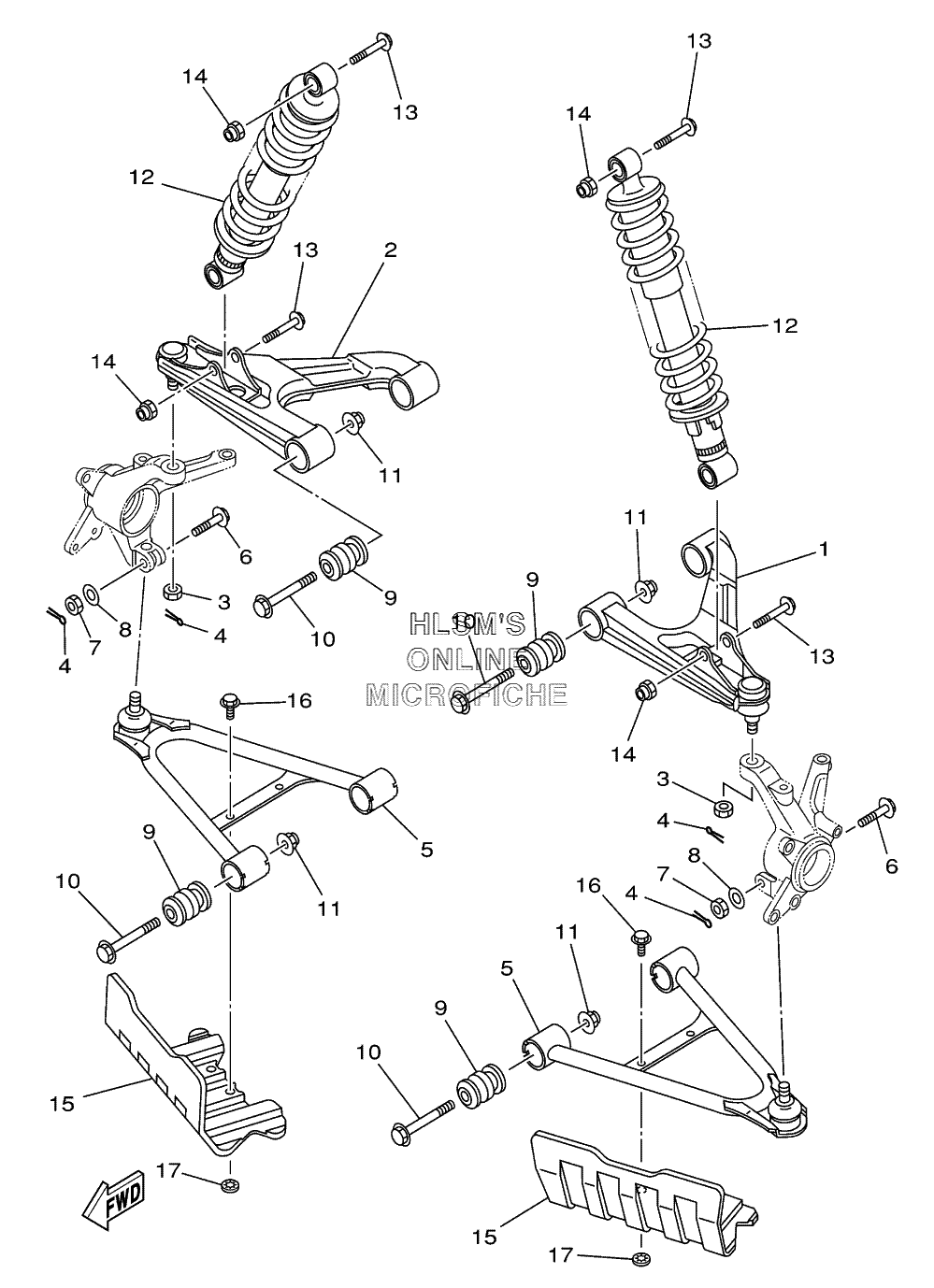

SUSPENSION - FRONT для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-23540-00-00 FRONT UPPER ARM COMP (LEFT)FRONT UPPER ARM COMP (LEFT)
-
25GH-23550-00-00 FRONT UPPER ARM COMP (RIGHT)FRONT UPPER ARM COMP (RIGHT)
-
390171-10046-00 NUT, CASTLENUT, CASTLE
-
491401-20020-00 PIN, COTTERPIN, COTTER
-
55GH-23570-00-00 FRONT LOWER ARM COMP(LEFT)FRONT LOWER ARM COMP(LEFT)
-
690105-10549-00 BOLT, FLANGEBOLT, FLANGE
-
795337-10600-00 NUTNUT
-
890201-10430-00 WASHER, PLATEWASHER, PLATE
-
92HR-23526-00-00 BUSHBUSH
-
1090105-10286-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
125GH-23350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1390105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155GH-23123-00-00 COVER, LOWER 1COVER, LOWER 1
-
1695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1790183-06053-00 NUT, SPRINGNUT, SPRING
