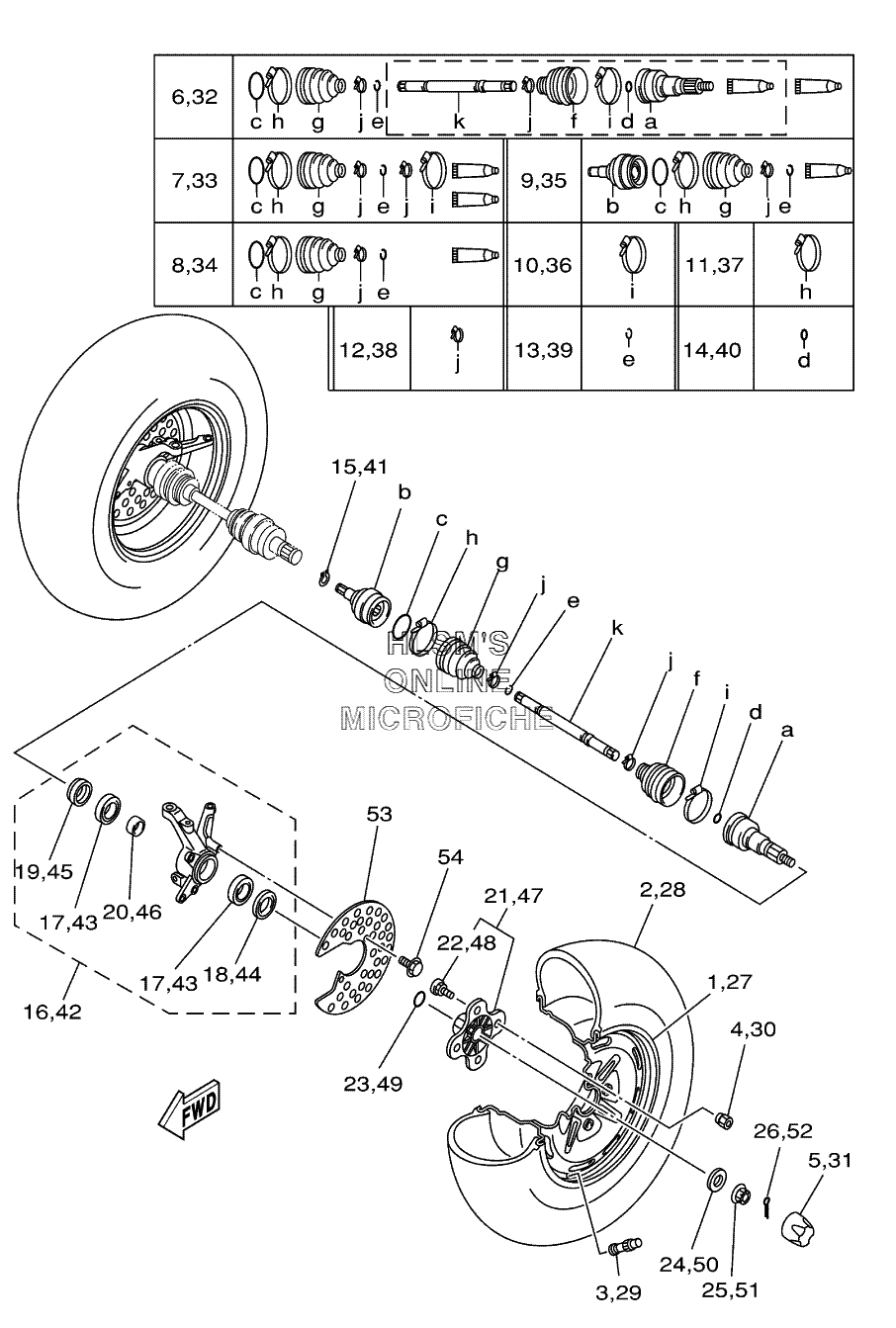

WHEEL - FRONT W/ CV JOINT для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-25180-00-00 WHEEL COMP.(BLACK)WHEEL COMP.(BLACK)
-
294108-1216D-00 TIRE(AT25 X 8-12,DUNLOP-KT123)TIRE(AT25 X 8-12,DUNLOP-KT123)
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
490179-10540-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65GH-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
75GH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
85GH-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95GH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
113HN-2511H-01-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
144KB-2512H-00-00 CIRCLIPCIRCLIP
-
1593450-22119-00 CIRCLIPCIRCLIP
-
165GH-23501-01-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1793306-00615-00 ......BEARING......BEARING
-
1893106-38046-00 ...OIL SEAL...OIL SEAL
-
1993106-38047-00 ......OIL SEAL......OIL SEAL
-
2090560-30325-00 ......SPACER......SPACER
-
215GH-25111-00-00 HUB, FRONTHUB, FRONT
-
2290114-10010-00 ......BOLT, SERRATION......BOLT, SERRATION
-
2393210-27666-00 O-RINGO-RING
-
2490201-162L6-00 WASHER, PLATEWASHER, PLATE
-
2590171-16001-00 NUT, CASTLENUT, CASTLE
-
2691401-30030-00 PIN, COTTERPIN, COTTER
-
275GH-25180-00-00 WHEEL COMP.(BLACK)WHEEL COMP.(BLACK)
-
2894108-1216D-00 TIRE (AT25 X 8-12,DUNLOP-KT123)TIRE (AT25 X 8-12,DUNLOP-KT123)
-
2993900-00022-00 VALVE, RIMVALVE, RIM
-
3090179-10540-00 NUTNUT
-
315GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
325GH-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
335GH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
345GH-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
355GH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
363HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
373HN-2511H-01-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
383HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
392HR-2512J-00-00 SNAP RINGSNAP RING
-
404KB-2512H-00-00 CIRCLIPCIRCLIP
-
4193450-22119-00 CIRCLIPCIRCLIP
-
425GH-23502-01-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4393306-00615-00 ......BEARING......BEARING
-
4493106-38046-00 ...OIL SEAL...OIL SEAL
-
4593106-38047-00 ......OIL SEAL......OIL SEAL
-
4690560-30325-00 ......SPACER......SPACER
-
475GH-25111-00-00 HUB, FRONTHUB, FRONT
-
4890114-10010-00 ......BOLT, SERRATION......BOLT, SERRATION
-
4993210-27666-00 O-RINGO-RING
-
5090201-162L6-00 WASHER, PLATEWASHER, PLATE
-
5190171-16001-00 NUT, CASTLENUT, CASTLE
-
5291401-30030-00 PIN, COTTERPIN, COTTER
-
534KB-2514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
5495827-06012-00 BOLT, FLANGEBOLT, FLANGE
