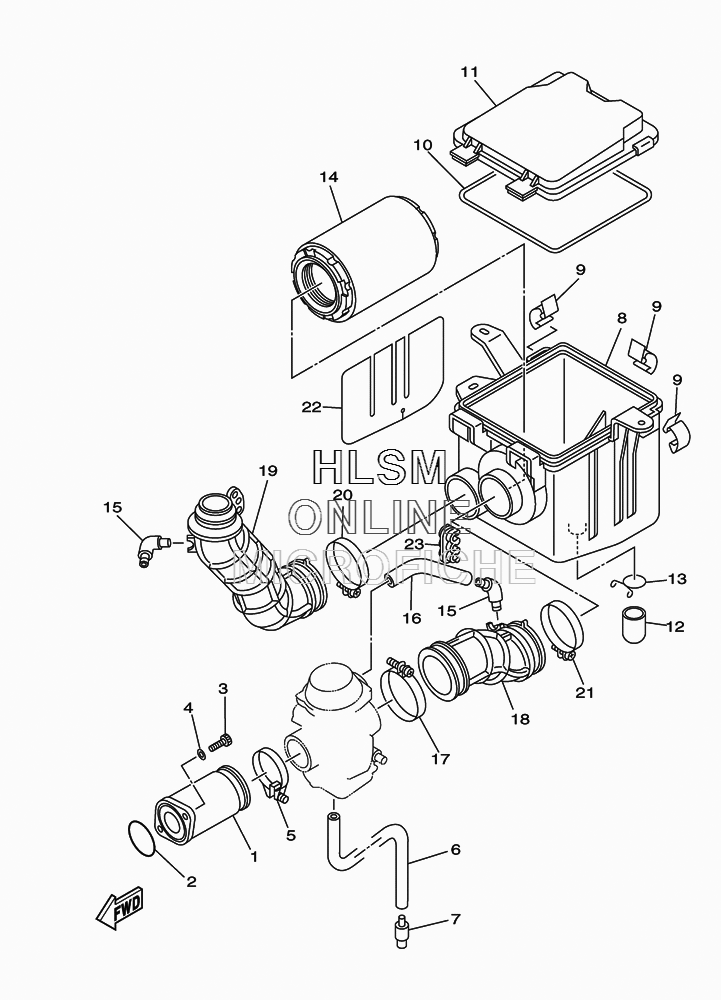

AIR CLEANER W/ INTAKE для Yamaha BIG BEAR 400 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15FU-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391312-08025-00 BOLTBOLT
-
490201-08070-00 WASHER, PLATEWASHER, PLATE
-
590450-47002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
624W-14193-00-00 PIPEPIPE
-
791A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
81P0-E4411-10-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
95UH-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
101P0-E4462-00-00 SEALSEAL
-
111P0-E4412-10-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
121P0-E4769-00-00 PIPE, DRAINPIPE, DRAIN
-
131P0-E4438-00-00 CLIP, DRAIN CLEANERCLIP, DRAIN CLEANER
-
141P0-E4450-00-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
1531A-14419-00-00 PIPEPIPE
-
1690445-158C1-00 HOSE (L110)HOSE (L110)
-
1790450-56008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
185FU-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
195FU-E4437-01-00 DUCTDUCT
-
2090450-58002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2190450-56008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
221P0-E442F-10-00 PROTECTORPROTECTOR
-
2390468-15020-00 CLIPCLIP
