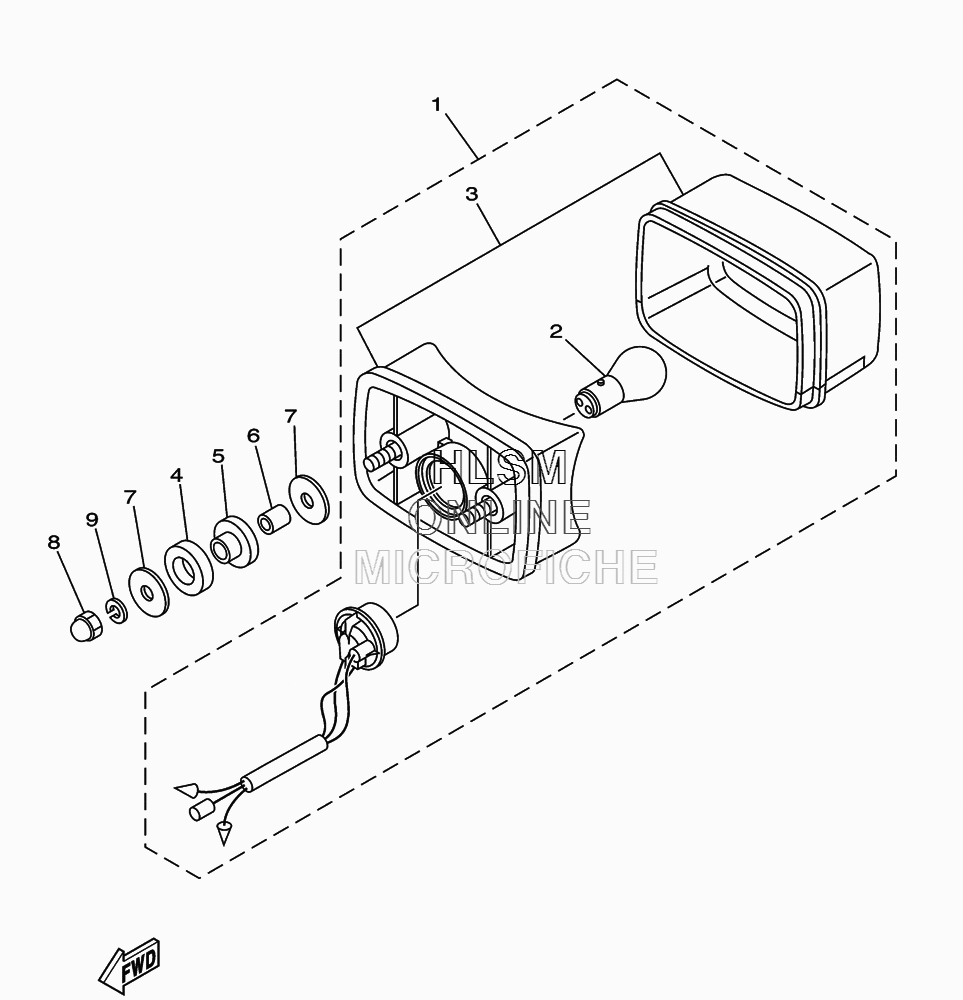

TAILLIGHT для Yamaha BIG BEAR 400 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15KM-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
35KM-8472C-10-00 LENS, TAILLIGHTLENS, TAILLIGHT
-
490202-14077-00 WASHER, PLATEWASHER, PLATE
-
590480-14088-00 GROMMETGROMMET
-
690560-07007-00 SPACERSPACER
-
790201-06097-00 WASHER, PLATEWASHER, PLATE
-
895302-06800-00 NUT, CROWNNUT, CROWN
-
992902-06100-00 WASHER, SPRINGWASHER, SPRING
