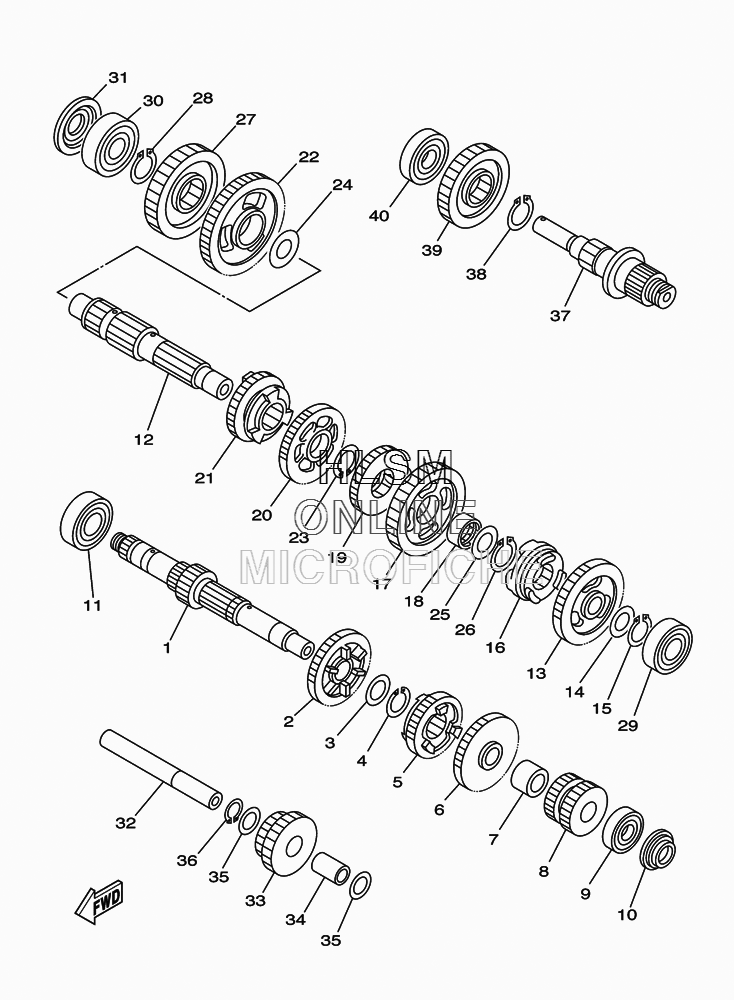

TRANSMISSION для Yamaha BIG BEAR 400 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15EH-17411-00-00 AXLE, MAINAXLE, MAIN
-
25EH-17141-00-00 GEAR, 4TH PINION (26T)GEAR, 4TH PINION (26T)
-
390209-21338-00 WASHERWASHER
-
493440-24173-00 CIRCLIPCIRCLIP
-
54KB-17131-00-00 GEAR, 3RD PINION (22T)GEAR, 3RD PINION (22T)
-
65EH-17151-00-00 GEAR, 5TH PINION (27T)GEAR, 5TH PINION (27T)
-
790387-1904J-00 COLLARCOLLAR
-
84KB-17121-00-00 GEAR, 2ND PINION (17T/18T)GEAR, 2ND PINION (17T/18T)
-
993306-20301-00 BEARINGBEARING
-
1093104-17094-00 OIL SEALOIL SEAL
-
1193306-27202-00 BEARINGBEARING
-
124KB-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
131YW-17221-00-00 GEAR, 2ND WHEEL (34T)GEAR, 2ND WHEEL (34T)
-
1490201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
1593410-20038-00 CIRCLIPCIRCLIP
-
164KB-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
174KB-17243-00-00 GEAR, REVERSE WHEEL1 (35T)GEAR, REVERSE WHEEL1 (35T)
-
1890387-2104H-00 COLLARCOLLAR
-
195EH-17251-00-00 GEAR, 5TH WHEEL (19T)GEAR, 5TH WHEEL (19T)
-
201YW-17231-01-00 GEAR, 3RD WHEEL (30T)GEAR, 3RD WHEEL (30T)
-
215EH-17241-00-00 GEAR, 4TH WHEEL (25T)GEAR, 4TH WHEEL (25T)
-
225EH-17211-00-00 GEAR, 1ST WHEEL (40T)GEAR, 1ST WHEEL (40T)
-
2393440-25020-00 CIRCLIPCIRCLIP
-
2490201-266F6-00 WASHER, PLATEWASHER, PLATE
-
2590209-22191-00 WASHERWASHER
-
2693410-25017-00 CIRCLIPCIRCLIP
-
275EH-17582-00-00 GEAR, MIDDLE DRIVE (24T)GEAR, MIDDLE DRIVE (24T)
-
2893410-26067-00 CIRCLIPCIRCLIP
-
2993306-20401-00 BEARINGBEARING
-
3093306-30424-00 BEARINGBEARING
-
3193104-20068-00 OIL SEALOIL SEAL
-
324KB-17432-00-00 AXLE, IDLEAXLE, IDLE
-
334KB-17253-00-00 GEAR, REVERSE WHEEL 2 (22T/15T)GEAR, REVERSE WHEEL 2 (22T/15T)
-
3490387-1504G-00 COLLARCOLLAR
-
3590201-150U6-00 WASHER, PLATEWASHER, PLATE
-
3693440-15012-00 CIRCLIPCIRCLIP
-
374KB-17523-00-00 SHAFTSHAFT
-
3893410-26067-00 CIRCLIPCIRCLIP
-
395EH-17583-00-00 GEAR, MIDDLE DRIVEN (28T)GEAR, MIDDLE DRIVEN (28T)
-
4093306-00426-00 BEARINGBEARING
