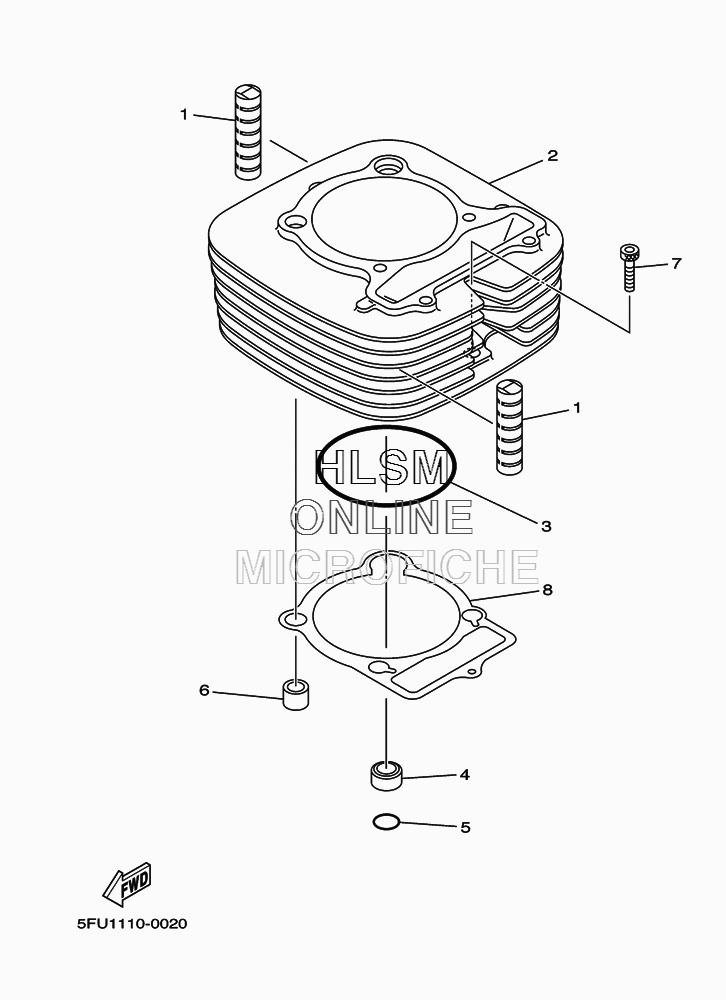

CYLINDER для Yamaha BIG BEAR 400 4WD - 2010 года выпуска
-
№АртикулНазвание
-
14X7-11127-00-00 ABSORBER 1ABSORBER 1
-
25FU-11310-01-00 CYLINDERCYLINDER
-
393210-86509-00 O-RINGO-RING
-
490387-16547-00 COLLARCOLLAR
-
593210-18322-00 O-RINGO-RING
-
699530-14016-00 PIN, DOWELPIN, DOWEL
-
790110-06138-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
84KB-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
