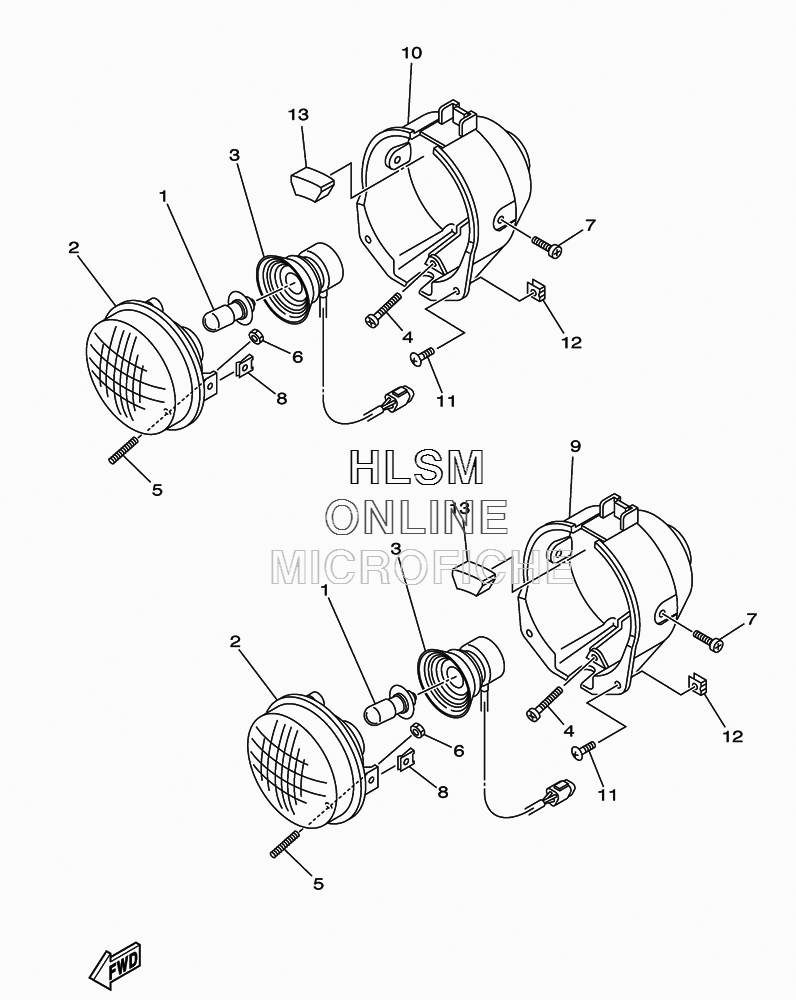

HEADLIGHT для Yamaha BIG BEAR 400 4WD - 2010 года выпуска
-
№АртикулНазвание
-
14KB-84314-01-00 BULB (12V-30/30W)BULB (12V-30/30W)
-
25KM-84320-01-00 LENS ASSYLENS ASSY
-
35EH-84340-00-00 SOCKET CORD ASSY 1SOCKET CORD ASSY 1
-
42GU-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
52GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
798902-05016-00 SCREW, BINDSCREW, BIND
-
890183-050A8-00 NUT, SPRINGNUT, SPRING
-
95FU-H4111-01-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
105FU-H4311-01-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
1197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1290183-05042-00 NUT, SPRINGNUT, SPRING
-
134XE-F1717-00-00 DAMPERDAMPER
