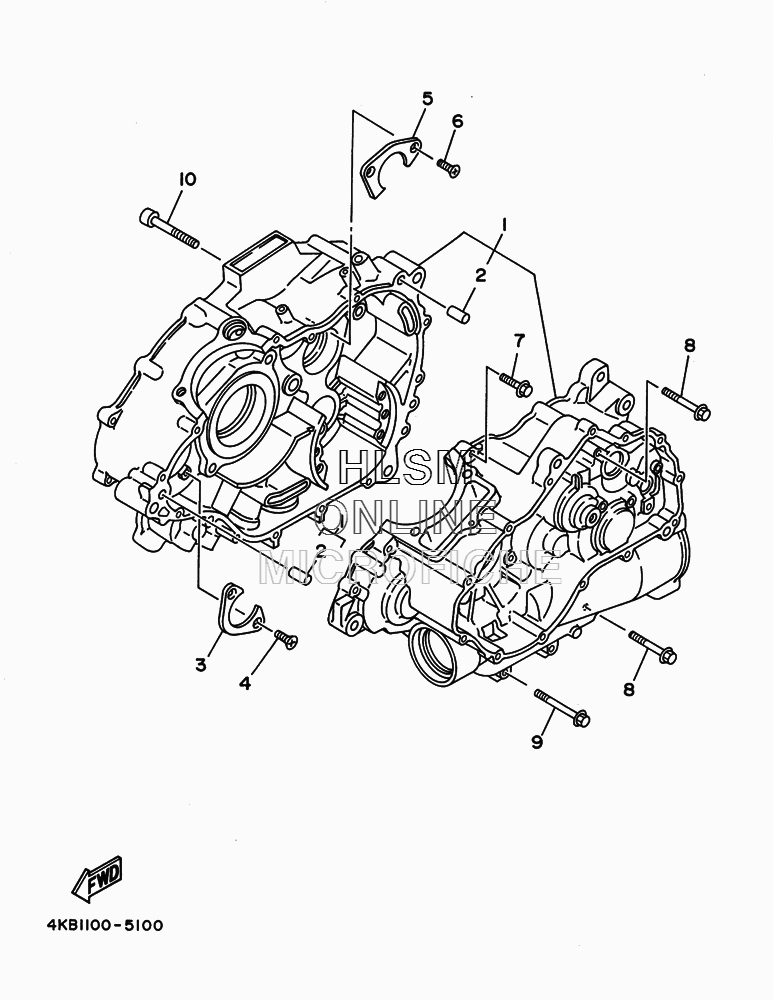

CRANKCASE для Yamaha BIG BEAR 400 4WD - 2010 года выпуска
-
№АртикулНазвание
-
14KB-15100-05-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10014-00 PIN, DOWELPIN, DOWEL
-
31UY-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
498702-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
54KB-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
698702-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
795022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
895022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
995022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1090110-08086-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
