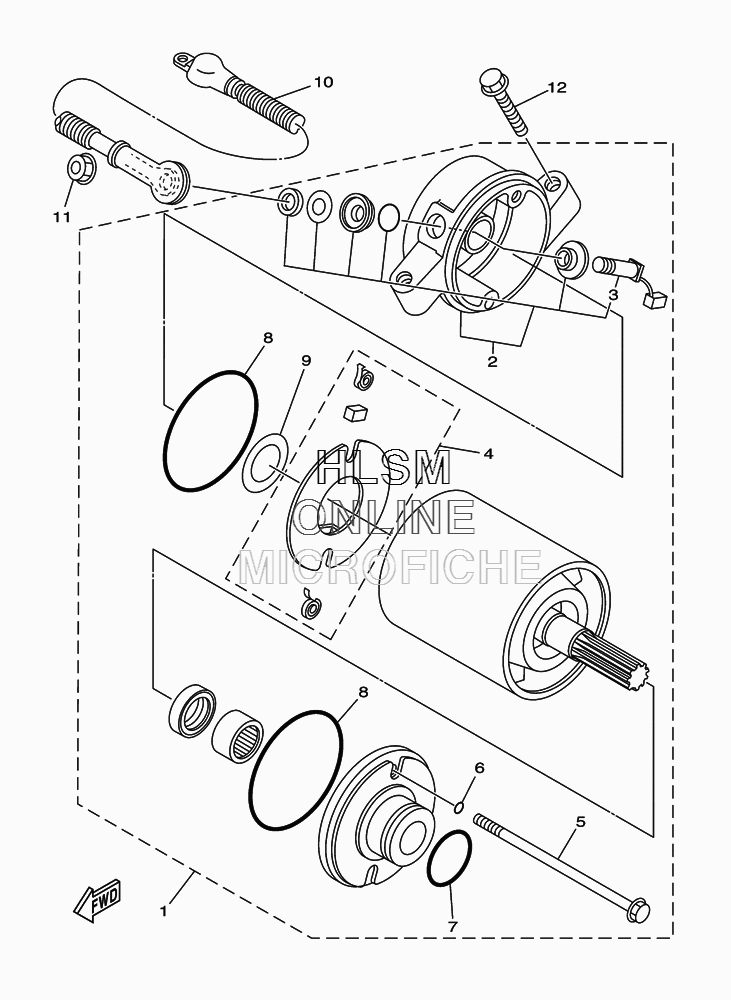

STARTING MOTOR для Yamaha BIG BEAR 400 4WD - 2010 года выпуска
-
№АртикулНазвание
-
14KB-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24KB-81820-00-00 REAR BRACKET ASSYREAR BRACKET ASSY
-
34KB-81818-00-00 BRUSH AND BOLTBRUSH AND BOLT
-
44H7-81840-00-00 BRUSH HOLDER ASSYBRUSH HOLDER ASSY
-
53GD-81826-00-00 BOLT, THROUGHBOLT, THROUGH
-
68L6-81847-50-00 O-RINGO-RING
-
71UY-81847-50-00 O-RINGO-RING
-
84H7-81844-50-00 GASKETGASKET
-
94H7-81843-50-00 SPRING, LEVERSPRING, LEVER
-
105FU-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
1195302-06600-00 NUTNUT
-
1295022-06030-00 BOLT, FLANGEBOLT, FLANGE
