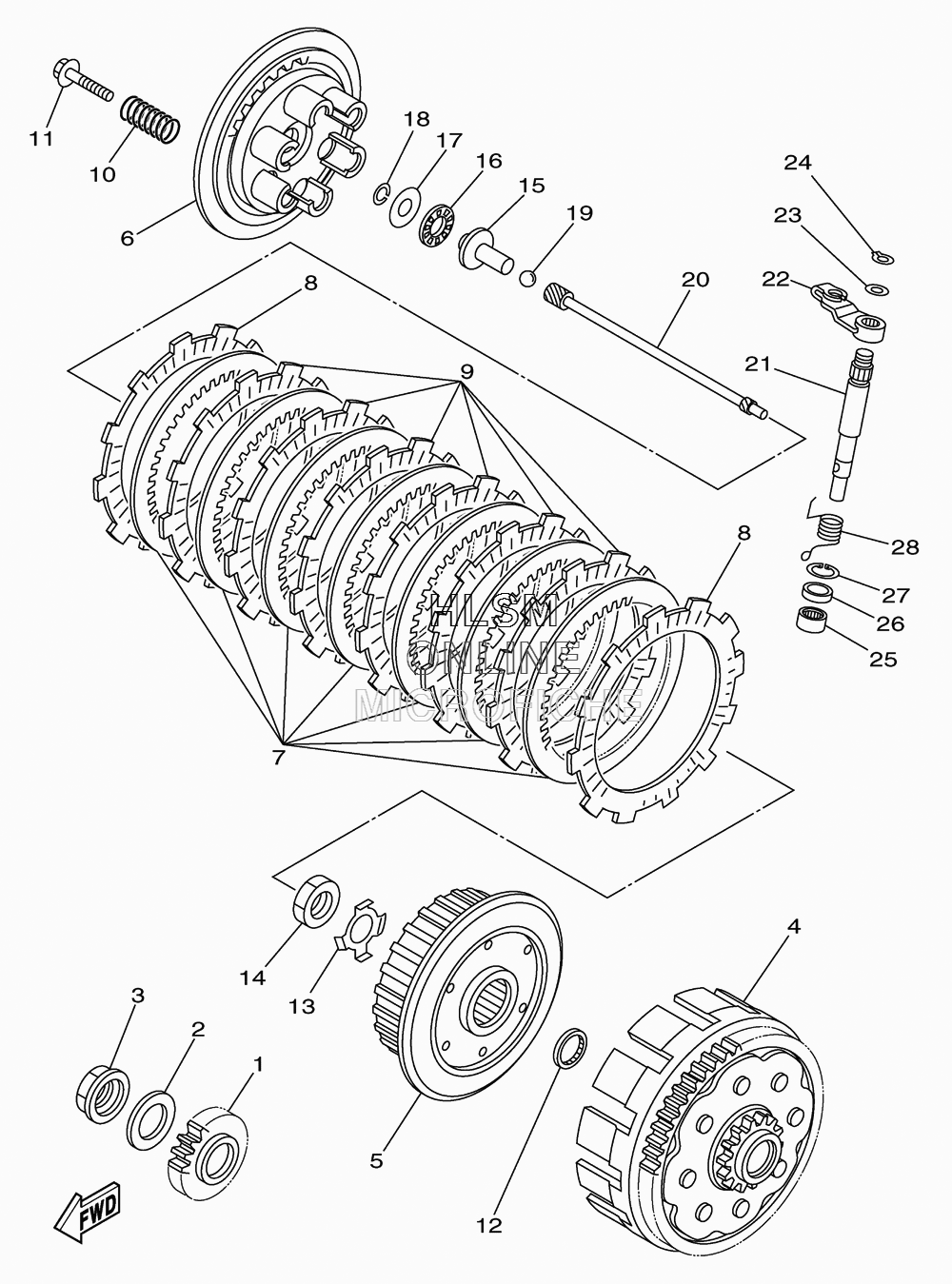

CLUTCH для Yamaha YFZ 450X - 2011 года выпуска
-
№АртикулНазвание
-
12S2-16111-60-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
290208-25045-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
390179-20009-00 NUTNUT
-
418P-16150-10-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
55TA-16371-10-00 BOSS, CLUTCHBOSS, CLUTCH
-
62S2-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
74X7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
85TA-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
95VY-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
1090501-231E9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1190159-06010-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
125TA-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
1390215-20005-00 WASHER, LOCKWASHER, LOCK
-
1490170-20327-00 NUTNUT
-
155TG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1693340-21505-00 BEARINGBEARING
-
1790201-125L6-00 WASHER, PLATEWASHER, PLATE
-
1893440-10085-00 CIRCLIPCIRCLIP
-
1993515-32029-00 BALLBALL
-
2018P-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2118P-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2218P-16342-00-00 LEVER, PUSHLEVER, PUSH
-
2390201-10032-00 WASHER, PLATEWASHER, PLATE
-
2499009-10400-00 CIRCLIPCIRCLIP
-
2593317-11287-00 BEARINGBEARING
-
2693102-12224-00 OIL SEALOIL SEAL
-
2799009-20500-00 CIRCLIPCIRCLIP
-
2890508-16061-00 SPRING, TORSIONSPRING, TORSION
