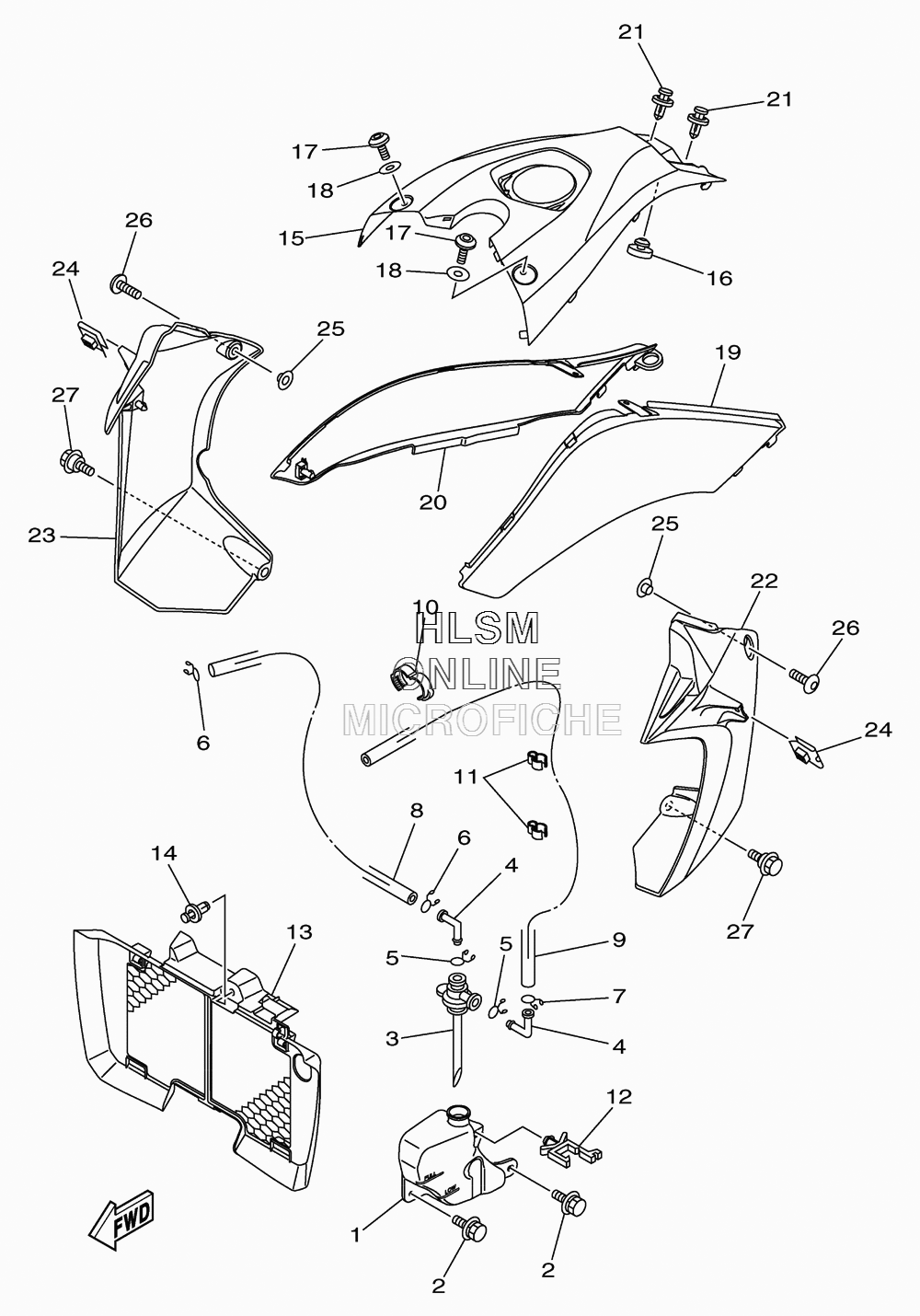

SIDE COVER для Yamaha YFZ 450X - 2011 года выпуска
-
№АртикулНазвание
-
118P-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
290119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
320S-21875-10-00 CAPCAP
-
426H-21828-00-00 ELBOWELBOW
-
590467-11019-00 CLIPCLIP
-
690467-08003-00 CLIPCLIP
-
790467-08003-00 CLIPCLIP
-
890445-09251-00 HOSEHOSE
-
990445-09123-00 HOSEHOSE
-
1090464-16001-00 CLAMPCLAMP
-
1190464-15065-00 CLAMPCLAMP
-
1290464-15M08-00 CLAMPCLAMP
-
1318P-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
1490269-07076-00 RIVETRIVET
-
1518P-2171A-00-00 COVER, TOPCOVER, TOP
-
1622W-24741-00-00 PAD, SEATPAD, SEAT
-
1790111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1890201-06085-00 WASHER, PLATEWASHER, PLATE
-
1918P-21711-20-00 COVER, SIDE 1COVER, SIDE 1
-
2018P-21721-20-00 COVER, SIDE 2COVER, SIDE 2
-
2190269-07010-00 RIVETRIVET
-
2218P-21731-10-00 COVER, SIDE 3COVER, SIDE 3
-
2318P-21741-10-00 COVER, SIDE 4COVER, SIDE 4
-
2490183-061A5-00 NUT, SPRINGNUT, SPRING
-
2590387-06170-00 COLLARCOLLAR
-
2690111-06084-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2790109-06172-00 BOLTBOLT
