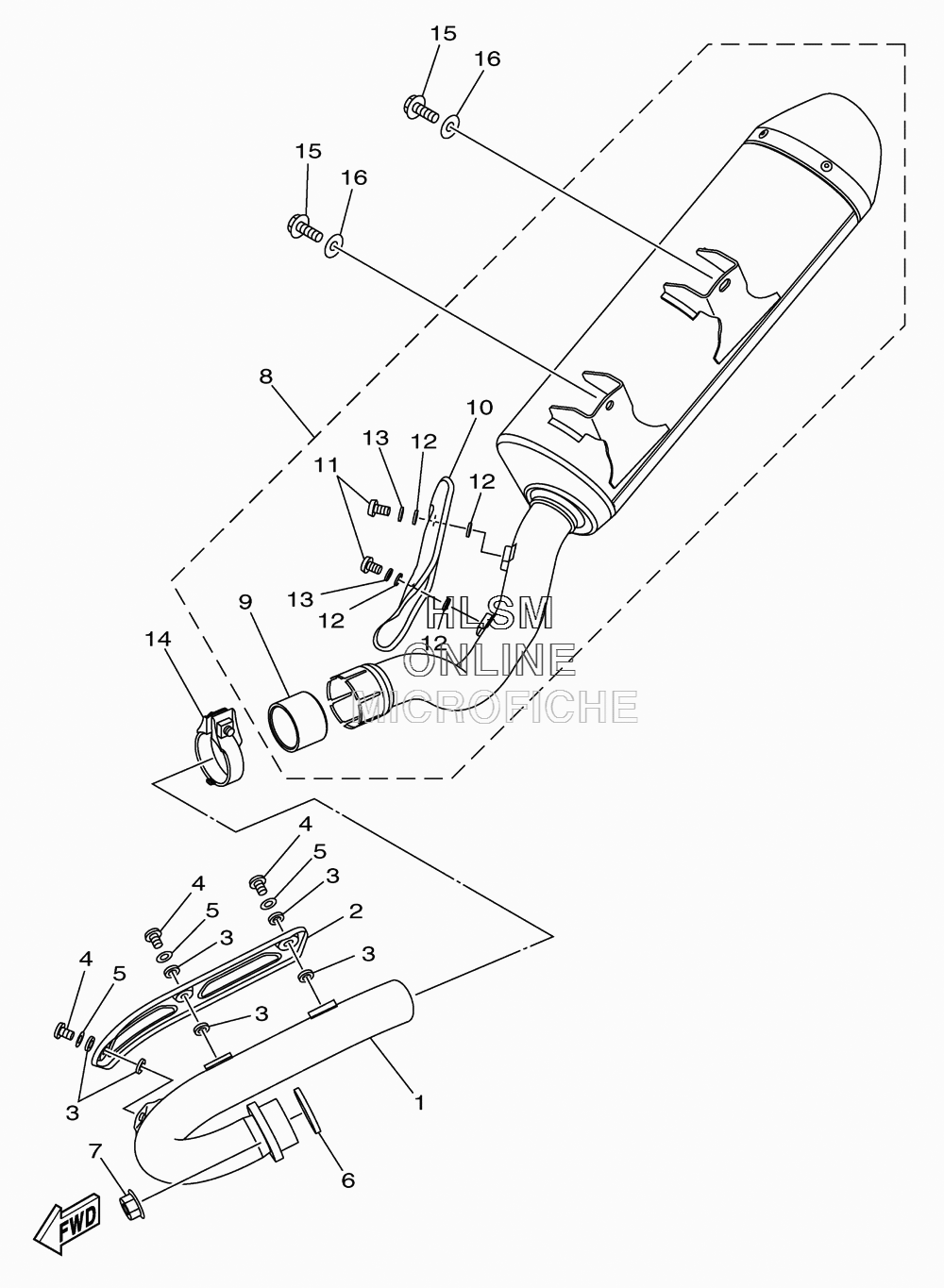

EXHAUST для Yamaha YFZ 450X - 2011 года выпуска
-
№АртикулНазвание
-
118P-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
218P-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
390201-05015-00 WASHER, PLATEWASHER, PLATE
-
498980-06010-00 SCREW, BINDSCREW, BIND
-
592990-06200-00 WASHER, PLAINWASHER, PLAIN
-
63VD-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
795702-08500-00 NUT,FLANGE (JN5)NUT,FLANGE (JN5)
-
818P-14710-01-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
98FA-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
1018P-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1198902-06010-00 SCREW, BINDSCREW, BIND
-
1290201-05015-00 WASHER, PLATEWASHER, PLATE
-
1392902-06200-00 WASHERWASHER
-
145BE-14788-00-00 BAND, SILENCERBAND, SILENCER
-
1590105-08129-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-08048-00 WASHER, PLATEWASHER, PLATE
