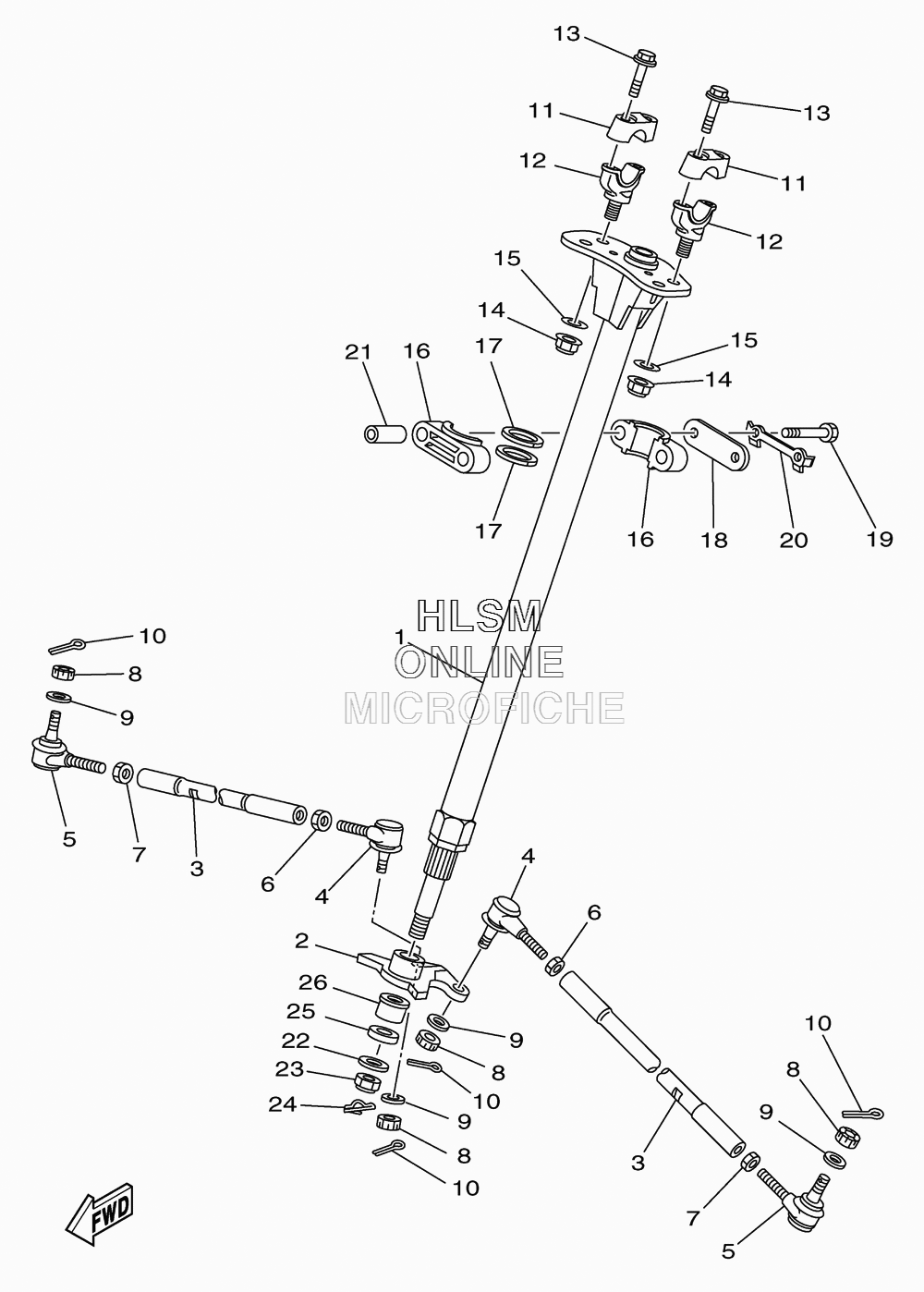

STEERING для Yamaha YFZ 450X - 2011 года выпуска
-
№АртикулНазвание
-
118P-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
218P-23816-00-00 ARM, PITMANARM, PITMAN
-
31S3-23831-20-00 ROD, TIEROD, TIE
-
41S3-23841-20-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
51S3-23845-20-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
690170-12055-00 NUT,HEXAGON RIGHTNUT,HEXAGON RIGHT
-
790170-12054-00 NUTNUT
-
890171-10001-00 NUT, CASTLENUT, CASTLE
-
990209-10229-00 WASHERWASHER
-
1091402-20020-00 PIN, COTTERPIN, COTTER
-
1118P-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1218P-23442-10-00 HOLDER, HANDLE UNDERHOLDER, HANDLE UNDER
-
1390105-08154-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590201-12034-00 WASHER, PLATEWASHER, PLATE
-
161UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
1793112-31011-00 OIL SEALOIL SEAL
-
181UY-23868-01-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1997022-08065-00 BOLT,WITH WASHERBOLT,WITH WASHER
-
201UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
2190387-090R0-00 COLLARCOLLAR
-
2290201-14021-00 WASHER, PLATEWASHER, PLATE
-
2390185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2491402-20025-00 PIN, COTTERPIN, COTTER
-
2590387-176R6-00 COLLARCOLLAR
-
2690387-17013-00 COLLARCOLLAR
