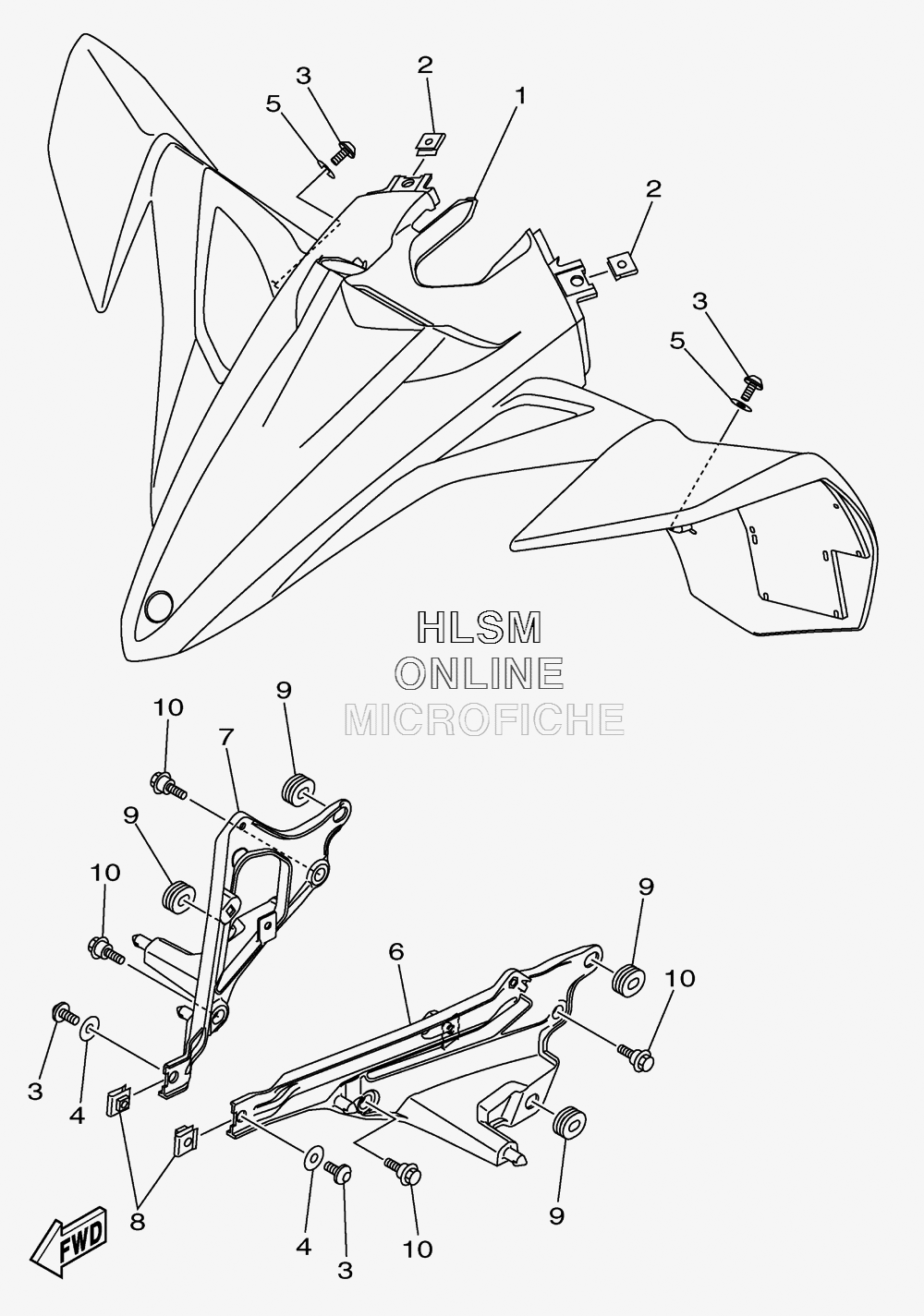

FENDER - FRONT для Yamaha YFZ 450X - 2011 года выпуска
-
№АртикулНазвание
-
118P-W2151-00-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
290183-061A5-00 NUT, SPRINGNUT, SPRING
-
390111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
490201-06033-00 WASHER, PLATEWASHER, PLATE
-
590201-06085-00 WASHER, PLATEWASHER, PLATE
-
618P-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
718P-21514-00-00 STAY, FENDER 2STAY, FENDER 2
-
890183-061A5-00 NUT, SPRINGNUT, SPRING
-
990480-01559-00 GROMMETGROMMET
-
1090109-06199-00 BOLTBOLT
