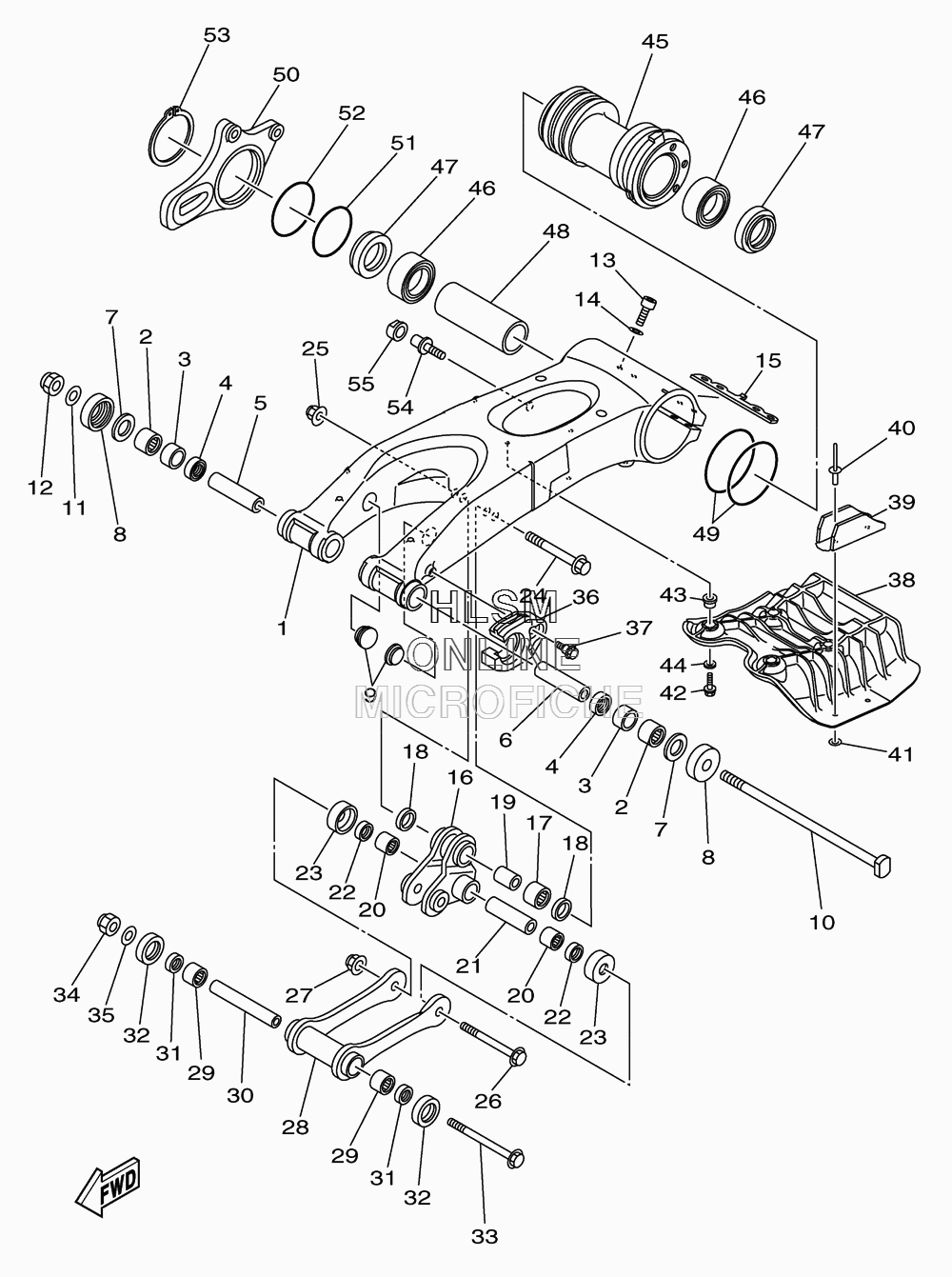

SUSPENSION - REAR ARM для Yamaha YFZ 450X - 2011 года выпуска
-
№АртикулНазвание
-
118P-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
293317-22237-00 BEARING,CYL.#17BEARING,CYL.#17
-
390380-22111-00 BUSH, SOLIDBUSH, SOLID
-
493106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
590387-16027-00 COLLARCOLLAR
-
690387-160W1-00 COLLARCOLLAR
-
73YF-22149-00-00 WASHERWASHER
-
84X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
990338-23004-00 PLUGPLUG
-
1018P-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
1190201-16018-00 WASHER, PLATEWASHER, PLATE
-
1290185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1391314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1492903-08600-00 WASHERWASHER
-
155TG-22475-00-00 SEAL, DUSTSEAL, DUST
-
1618P-2217A-00-00 ARM, RELAY 1ARM, RELAY 1
-
1793315-32056-00 BEARINGBEARING
-
1893109-20001-00 OIL SEALOIL SEAL
-
1990387-12043-00 COLLARCOLLAR
-
2093315-31758-00 BEARINGBEARING
-
2190387-12041-00 COLLARCOLLAR
-
2293109-17071-00 OIL SEALOIL SEAL
-
2355K-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
2490105-12064-00 BOLT, FLANGEBOLT, FLANGE
-
2590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690105-12065-00 BOLT, FLANGEBOLT, FLANGE
-
2790185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2818P-2217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
2993315-31758-00 BEARINGBEARING
-
3090387-12042-00 COLLARCOLLAR
-
3193109-17071-00 OIL SEALOIL SEAL
-
3255K-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
3390105-12066-00 BOLT, FLANGEBOLT, FLANGE
-
3490185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590201-12032-00 WASHER, PLATEWASHER, PLATE
-
3618P-22151-10-00 SEAL, GUARDSEAL, GUARD
-
3790109-06172-00 BOLTBOLT
-
3818P-22361-00-00 GUARD 1GUARD 1
-
395TG-22153-10-00 GUARD, CHAINGUARD, CHAIN
-
4090267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
4190201-04027-00 WASHER, PLATEWASHER, PLATE
-
4295812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
4390387-06151-00 COLLARCOLLAR
-
4490201-06033-00 WASHER, PLATEWASHER, PLATE
-
455TG-25311-20-00 HUB, REARHUB, REAR
-
4693304-20812-00 BEARINGBEARING
-
4793106-48001-00 OIL SEALOIL SEAL
-
485TG-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
491S3-23147-01-00 O-RINGO-RING
-
505TG-25721-20-00 BRACKET, CALIPERBRACKET, CALIPER
-
5193210-71001-00 O-RINGO-RING
-
5293210-66001-00 O-RINGO-RING
-
5393410-67085-00 CIRCLIPCIRCLIP
-
5490110-12001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5590387-16014-00 COLLARCOLLAR
