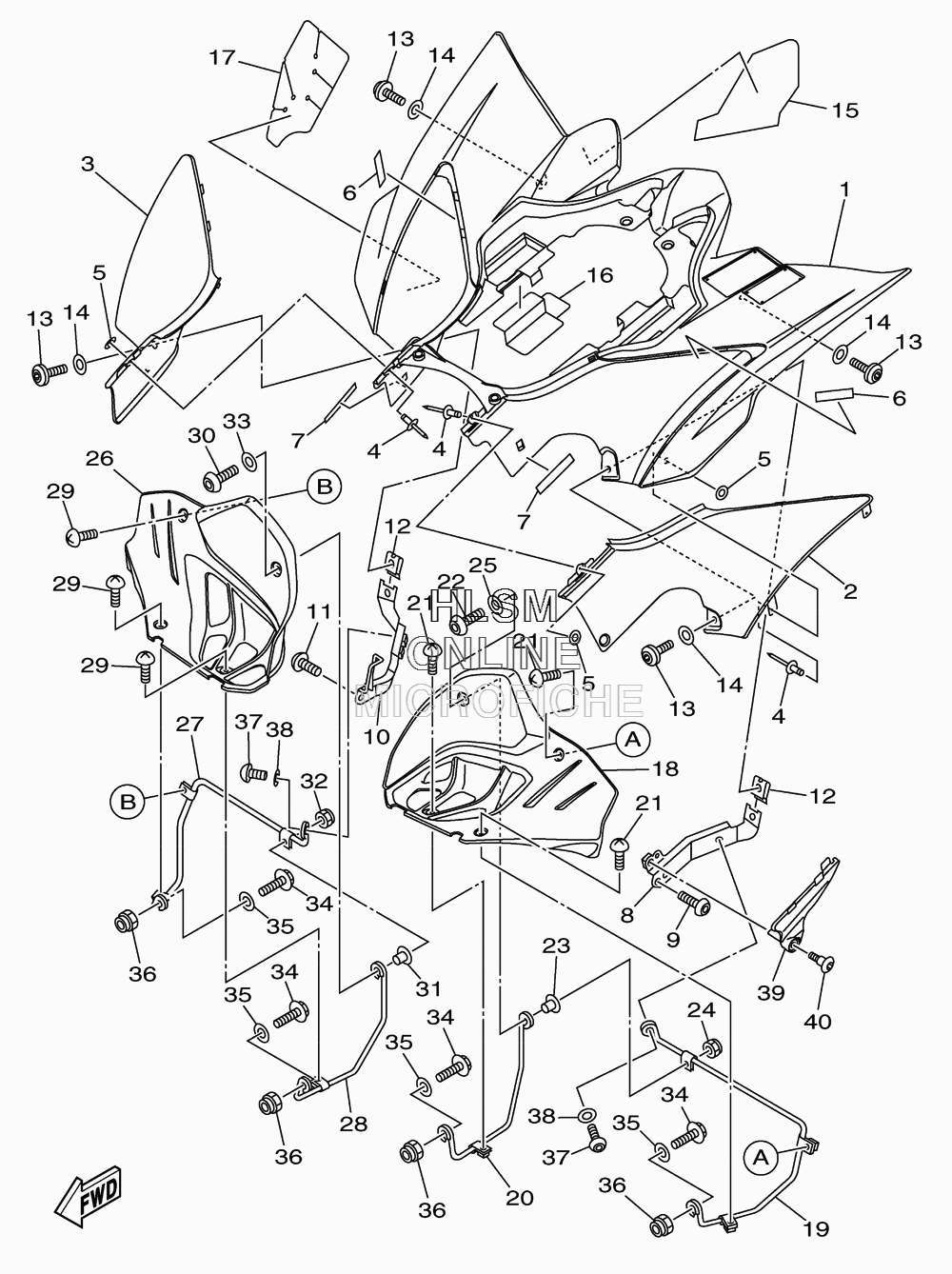

FENDER - REAR для Yamaha YFZ 450X - 2011 года выпуска
-
№АртикулНазвание
-
118P-W2161-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
218P-2476U-10-00 PROTECTOR, 1PROTECTOR, 1
-
318P-2476V-10-00 PROTECTOR,2PROTECTOR,2
-
490267-32004-00 RIVET, BLINDRIVET, BLIND
-
590201-03008-00 WASHER, PLATEWASHER, PLATE
-
618P-2173U-00-00 TAPE 2TAPE 2
-
718P-2173T-00-00 TAPE 1TAPE 1
-
818P-21643-00-00 STAY, FENDER 3STAY, FENDER 3
-
992012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1018P-21644-00-00 STAY, FENDER 4STAY, FENDER 4
-
1192012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290183-061A5-00 NUT, SPRINGNUT, SPRING
-
1390111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1490201-06085-00 WASHER, PLATEWASHER, PLATE
-
1518P-21652-00-00 PROTECTORPROTECTOR
-
1618P-2163E-00-00 COVER, 2COVER, 2
-
1718P-2163F-00-00 COVER, 3COVER, 3
-
1818P-21621-00-00 FLAPFLAP
-
1918P-2164F-00-00 STAY 1STAY 1
-
2018P-2164H-00-00 STAY 3STAY 3
-
2190154-05043-00 SCREW, BINDINGSCREW, BINDING
-
2292012-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2390387-06205-00 COLLARCOLLAR
-
2495602-06200-00 NUT-UNUT-U
-
2590201-06076-00 WASHER, PLATEWASHER, PLATE
-
2618P-21691-00-00 FLAPFLAP
-
2718P-2164G-00-00 STAY 2STAY 2
-
2818P-2164J-00-00 STAY 4STAY 4
-
2990154-05043-00 SCREW, BINDINGSCREW, BINDING
-
3092012-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3190387-06205-00 COLLARCOLLAR
-
3295602-06200-00 NUT-UNUT-U
-
3390201-06076-00 WASHER, PLATEWASHER, PLATE
-
3495822-08025-00 BOLT,FLANGE (4LN)BOLT,FLANGE (4LN)
-
3590201-08048-00 WASHER, PLATEWASHER, PLATE
-
3695602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3792012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3890201-08043-00 WASHER, PLATEWASHER, PLATE
-
3918P-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
4090109-06249-00 BOLTBOLT
