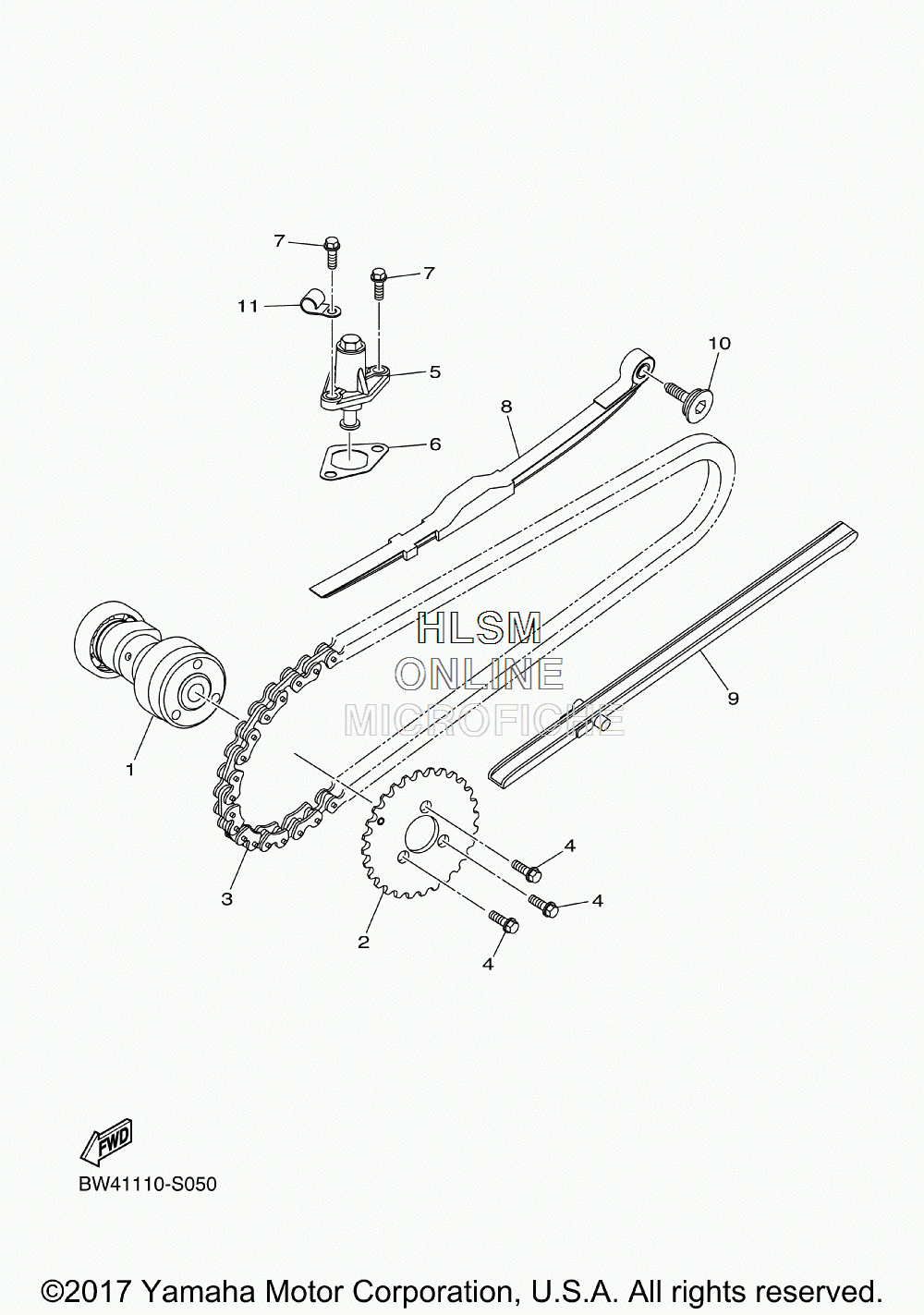

CAMSHAFT W/ CHAIN для Yamaha RAPTOR 90 - 2018 года выпуска
-
№АртикулНазвание
-
1BD3-E2170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
2BD3-E2176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
3BD3-E2190-00-00 CHAIN ASSYCHAIN ASSY
-
4BD3-E1458-10-00 BOLTBOLT
-
5BD3-E2210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
6BD3-E2213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
7BD3-E3573-10-00 BOLT 1BOLT 1
-
8BD3-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
9BD3-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
10BD3-E22A1-10-00 BOLT 2BOLT 2
-
11BD3-E5689-00-00 RETAINERRETAINER
