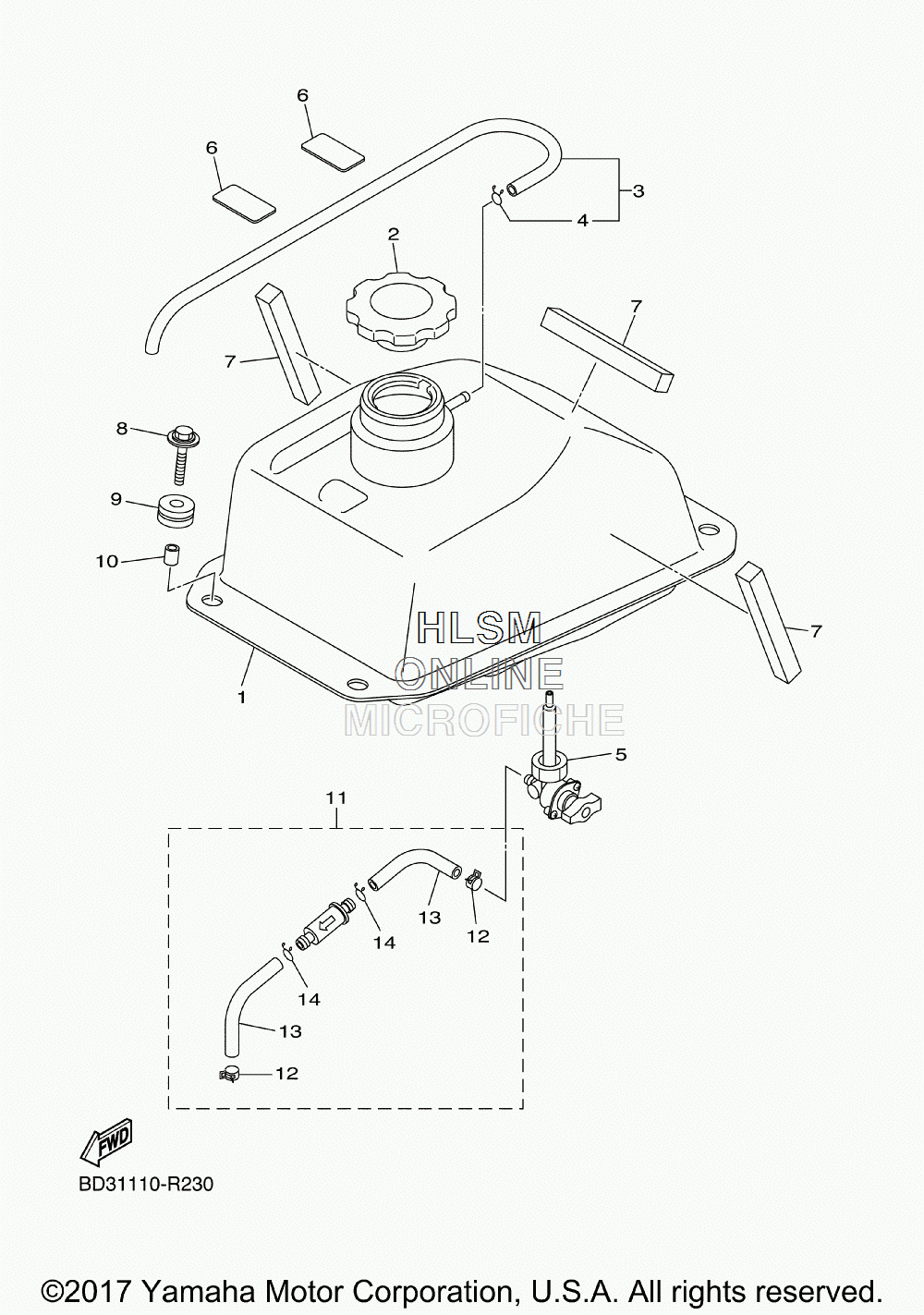

FUEL TANK для Yamaha RAPTOR 90 - 2018 года выпуска
-
№АртикулНазвание
-
1BD3-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
2BD3-F4610-10-00 CAP ASSYCAP ASSY
-
3BD3-F318J-10-00 HOSE ASSYHOSE ASSY
-
4BD3-F3447-10-00 ...CLIP...CLIP
-
5BD3-F4500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
6BD3-F1566-00-00 TAPE, 1TAPE, 1
-
7BD3-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
8BD3-F3492-10-00 BOLTBOLT
-
9BD3-F4339-00-00 GROMMETGROMMET
-
10BD3-F412G-10-00 COLLARCOLLAR
-
11BD3-F4560-10-00 FILTER ASSYFILTER ASSY
-
12BD3-F4366-00-00 ...CLAMP, FUEL PIPE 1...CLAMP, FUEL PIPE 1
-
13BD3-F4864-00-00 ...TUBE...TUBE
-
14BD3-F411M-10-00 ...CLIP...CLIP
