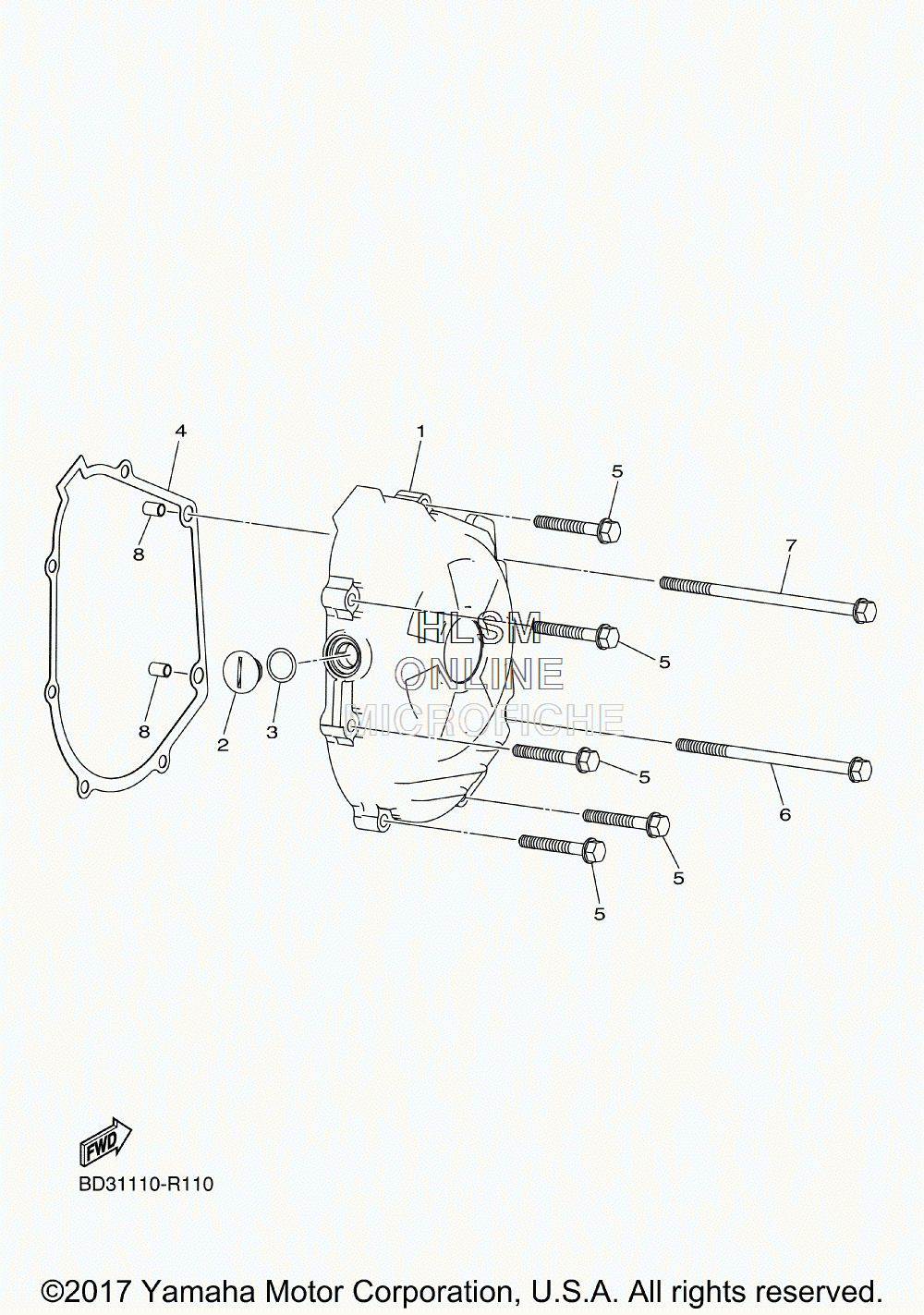

CRANKCASE COVER для Yamaha RAPTOR 90 - 2018 года выпуска
-
№АртикулНазвание
-
1BD3-E5414-10-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
2BD3-E5189-00-00 PLUGPLUG
-
3BD3-E511C-00-00 OIL SEALOIL SEAL
-
4BD3-E5462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
5BD3-G6249-10-00 BOLTBOLT
-
6BD3-G7542-10-00 BOLTBOLT
-
7BD3-G7553-10-00 BOLTBOLT
-
8BD3-E3516-00-00 PIN, DOWELPIN, DOWEL
