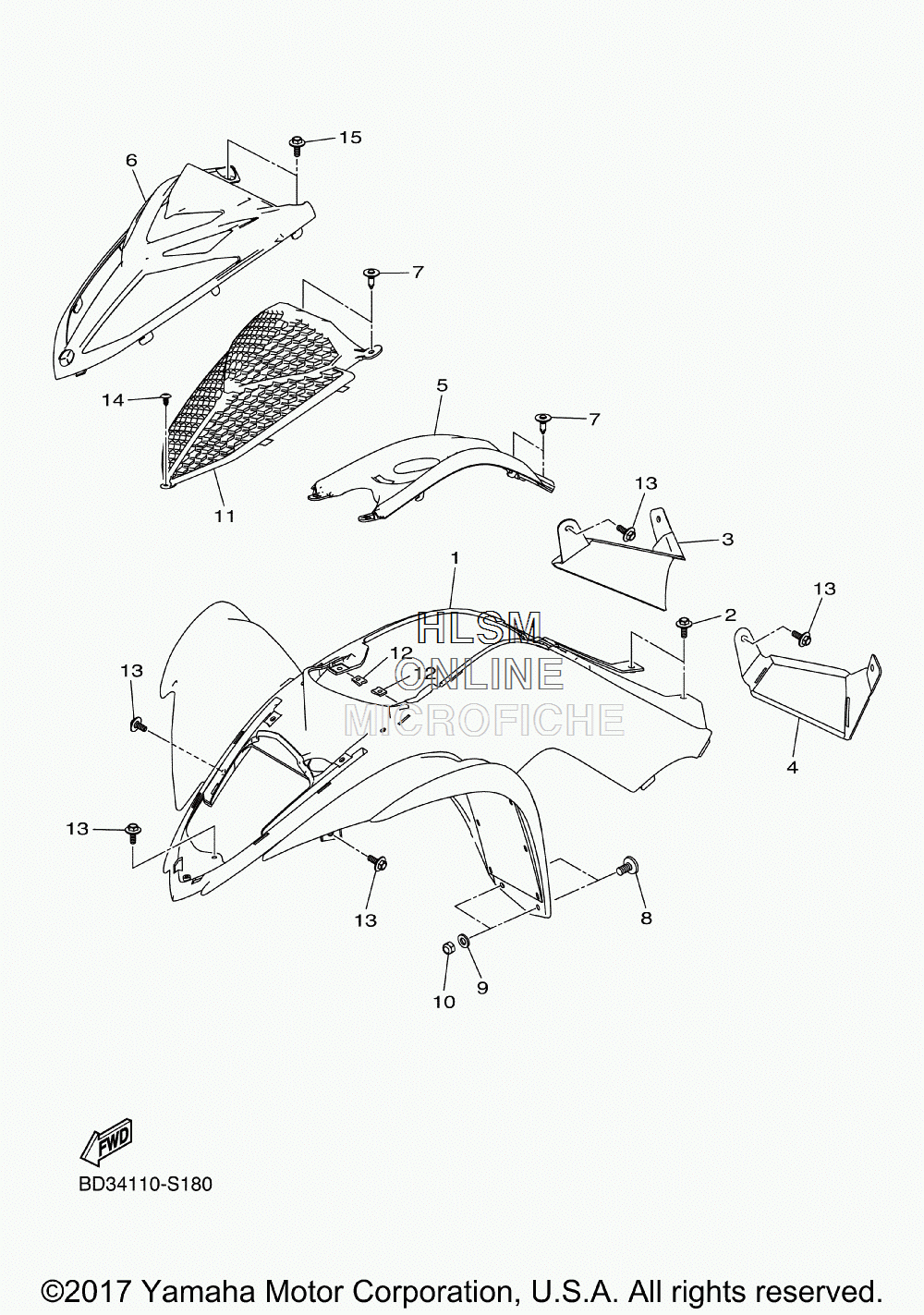

FENDER - FRONT для Yamaha RAPTOR 90 - 2018 года выпуска
-
№АртикулНазвание
-
1BD3-F1500-00-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
2BD3-F1738-00-00 BOLTBOLT
-
3BD3-F1721-00-00 COVER, SIDE 2COVER, SIDE 2
-
4BD3-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
5BD3-F171A-10-00 COVER, TOP (BWS1 - BLUISH WHITE)COVER, TOP (BWS1 - BLUISH WHITE)
-
5BD3-F171A-00-00 COVER, TOP (DPBSE - PURPLISH BLUE)COVER, TOP (DPBSE - PURPLISH BLUE)
-
6BD3-F1556-10-00 FENDER, FRONT 2 (BWS1 - BLUISH WHITE)FENDER, FRONT 2 (BWS1 - BLUISH WHITE)
-
6BD3-F1556-00-00 FENDER, FRONT 2 (DPBSE - PURPLISH BLUE)FENDER, FRONT 2 (DPBSE - PURPLISH BLUE)
-
7BD3-F1728-00-00 RIVETRIVET
-
8BD3-F11C8-00-00 SCREW 4SCREW 4
-
9BD3-F2149-10-00 WASHERWASHER
-
10BD3-F4148-10-00 NUT, SPEED 3NUT, SPEED 3
-
11BD3-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
12BD3-F4149-10-00 NUTNUT
-
13BD3-F1632-10-00 BOLT 2BOLT 2
-
14BD3-F2969-10-00 SCREW, 1SCREW, 1
-
15BD3-F3356-10-00 BOLT 2BOLT 2
