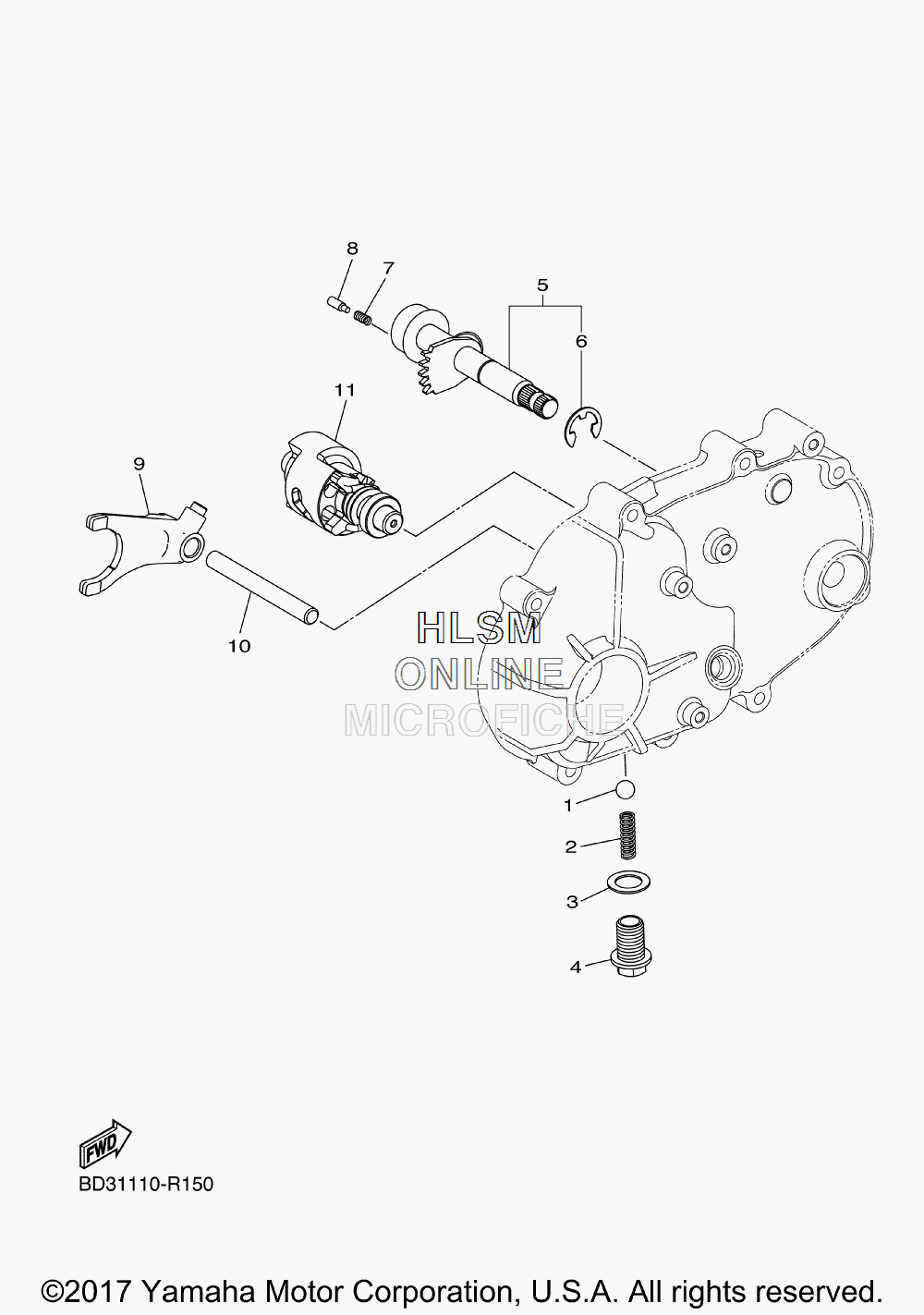

SHIFT CAM W/ FORK для Yamaha RAPTOR 90 - 2018 года выпуска
-
№АртикулНазвание
-
1BD3-E7051-00-00 BALLBALL
-
2BD3-E7479-00-00 SPRING, BALL HOLDSPRING, BALL HOLD
-
3BD3-E7058-00-00 WASHER,1WASHER,1
-
4BD3-E765G-10-00 SCREW, FIXEDSCREW, FIXED
-
5BD3-E8103-10-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
6BD3-HA906-00-00 ...CIRCLIP 1...CIRCLIP 1
-
7BD3-E8545-00-00 SPRINGSPRING
-
8BD3-E8542-00-00 POINT, NEUTRALPOINT, NEUTRAL
-
9BD3-E8511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
10BD3-E8531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
11BD3-E8540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
