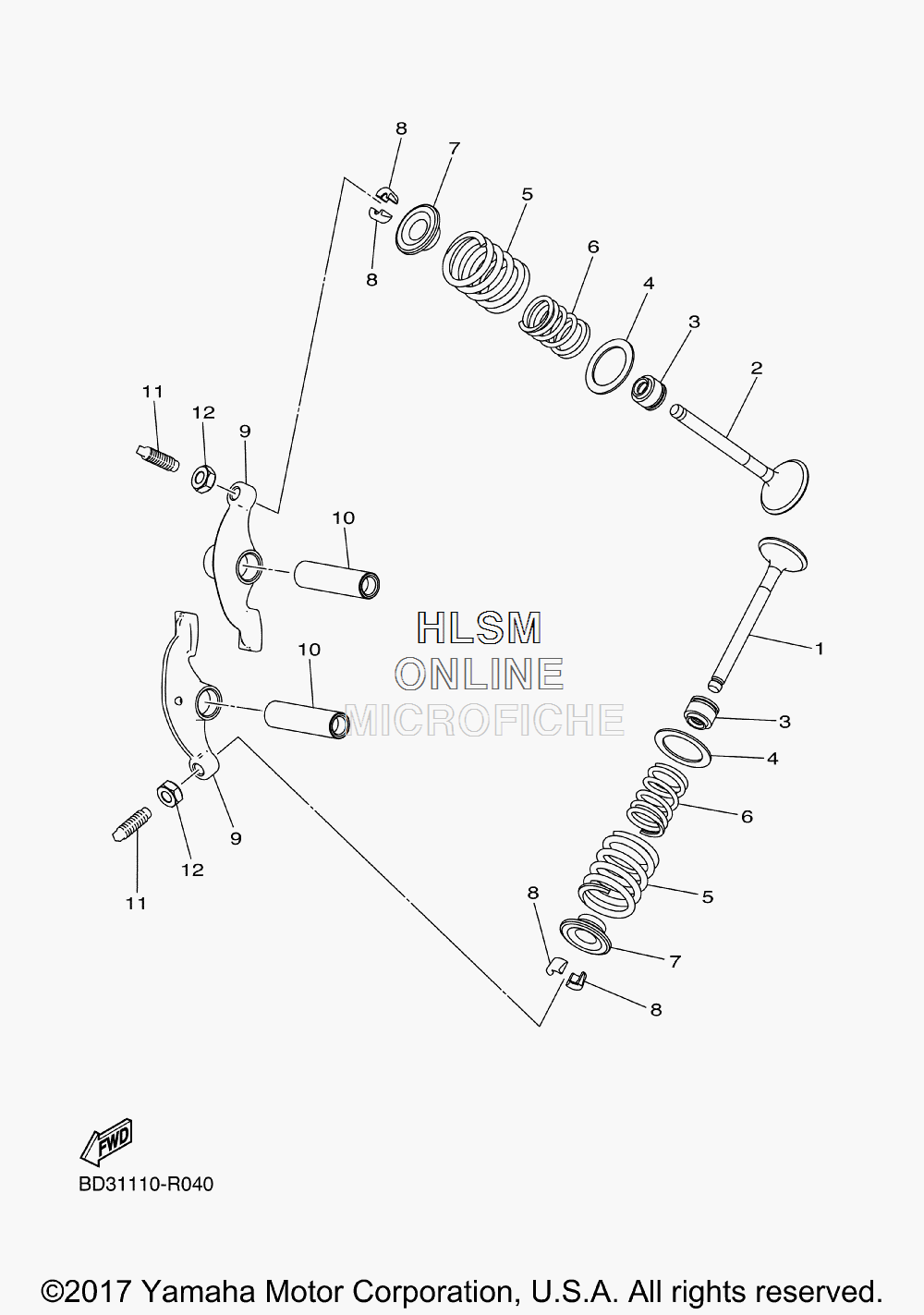

VALVE ASSY для Yamaha RAPTOR 90 - 2018 года выпуска
-
№АртикулНазвание
-
1BD3-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
2BD3-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
3BD3-E2119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
4BD3-E2116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
5BD3-E2113-00-00 SPRING, VALVE 1SPRING, VALVE 1
-
6BD3-E2114-00-00 SPRING, VALVE 2SPRING, VALVE 2
-
7BD3-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
8BD3-E2118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
9BD3-E2151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
10BD3-E2146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
11BD3-E2159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
12BD3-E2158-00-00 NUT, LOCKNUT, LOCK
