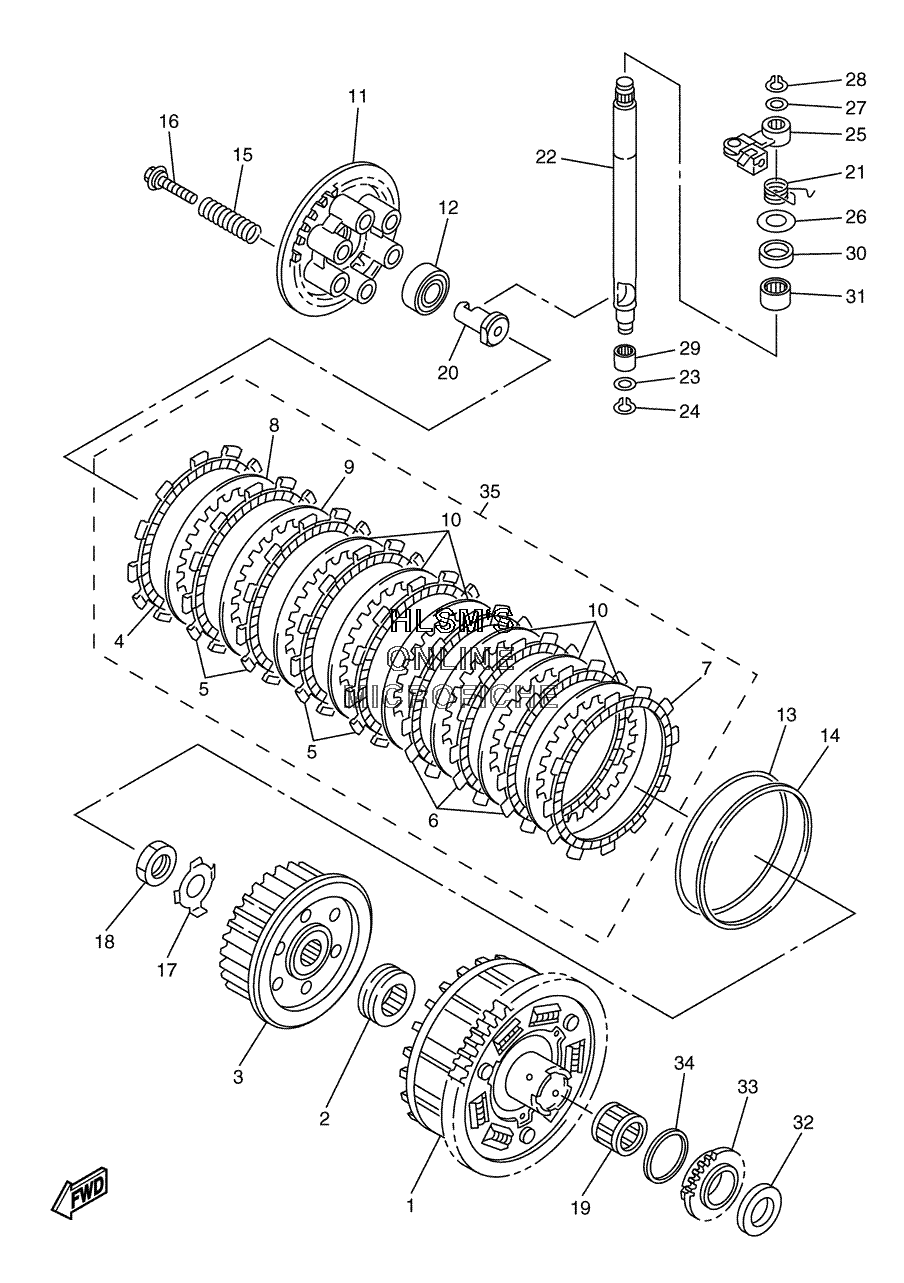

CLUTCH для Yamaha FZ1 - 2005 года выпуска
-
№АртикулНазвание
-
15LV-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
25LV-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
35LV-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
44FN-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
55LV-16321-20-00 PLATE, FRICTIONPLATE, FRICTION
-
65LV-16321-10-00 PLATE, FRICTIONPLATE, FRICTION
-
75LV-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
831A-16325-00-00 PLATE, CLUTCH 2 (T=2.0) (STD)PLATE, CLUTCH 2 (T=2.0) (STD)
-
8168-16325-00-00 PLATE, CLUTCH 2 (T=1.6) (OPT)PLATE, CLUTCH 2 (T=1.6) (OPT)
-
8168-16324-00-00 PLATE, CLUTCH 1 (T=2.3) (OPT)PLATE, CLUTCH 1 (T=2.3) (OPT)
-
931A-16325-00-00 PLATE, CLUTCH 2 (T=2.0) (STD)PLATE, CLUTCH 2 (T=2.0) (STD)
-
9168-16324-00-00 PLATE, CLUTCH 1 (T=2.3) (OPT)PLATE, CLUTCH 1 (T=2.3) (OPT)
-
1031A-16325-00-00 PLATE, CLUTCH 2 (T=2.0)PLATE, CLUTCH 2 (T=2.0)
-
115EB-16351-01-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1293306-00304-00 BEARINGBEARING
-
135LV-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
145LV-16384-00-00 PLATE, SEATPLATE, SEAT
-
1590501-230E4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1690159-06006-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1790215-20231-00 WASHER, LOCKWASHER, LOCK
-
1890170-20327-00 NUTNUT
-
1993310-228S5-00 BEARINGBEARING
-
205LV-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2190508-13007-00 SPRING, TORSIONSPRING, TORSION
-
225LV-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2392907-08600-00 WASHER, PLATEWASHER, PLATE
-
2499001-07600-00 CIRCLIPCIRCLIP
-
255LV-16340-00-00 PUSH LEVER ASSY.PUSH LEVER ASSY.
-
2690201-12163-00 WASHER, PLATEWASHER, PLATE
-
2790201-10119-00 WASHER, PLATEWASHER, PLATE
-
2899009-10400-00 CIRCLIPCIRCLIP
-
2993317-11020-00 BEARING, CYL.#17BEARING, CYL.#17
-
3093102-12106-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
3193317-11287-00 BEARINGBEARING
-
324XV-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
335PW-13354-01-00 SPROCKET, DRIVESPROCKET, DRIVE
-
3490201-43008-00 WASHER, PLATEWASHER, PLATE
-
355LV-16309-09-00 PLATE SETPLATE SET
