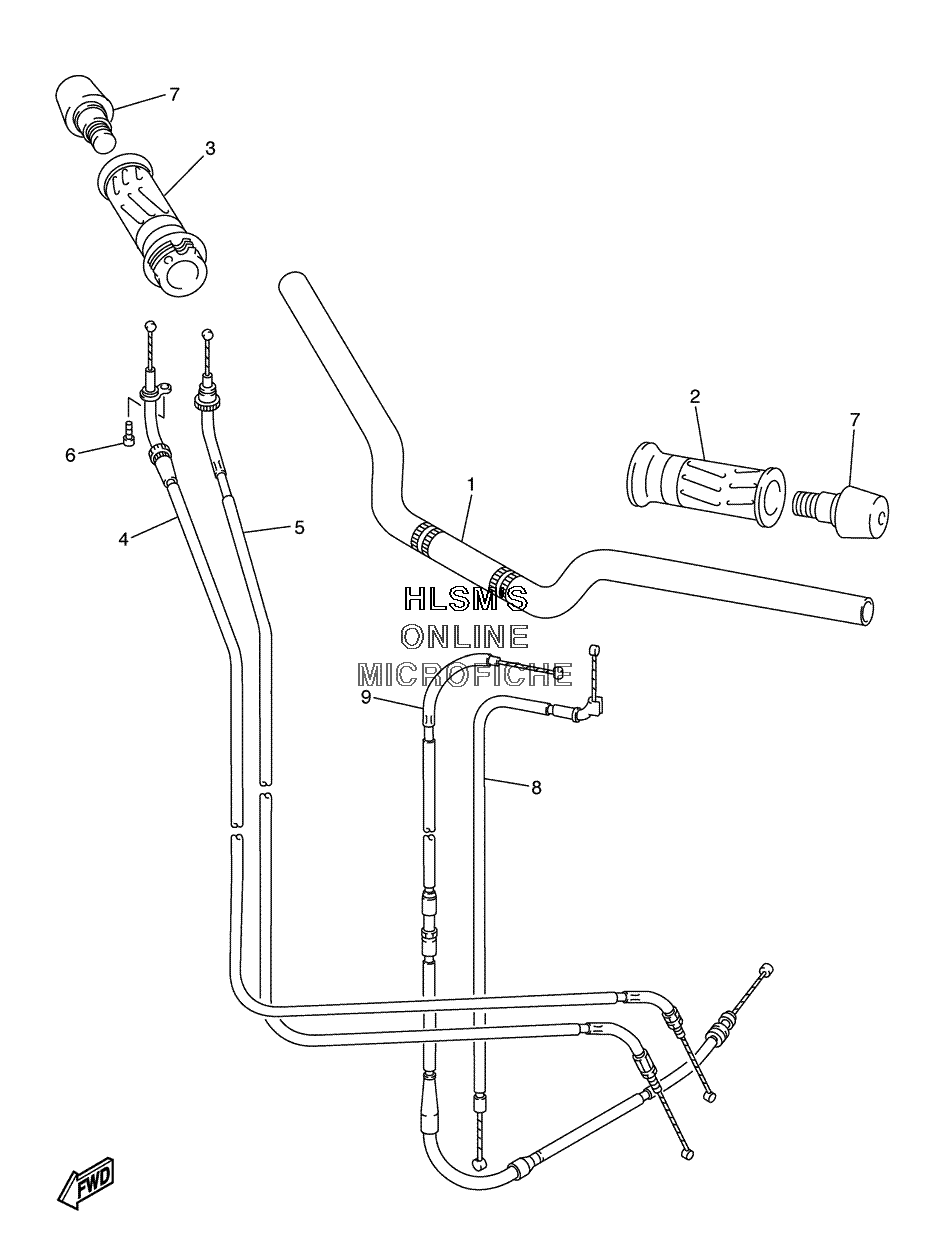

HANDLEBAR W/ CABLES для Yamaha FZ1 - 2005 года выпуска
-
№АртикулНазвание
-
15LV-26111-00-00 HANDLEBARHANDLEBAR
-
24YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
34YR-26240-02-00 GRIP ASSY.GRIP ASSY.
-
45LV-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
55LV-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
691317-05010-00 BOLTBOLT
-
751J-26246-01-00 END, GRIPEND, GRIP
-
85LV-26330-10-00 STARTER CABLE ASSY.STARTER CABLE ASSY.
-
91C2-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
