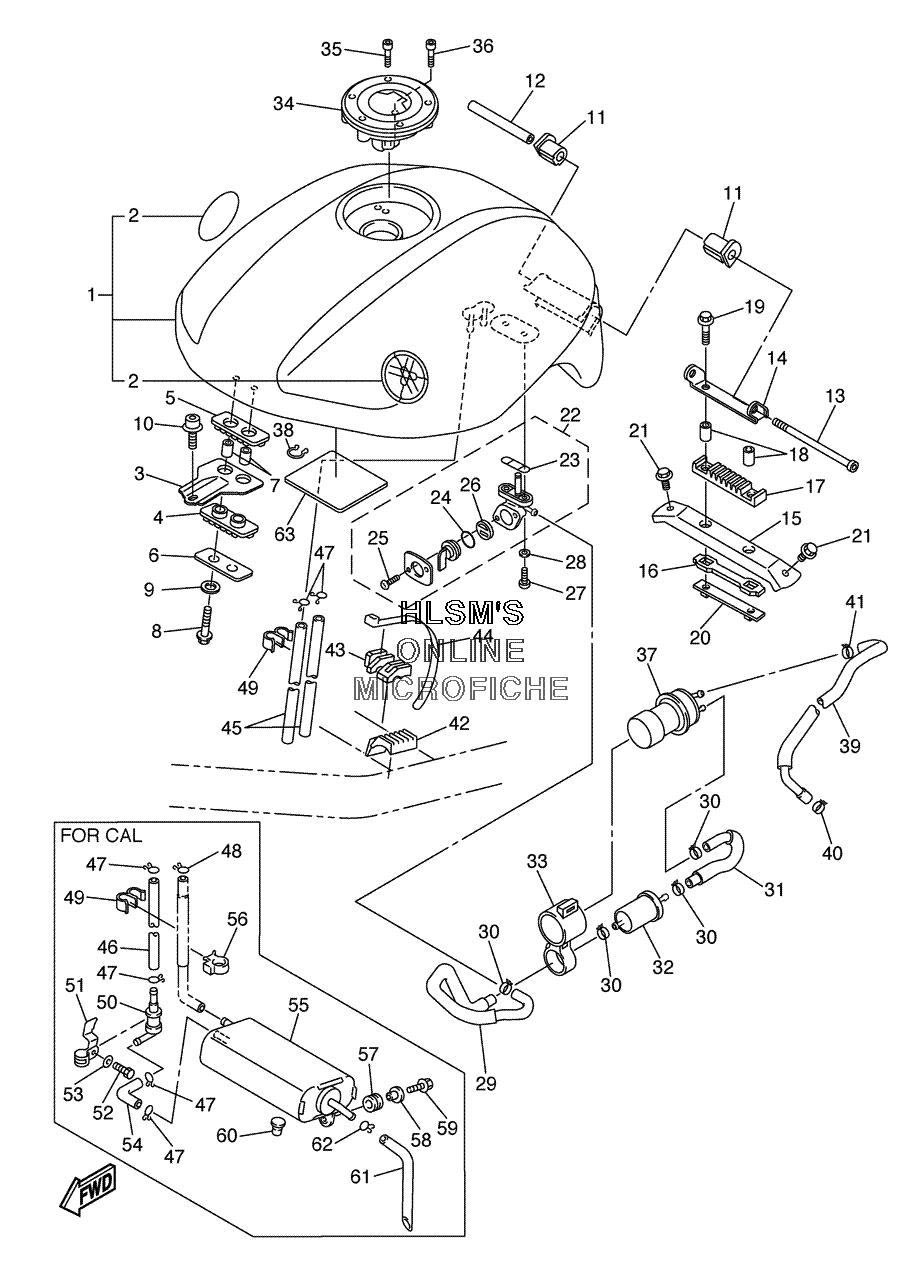

FUEL TANK для Yamaha FZ1 - 2005 года выпуска
-
№АртикулНазвание
-
15LV-Y2410-10-X5 FUEL TANK COMP. (DPBMC)FUEL TANK COMP. (DPBMC)
-
15LV-Y2410-10-X6 FUEL TANK COMP. (S3)FUEL TANK COMP. (S3)
-
25VX-2411B-00-00 ...TUNING FORK MARK...TUNING FORK MARK
-
35LV-24191-01-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
45LV-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
55LV-24183-10-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
62GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
790387-06299-00 COLLARCOLLAR
-
897027-06030-00 BOLTBOLT
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
-
1090109-08050-00 BOLTBOLT
-
114YR-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1290387-061W9-00 COLLARCOLLAR
-
1391317-06110-00 BOLTBOLT
-
145DM-21346-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
155LV-21346-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
165LV-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
175DM-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1890387-06299-00 COLLARCOLLAR
-
1995807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
205DM-21296-00-00 NUTNUT
-
2195827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
222VN-24500-02-00 FUEL COCK ASSY. 1FUEL COCK ASSY. 1
-
234X8-24512-00-00 ...O-RING...O-RING
-
243AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
2598507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
263AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
2790149-06011-00 SCREWSCREW
-
2890202-05193-00 WASHER, PLATEWASHER, PLATE
-
295LV-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3090467-12124-00 CLIPCLIP
-
315LV-24312-00-00 PIPE 2PIPE 2
-
321FK-24560-10-00 FILTER ASSY.FILTER ASSY.
-
335LV-24398-00-00 BAND 1BAND 1
-
345JJ-24602-00-00 CAP ASSY.CAP ASSY.
-
3590110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3691317-05010-00 BOLTBOLT
-
374SV-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
3890464-44109-00 CLAMPCLAMP
-
395LV-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
4090467-13114-00 CLIP, SCISSORCLIP, SCISSOR
-
4190467-12124-00 CLIPCLIP
-
425LV-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
435LV-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
441UA-82591-00-00 BANDBAND
-
4590445-10021-00 HOSEHOSE
-
4690445-11025-00 HOSEHOSE
-
4790467-09006-00 CLIP, SCISSOR (EXCEPT CALIF.)CLIP, SCISSOR (EXCEPT CALIF.)
-
4790467-10008-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
4890467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
4990464-09M31-00 CLAMPCLAMP
-
505LV-24180-00-00 ROLL OVER VALVE ASSY.ROLL OVER VALVE ASSY.
-
515LV-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
5297007-05010-00 BOLTBOLT
-
5392907-05600-00 WASHER, PLATEWASHER, PLATE
-
545LV-24314-00-00 PIPE 4PIPE 4
-
555LV-24170-00-00 CANISTER ASSY.CANISTER ASSY.
-
5690464-15192-00 CLAMPCLAMP
-
5790480-13163-00 GROMMETGROMMET
-
5890387-062L2-00 COLLARCOLLAR
-
5995817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
6090480-08608-00 GROMMETGROMMET
-
6190445-12003-00 HOSEHOSE
-
6290467-12052-00 CLIP, SCISSORCLIP, SCISSOR
-
631C2-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
