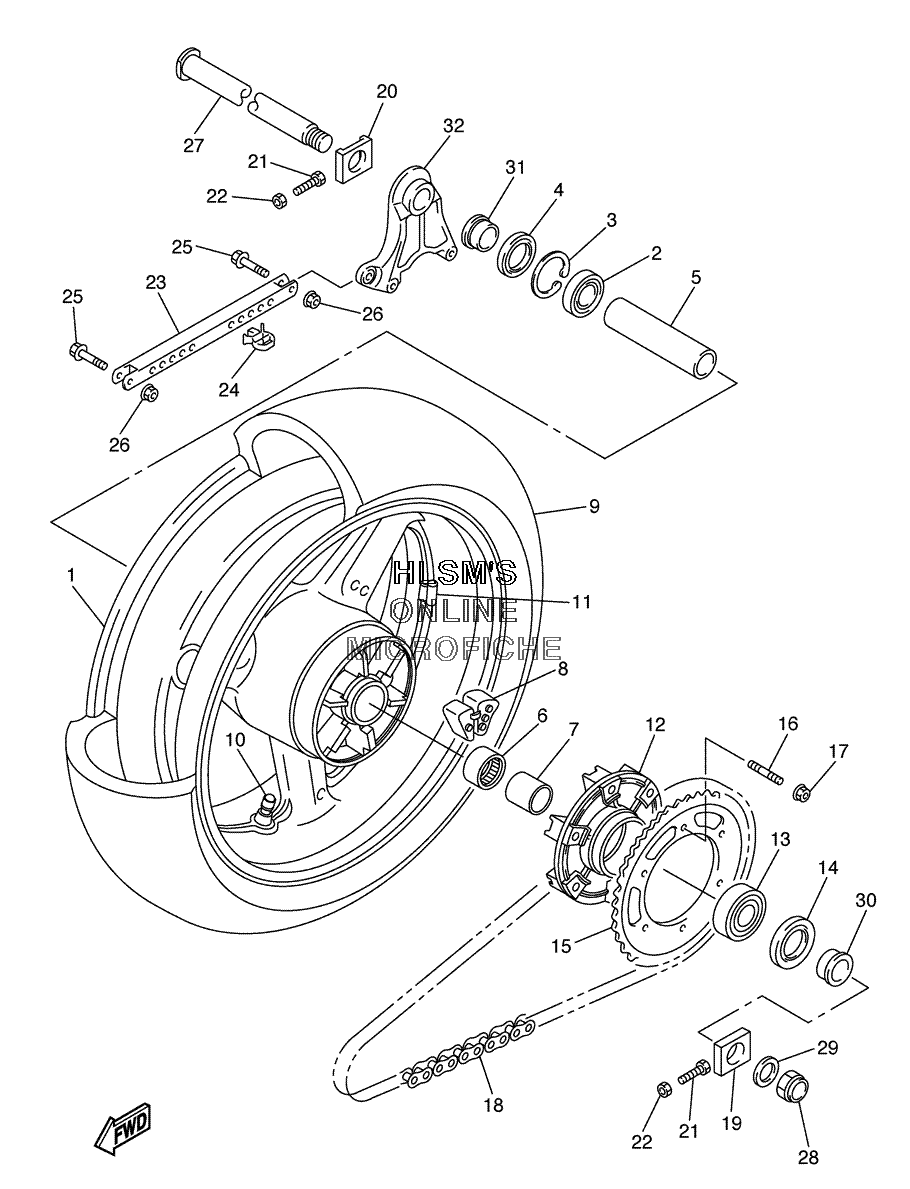

WHEEL - REAR для Yamaha FZ1 - 2005 года выпуска
-
№АртикулНазвание
-
15LV-25338-00-98 CAST WHEEL, REAR (LOW GLOSS BLK.)CAST WHEEL, REAR (LOW GLOSS BLK.)
-
293306-07806-00 BEARINGBEARING
-
399009-52500-00 CIRCLIPCIRCLIP
-
493106-35042-00 OIL SEALOIL SEAL
-
55LV-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
693317-43580-00 BEARINGBEARING
-
74XV-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
85LV-25364-00-00 DAMPERDAMPER
-
994118-17024-00 TIRE (180/55ZR17M/C 73W BT020R)TIRE (180/55ZR17M/C 73W BT020R)
-
1093900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
115MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
115MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
115MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
125JJ-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1393306-20531-00 BEARINGBEARING
-
1493106-40013-00 OIL SEALOIL SEAL
-
155LV-25444-00-00 SPROCKET, DRIVEN (44T)SPROCKET, DRIVEN (44T)
-
1690116-10485-00 BOLT, STUDBOLT, STUD
-
1795607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1894582-05116-00 CHAIN (DID50VA8-116LE)CHAIN (DID50VA8-116LE)
-
194XV-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
204XV-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
2190101-08766-00 BOLTBOLT
-
2295307-08600-00 NUTNUT
-
235LV-25371-00-00 BAR, TENSIONBAR, TENSION
-
2490464-23239-00 CLAMPCLAMP
-
2590105-083A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
274FM-25381-10-00 AXLE, WHEELAXLE, WHEEL
-
2890185-24165-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2990201-24013-00 WASHER, PLATEWASHER, PLATE
-
3090387-28001-00 COLLARCOLLAR
-
315LV-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
325LV-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
