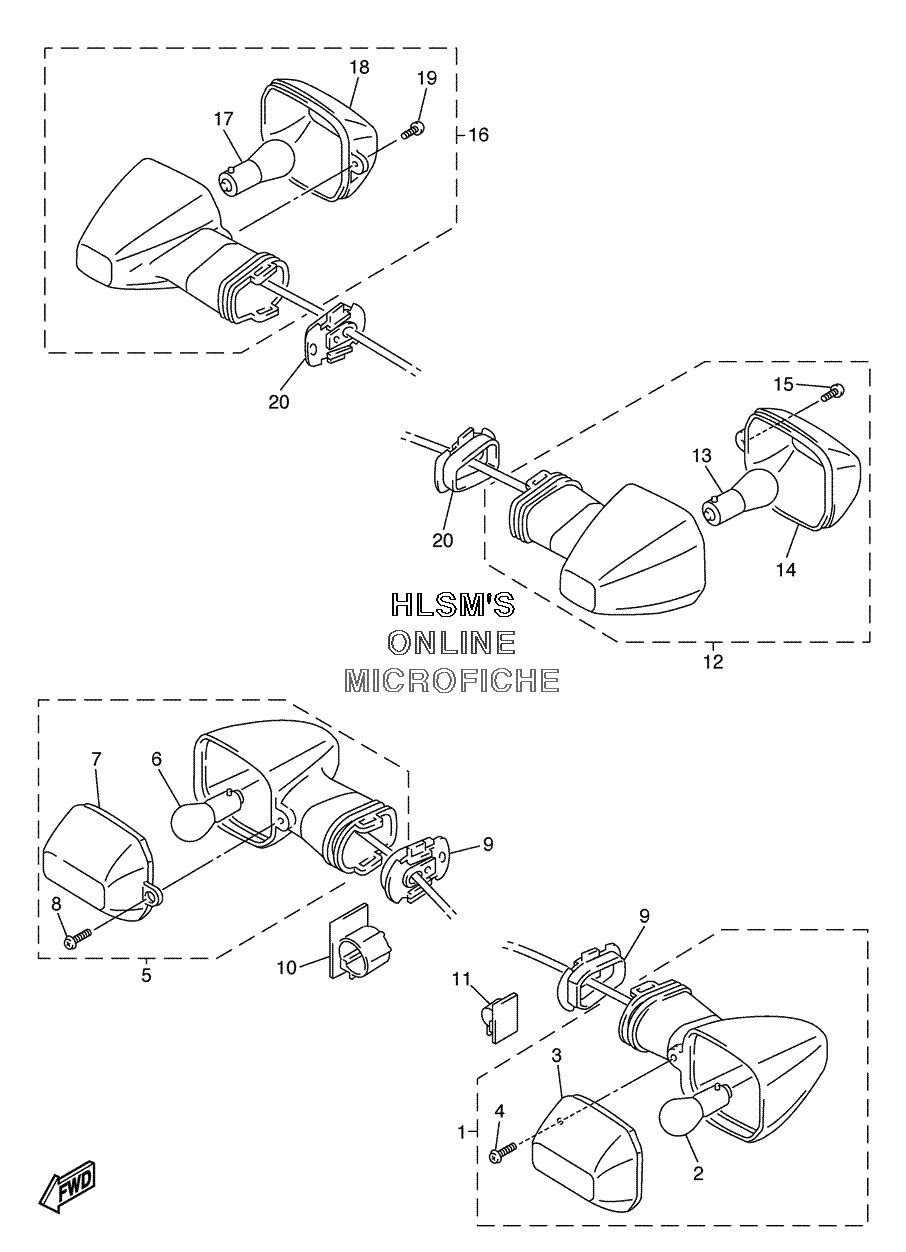

FLASHER LIGHT для Yamaha FZ1 - 2005 года выпуска
-
№АртикулНазвание
-
15LV-83310-00-00 FRONT FLASHER LIGHT ASSY. 1FRONT FLASHER LIGHT ASSY. 1
-
2256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
34JH-83332-10-00 ...LENS, FLASHER...LENS, FLASHER
-
497702-40610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
55LV-83320-00-00 FRONT FLASHER LIGHT ASSY. 2FRONT FLASHER LIGHT ASSY. 2
-
6256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
74JH-83342-10-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
897702-40610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
95DM-8331L-00-00 PLATE, STOPPERPLATE, STOPPER
-
1090464-20003-00 CLAMPCLAMP
-
1190464-62085-00 CLAMPCLAMP
-
125LV-83330-10-00 REAR FLASHER LIGHT ASSY. 1REAR FLASHER LIGHT ASSY. 1
-
13256-83311-70-00 ...BULB (12V-27W 1156)...BULB (12V-27W 1156)
-
144JH-83342-10-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
1597702-40610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
165LV-83340-10-00 REAR FLASHER LIGHT ASSY. 2REAR FLASHER LIGHT ASSY. 2
-
17256-83311-70-00 ...BULB (12V-27W 1156)...BULB (12V-27W 1156)
-
184JH-83332-10-00 ...LENS, FLASHER...LENS, FLASHER
-
1997702-40610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
205DM-8331L-00-00 PLATE, STOPPERPLATE, STOPPER
