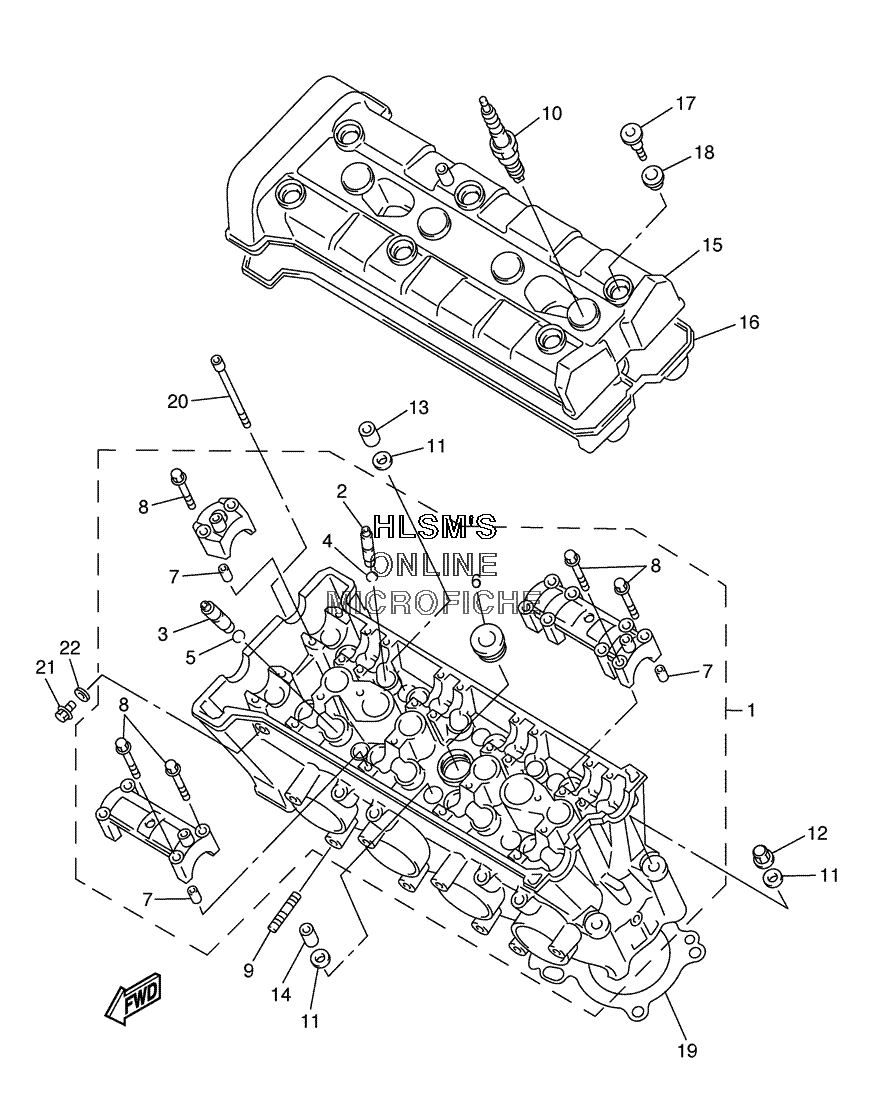

CYLINDER HEAD для Yamaha FZ1 - 2005 года выпуска
-
№АртикулНазвание
-
15LV-11101-11-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
23TJ-11133-10-00 ...GUIDE, INTK VLV 1 O/S...GUIDE, INTK VLV 1 O/S
-
31WG-11133-11-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
493440-07149-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
593440-10153-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
690340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
890105-06026-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
995617-08625-00 BOLT, STUDBOLT, STUD
-
1094701-00318-00 PLUG, SPARK (NGK R CR9E) (OPT)PLUG, SPARK (NGK R CR9E) (OPT)
-
1190201-10013-00 WASHER, PLATEWASHER, PLATE
-
1290176-10075-00 NUT, CROWNNUT, CROWN
-
1390179-10006-00 NUTNUT
-
1490179-10414-00 NUTNUT
-
155LV-11191-10-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
165LV-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1790109-066F0-00 BOLTBOLT
-
184KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
195LV-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2091314-06060-00 BOLTBOLT
-
2195024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-06014-00 GASKETGASKET
