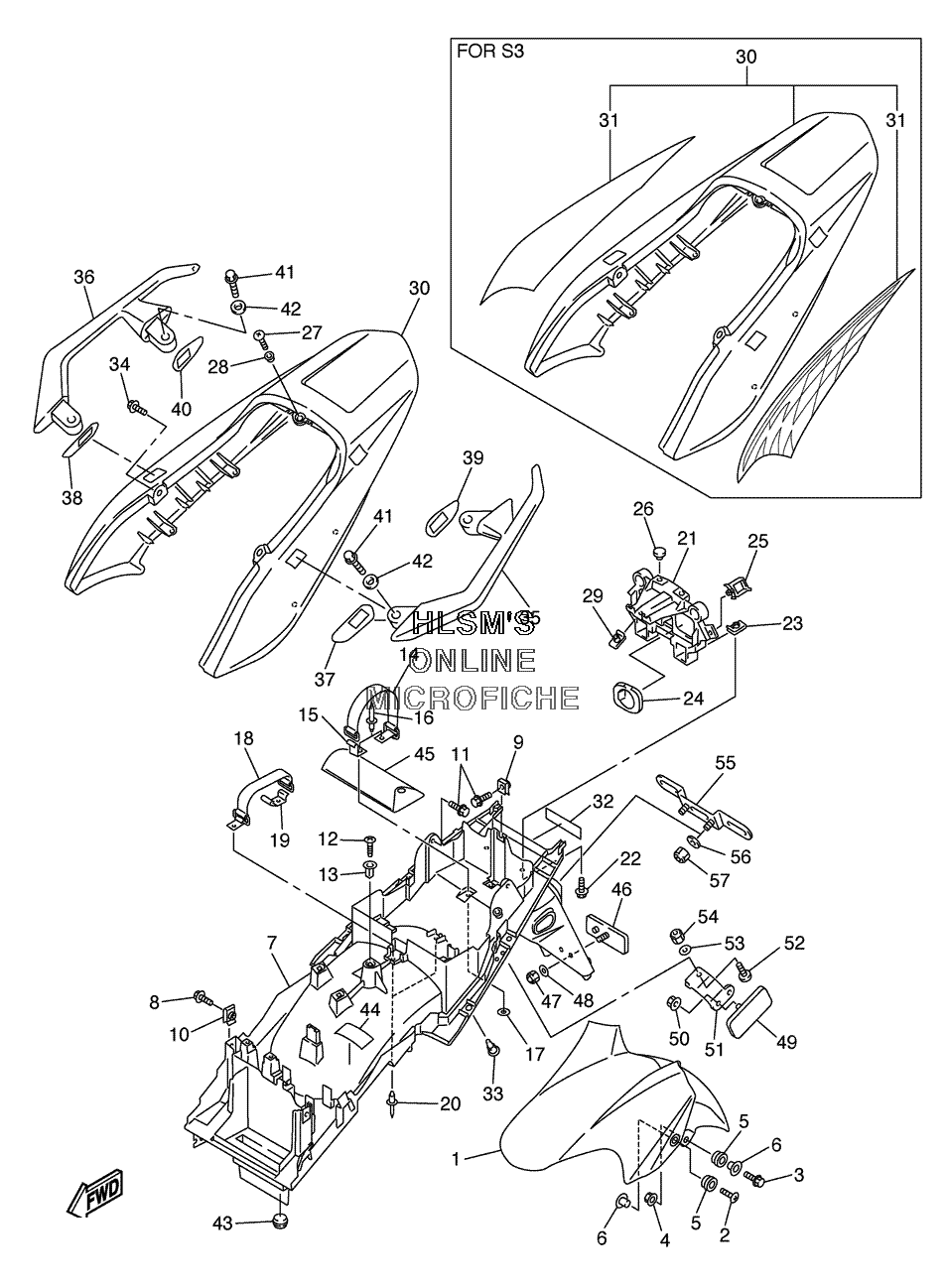

FENDER - FRONT / REAR для Yamaha FZ1 - 2005 года выпуска
-
№АртикулНазвание
-
15LV-21511-00-P0 FENDER, FRONT (DPBMC)FENDER, FRONT (DPBMC)
-
15LV-21511-00-P2 FENDER, FRONT (S3)FENDER, FRONT (S3)
-
290154-06061-00 SCREW, BINDINGSCREW, BINDING
-
395024-06025-00 BOLT, FLANGEBOLT, FLANGE
-
490179-06009-00 NUTNUT
-
590480-12072-00 GROMMETGROMMET
-
690387-065J6-00 COLLARCOLLAR
-
75LV-21611-00-00 FENDER, REARFENDER, REAR
-
890119-06205-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990183-06053-00 NUT, SPRINGNUT, SPRING
-
1090183-06023-00 NUT, SPRINGNUT, SPRING
-
1190119-06205-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1297707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
1390338-08226-00 PLUGPLUG
-
144HM-21647-00-00 BANDBAND
-
154HM-2162A-00-00 HOOKHOOK
-
1690267-40076-00 RIVET, BLINDRIVET, BLIND
-
1790201-04018-00 WASHER, PLATEWASHER, PLATE
-
184HM-82131-00-00 BAND, BATTERYBAND, BATTERY
-
195LV-2162A-00-00 HOOKHOOK
-
2090267-40076-00 RIVET, BLINDRIVET, BLIND
-
215LV-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2290119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390183-06053-00 NUT, SPRINGNUT, SPRING
-
245JJ-2172X-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
2590464-16025-00 CLAMPCLAMP
-
263L7-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
2790150-05039-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
2890387-06008-00 COLLARCOLLAR
-
2990183-05061-00 NUT, SPRINGNUT, SPRING
-
305LV-21651-00-P0 COVER, REAR FENDER (DPBMC)COVER, REAR FENDER (DPBMC)
-
305LV-Y2165-40-P2 COVER, REAR FENDER (S3)COVER, REAR FENDER (S3)
-
311C2-21660-10-00 ...GRAPHIC FOR S3...GRAPHIC FOR S3
-
3299246-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
3390269-07077-00 RIVETRIVET
-
3490109-063F1-00 BOLTBOLT
-
355LV-2474A-00-P0 ASSIST, GRIP (DPBMC)ASSIST, GRIP (DPBMC)
-
355LV-2474A-00-P2 ASSIST, GRIP (S3)ASSIST, GRIP (S3)
-
365LV-2474W-00-P0 ASSIST, GRIP 2 (DPBMC)ASSIST, GRIP 2 (DPBMC)
-
365LV-2474W-00-P2 ASSIST, GRIP 2 (S3)ASSIST, GRIP 2 (S3)
-
375LV-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
385LV-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
395LV-24723-10-00 DAMPER, SEATDAMPER, SEAT
-
405LV-24724-10-00 DAMPER, SEATDAMPER, SEAT
-
4195027-08025-00 BOLT, FLANGEBOLT, FLANGE
-
4290201-087F0-00 WASHER, PLATEWASHER, PLATE
-
4390480-14100-00 GROMMETGROMMET
-
441C2-2179V-00-00 PLATE, EPA 1 (EXCEPT CALIF.)PLATE, EPA 1 (EXCEPT CALIF.)
-
441C2-2179R-00-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
-
455LV-28100-00-00 TOOL KITTOOL KIT
-
463Y6-85130-02-00 REAR REFLECTOR ASSY.REAR REFLECTOR ASSY.
-
4795607-05200-00 NUT, U FLANGENUT, U FLANGE
-
4890201-05725-00 WASHER, PLATEWASHER, PLATE
-
493Y6-85130-02-00 REAR REFLECTOR ASSY.REAR REFLECTOR ASSY.
-
5095707-05500-00 NUT, FLANGENUT, FLANGE
-
514XV-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
5290149-04278-00 SCREWSCREW
-
5390201-04018-00 WASHER, PLATEWASHER, PLATE
-
5495607-04100-00 NUT, UNUT, U
-
555JJ-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5690201-06057-00 WASHER, PLATEWASHER, PLATE
-
5795607-06100-00 NUT, UNUT, U
