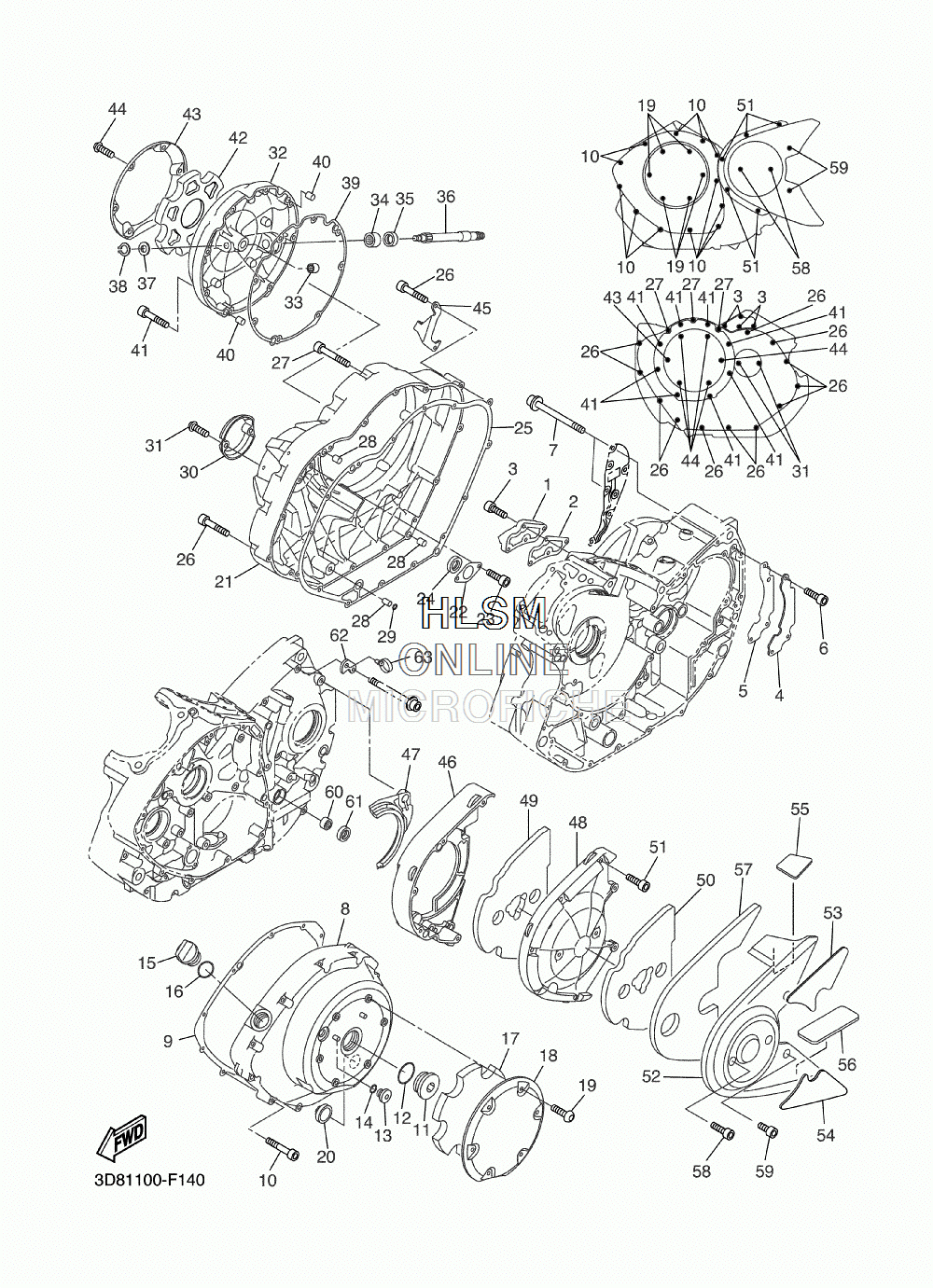

CRANKCASE COVER для Yamaha V STAR 1300 (3D81/3D82) [XVS13AW/C] - 2007 года выпуска
-
№АртикулНазвание
-
13D8-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
23D8-15454-00-00 GASKET 1GASKET 1
-
390110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
43D8-15358-00-00 SEPARATOR, OILSEPARATOR, OIL
-
53D8-15353-00-00 GASKET, DRAINGASKET, DRAIN
-
690110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790110-06270-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
83D8-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
93D8-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1091314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190340-36001-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-357A3-00 O-RINGO-RING
-
1390340-14003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1493210-14369-00 O-RINGO-RING
-
153F9-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1693210-27370-00 O-RINGO-RING
-
173D8-1542A-00-00 DAMPER 1DAMPER 1
-
183D8-15492-00-00 COVERCOVER
-
1992014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
202H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
213D8-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
223D8-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2390110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2493101-14102-00 OIL SEALOIL SEAL
-
253D8-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2691314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2791314-06065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2899530-08012-00 PIN, DOWELPIN, DOWEL
-
2993210-07135-00 O-RINGO-RING
-
303D8-15423-00-00 COVER 2COVER 2
-
3192014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
323D8-15414-00-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
3393317-11096-00 BEARINGBEARING
-
3493315-31502-00 BEARINGBEARING
-
3593102-15212-00 OIL SEALOIL SEAL
-
363D8-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
3792902-08600-00 WASHER, PLATEWASHER, PLATE
-
3899002-07600-00 CLIPCLIP
-
393D8-15453-00-00 GASKET (INCL. IN CLUTCH PLATE KIT)GASKET (INCL. IN CLUTCH PLATE KIT)
-
4099530-08012-00 PIN, DOWELPIN, DOWEL
-
4191314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
423D8-1542B-00-00 DAMPER 2DAMPER 2
-
433D8-15415-00-00 COVER, GENERATORCOVER, GENERATOR
-
4492014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
453D8-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
463D8-1541A-00-00 STAY, CRANKCASE COVER 1STAY, CRANKCASE COVER 1
-
473D8-15337-00-00 DAMPER 4DAMPER 4
-
483D8-15426-00-00 COVER, OIL PUMP 2COVER, OIL PUMP 2
-
493D8-15316-00-00 DAMPER 1DAMPER 1
-
503D8-15338-00-00 DAMPER 5DAMPER 5
-
5191314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
523D8-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
533D8-1533B-00-00 DAMPER 6DAMPER 6
-
543D8-1533C-00-00 DAMPER 7DAMPER 7
-
553D8-1533D-00-00 DAMPER 8DAMPER 8
-
563D8-1533E-00-00 DAMPER 9DAMPER 9
-
573D8-15326-00-00 DAMPER 2DAMPER 2
-
5891314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5991314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6093317-11287-00 BEARINGBEARING
-
6193102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
623D8-15544-00-00 STAY 1STAY 1
-
6390464-16006-00 CLAMPCLAMP
