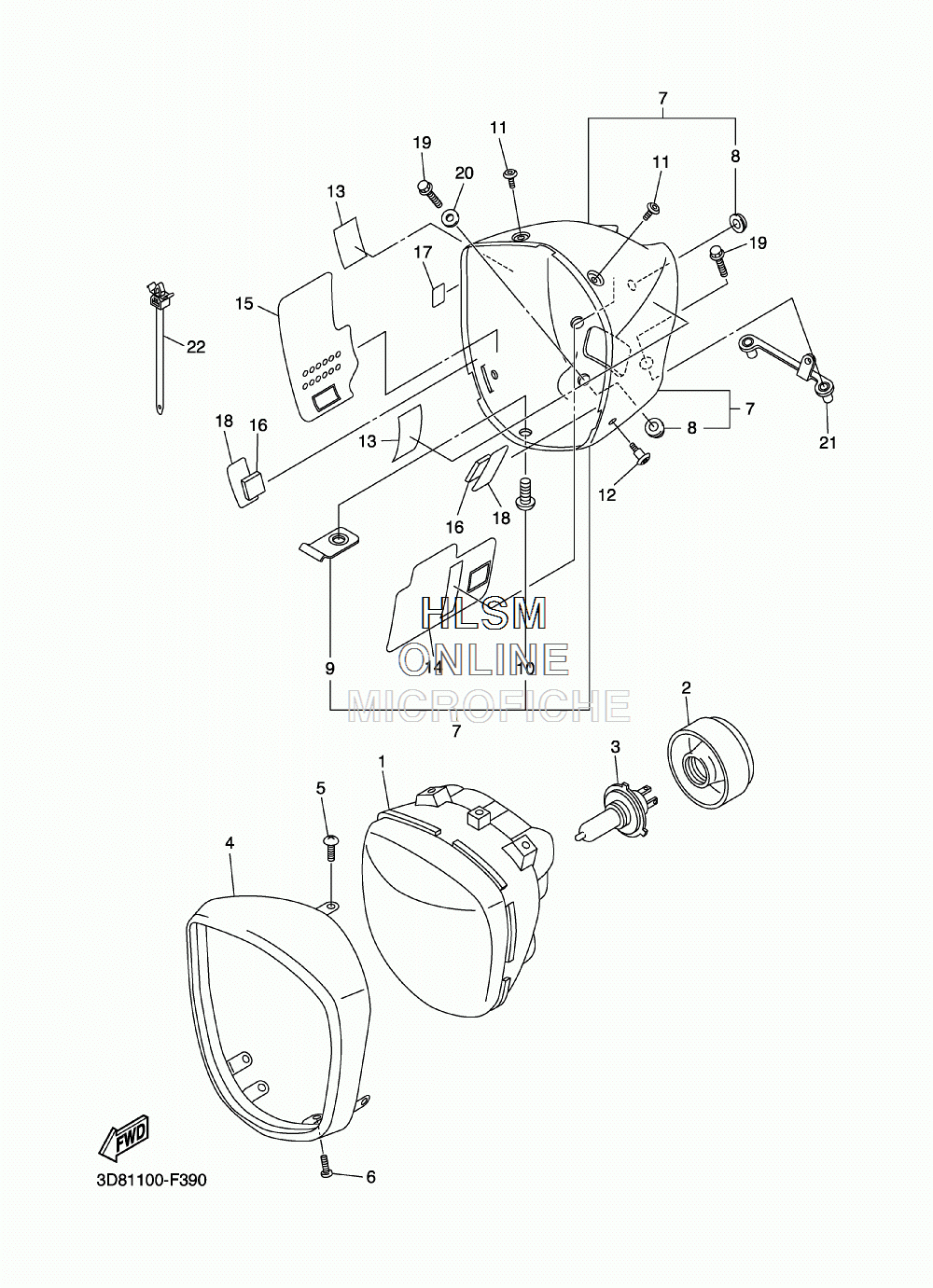

HEADLIGHT для Yamaha V STAR 1300 (3D81/3D82) [XVS13AW/C] - 2007 года выпуска
-
№АртикулНазвание
-
13D8-84320-00-00 LENS ASSYLENS ASSY
-
25JW-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
35V2-84314-00-XX BULB (12V 60/55W HALOGEN) (H4)BULB (12V 60/55W HALOGEN) (H4)
-
43D8-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
598502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
697702-40612-00 SCREW, TAPPINGSCREW, TAPPING
-
73D8-84330-00-P1 BODY ASSY (OPT) (FOR DPBML)BODY ASSY (OPT) (FOR DPBML)
-
73D8-84330-00-P2 BODY ASSY (OPT) (FOR DRMK)BODY ASSY (OPT) (FOR DRMK)
-
73D8-84330-00-P0 BODY ASSY (OPT) (FOR SMX)BODY ASSY (OPT) (FOR SMX)
-
842X-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
93D8-8431T-00-00 ...STAY, 2...STAY, 2
-
103D8-84526-00-00 ...SCREW...SCREW
-
1190111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290111-05020-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
133SP-21732-00-00 SEAL 1SEAL 1
-
143D8-8411T-00-00 HOLDER, 1HOLDER, 1
-
153D8-8411U-00-00 HOLDER, 2HOLDER, 2
-
163D8-84345-00-00 DAMPER, HEADLIGHTDAMPER, HEADLIGHT
-
173MA-27491-00-00 PROTECTORPROTECTOR
-
183D8-21575-00-00 SEAL 1SEAL 1
-
1995022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2090387-06175-00 COLLARCOLLAR
-
213D8-84387-00-00 HOLDERHOLDER
-
2290464-12036-00 CLAMPCLAMP
