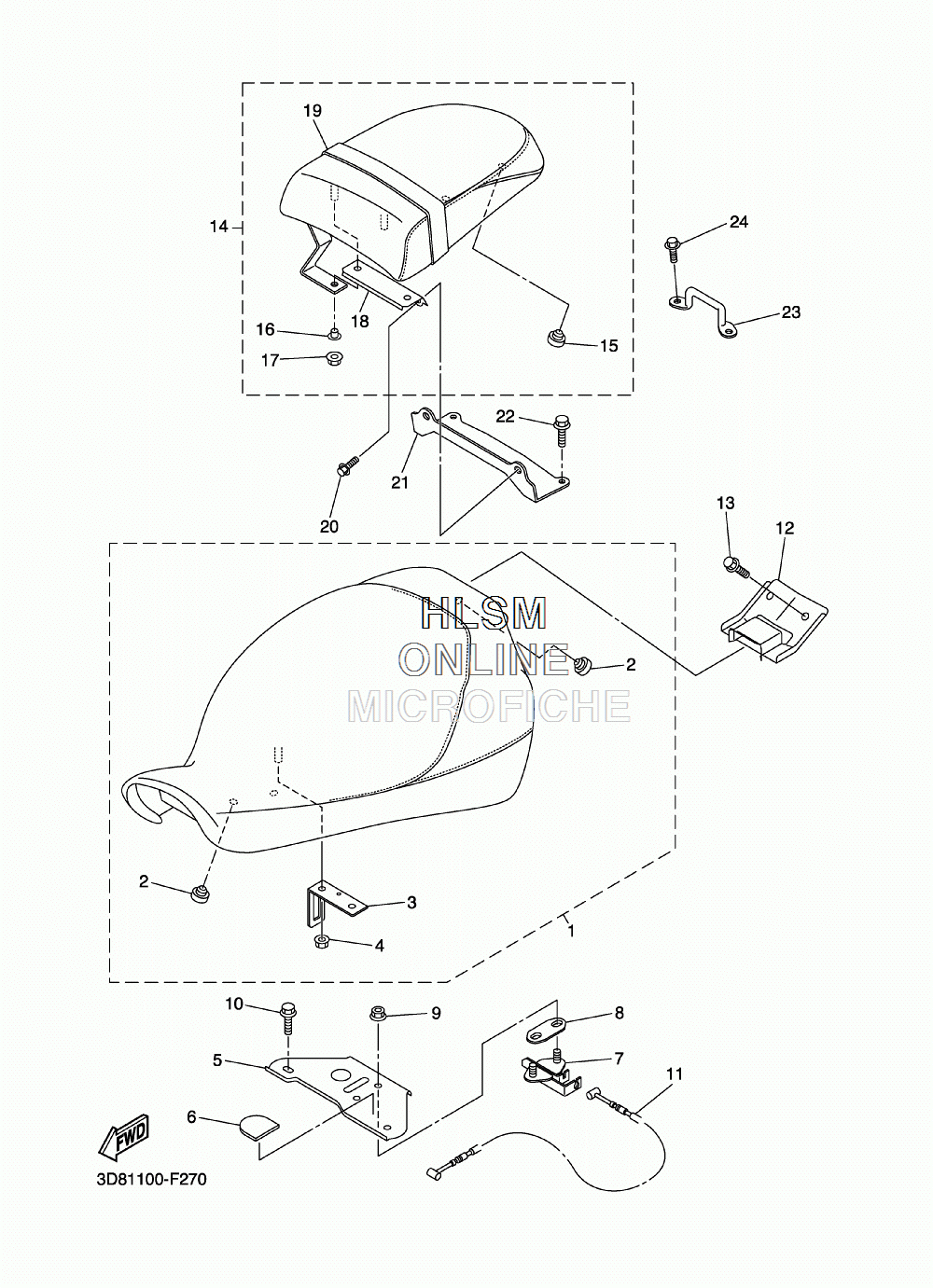

SEAT для Yamaha V STAR 1300 (3D81/3D82) [XVS13AW/C] - 2007 года выпуска
-
№АртикулНазвание
-
13D8-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
222W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
34NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
495602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
53D8-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
65PX-21735-00-00 SEAL 2SEAL 2
-
74BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
84BP-24792-00-00 PLATEPLATE
-
995702-06500-00 NUT, FLANGENUT, FLANGE
-
1095822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
115PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
123D8-2475N-00-00 BRACKETBRACKET
-
1395022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
143D8-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
1522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
161D7-2471N-00-00 ...COLLAR 1 (NOT AVAILABLE SEPARATELY)...COLLAR 1 (NOT AVAILABLE SEPARATELY)
-
1795602-06200-00 ...NUT, SELF-LOCKING (NOT AVAILABLE SEPARATELY)...NUT, SELF-LOCKING (NOT AVAILABLE SEPARATELY)
-
181D7-2475J-00-00 ...BRACKET, SEAT LEVER 2 (NOT AVAILABLE SEPARATELY)...BRACKET, SEAT LEVER 2 (NOT AVAILABLE SEPARATELY)
-
193D8-24734-00-00 ...BAND, SEAT (NOT AVAILABLE SEPARATELY)...BAND, SEAT (NOT AVAILABLE SEPARATELY)
-
2095022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
211D7-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
2295022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
233D8-2475R-00-00 BRACKET 6BRACKET 6
-
2495022-08012-00 BOLT, FLANGEBOLT, FLANGE
