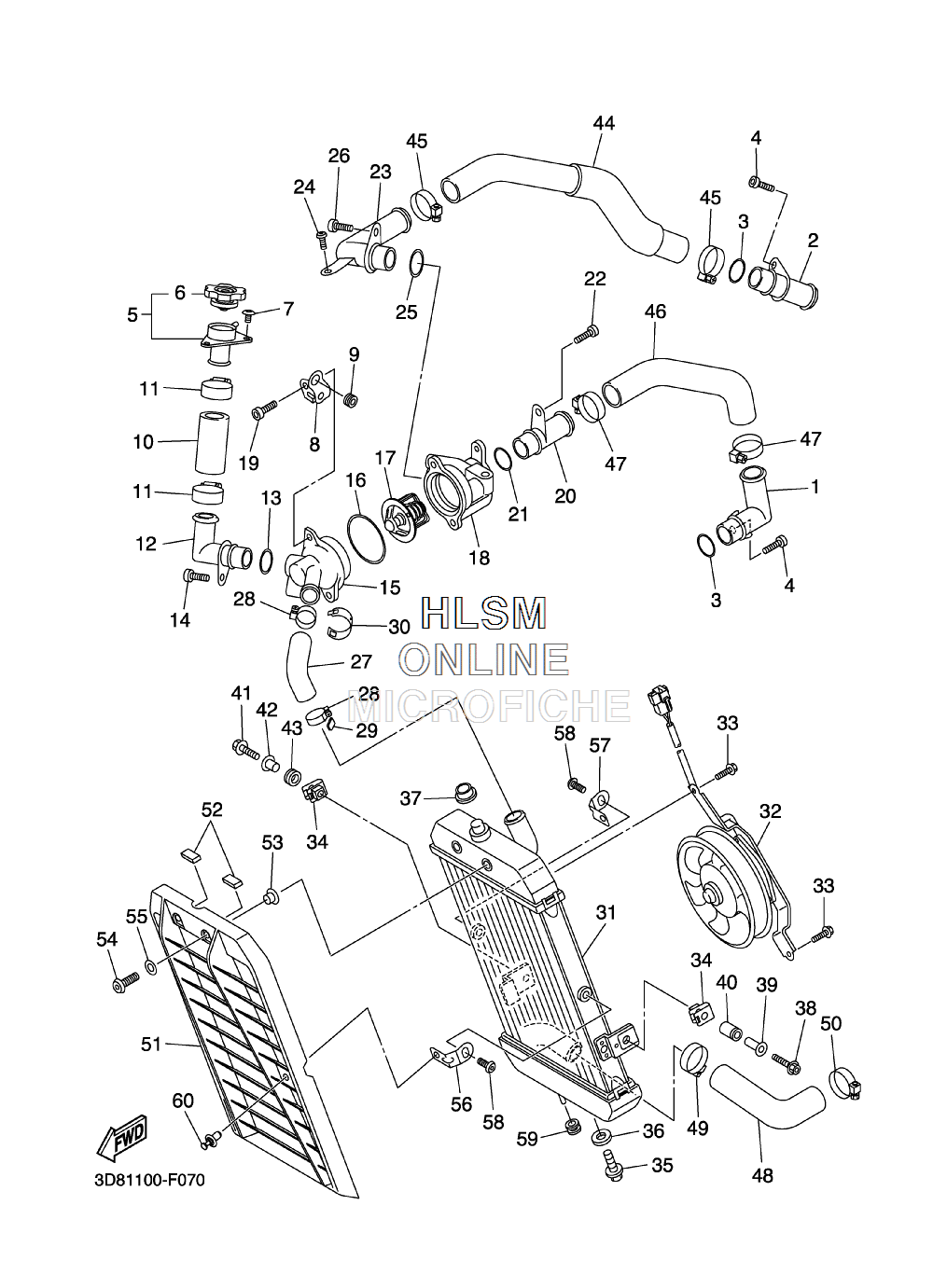

RADIATOR для Yamaha V STAR 1300 (3D81/3D82) [XVS13AW/C] - 2007 года выпуска
-
№АртикулНазвание
-
13D8-12481-00-00 PIPE 1PIPE 1
-
23D8-12482-00-00 PIPE 2PIPE 2
-
393210-18417-00 O-RINGO-RING
-
491312-06014-00 BOLTBOLT
-
54NK-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
63XP-12462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
790111-06083-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
83D8-1244E-00-00 BRACKET 1BRACKET 1
-
990480-10517-00 GROMMETGROMMET
-
103D8-12589-00-00 HOSE 6HOSE 6
-
1190450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
123D8-12484-00-00 PIPE 4PIPE 4
-
1393210-18417-00 O-RINGO-RING
-
1490110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
153D8-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1693210-49046-00 O-RINGO-RING
-
171AE-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
183D8-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
1991312-06020-00 BOLTBOLT
-
203D8-12485-00-00 PIPE 5PIPE 5
-
2193210-18417-00 O-RINGO-RING
-
2290110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
233D8-12476-00-00 PIPE 6PIPE 6
-
2492012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2593210-18417-00 O-RINGO-RING
-
2690110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
273D8-12579-00-00 HOSE 4HOSE 4
-
2890450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
294NX-25335-00-00 CAPCAP
-
305GV-1246E-00-00 COVER 2COVER 2
-
313D8-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
323D8-12405-00-00 BLOWER ASSYBLOWER ASSY
-
332D1-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
343D8-12535-00-00 PLATEPLATE
-
351AA-12561-00-00 PLUG,DRAIN COCKPLUG,DRAIN COCK
-
361AA-12435-00-00 GASKETGASKET
-
3790480-20003-00 GROMMETGROMMET
-
3890110-06261-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3990387-0614X-00 COLLARCOLLAR
-
404XY-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
4190110-06263-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4290387-065G0-00 COLLARCOLLAR
-
4390480-19283-00 GROMMETGROMMET
-
443D8-12576-00-00 HOSE 1HOSE 1
-
4590450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
463D8-12578-00-00 HOSE 3HOSE 3
-
4790450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
483D8-12588-00-00 HOSE 5HOSE 5
-
4990450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5090450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
513D8-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
523D8-21541-00-00 DAMPER 1DAMPER 1
-
5390387-08076-00 COLLARCOLLAR
-
5490111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5590201-06096-00 WASHER, PLATEWASHER, PLATE
-
563D8-2116A-00-00 STAY 1STAY 1
-
573D8-2116E-00-00 COVER 2COVER 2
-
5890111-06016-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5990480-08003-00 GROMMETGROMMET
-
6090269-07077-00 RIVETRIVET
