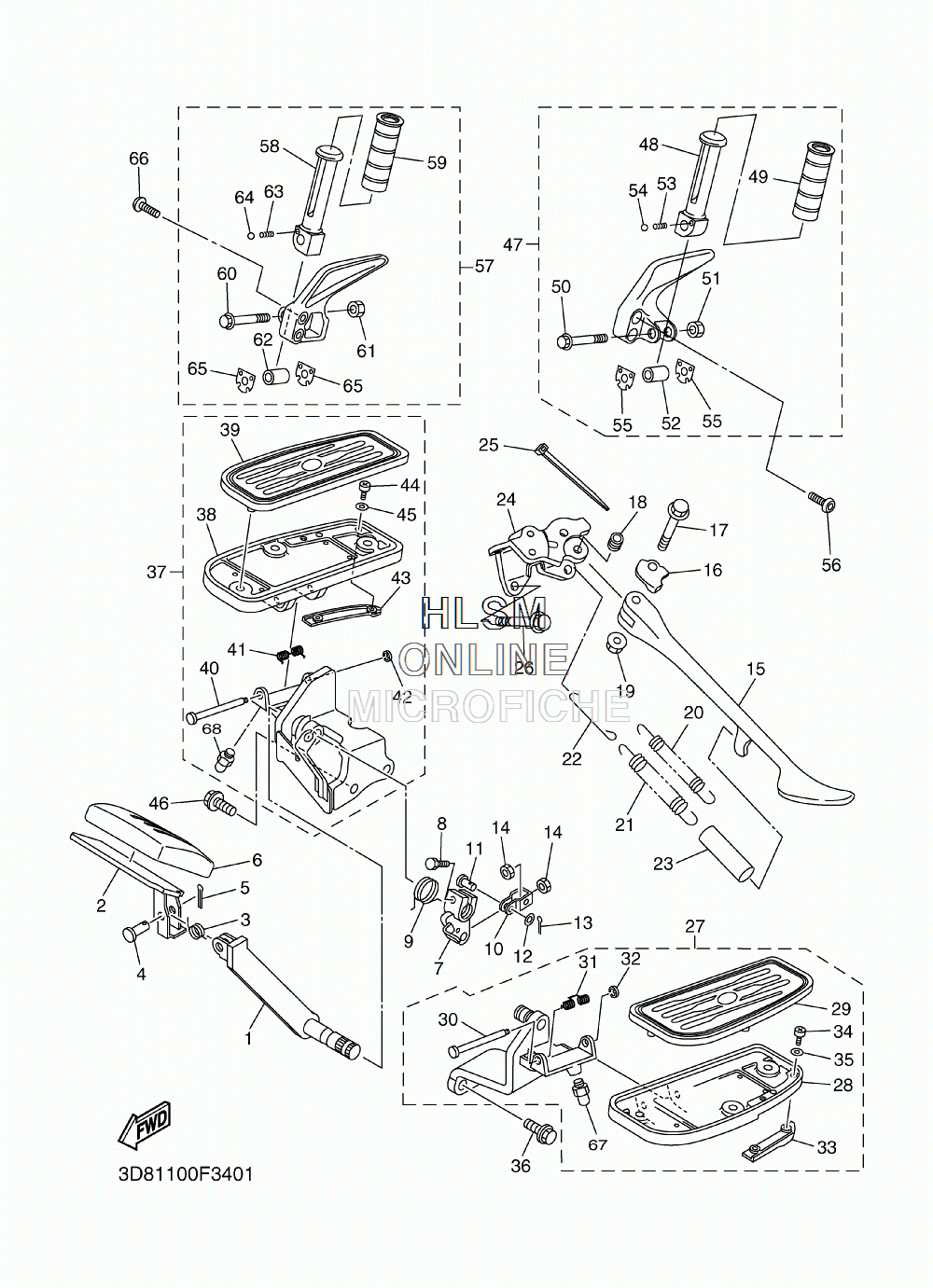

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR 1300 (3D81/3D82) [XVS13AW/C] - 2007 года выпуска
-
№АртикулНазвание
-
15KS-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-18023-00 SPRING, TORSIONSPRING, TORSION
-
491702-06022-00 PIN, CLEVISPIN, CLEVIS
-
591402-20012-00 PIN, COTTERPIN, COTTER
-
61D7-27285-00-00 CAPCAP
-
75EL-27262-00-00 LEVERLEVER
-
897004-06020-00 BOLTBOLT
-
93D8-27216-00-00 SPRING, RETURNSPRING, RETURN
-
104BP-27222-01-00 JOINTJOINT
-
1190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-20012-00 PIN, COTTERPIN, COTTER
-
1495307-08700-00 NUTNUT
-
154KU-27311-13-00 STAND, SIDESTAND, SIDE
-
163D8-27322-00-00 WASHERWASHER
-
1790105-10012-00 BOLT, FLANGEBOLT, FLANGE
-
1890387-1003G-00 COLLARCOLLAR
-
1995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
2090506-23015-00 SPRING, TENSIONSPRING, TENSION
-
2190506-29006-00 SPRING, TENSIONSPRING, TENSION
-
223D8-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
2390445-16641-00 HOSE (L60)HOSE (L60)
-
243D8-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
251UA-82591-00-00 BANDBAND
-
2690105-10157-00 BOLT, FLANGEBOLT, FLANGE
-
273D8-27410-00-00 FRONT FOOTREST ASSY (LEFT) (EXCEPT CALIF) (3D81)FRONT FOOTREST ASSY (LEFT) (EXCEPT CALIF) (3D81)
-
273D8-27410-10-00 FRONT FOOTREST ASSY (LEFT) (CALIF ONLY) (3D82)FRONT FOOTREST ASSY (LEFT) (CALIF ONLY) (3D82)
-
284NK-27451-10-00 ...FOOTREST...FOOTREST
-
294XY-27413-01-00 ...COVER, FOOTREST...COVER, FOOTREST
-
303D8-27427-00-00 ...SHAFT...SHAFT
-
311D7-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
3299002-06600-00 ...CLIP...CLIP
-
334WM-27496-00-00 ...MOLE 1...MOLE 1
-
3490157-05026-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3592902-05200-00 ...WASHER...WASHER
-
3690105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
373D8-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
384NK-27461-10-00 ...FOOTREST...FOOTREST
-
394XY-27423-01-00 ...COVER, FOOTREST...COVER, FOOTREST
-
403D8-27427-00-00 ...SHAFT...SHAFT
-
411D7-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
4299002-06600-00 ...CLIP...CLIP
-
434WM-27497-00-00 ...MOLE 2...MOLE 2
-
4490157-05026-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4592902-05200-00 ...WASHER...WASHER
-
4690105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
473D8-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
481D7-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
494WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5090109-06016-00 ...BOLT...BOLT
-
5195604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
5290387-06554-00 ...COLLAR...COLLAR
-
5390501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
5493501-04011-00 ...BALL...BALL
-
551D7-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
5690111-08041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
573D8-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
581D7-27441-00-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
594WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
6090109-06016-00 ...BOLT...BOLT
-
6195604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
6290387-06554-00 ...COLLAR...COLLAR
-
6390501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
6493501-04011-00 ...BALL...BALL
-
651D7-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
6690111-08041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
675PX-27435-09-00 ...BOLT...BOLT
-
685PX-27435-09-00 ...BOLT...BOLT
