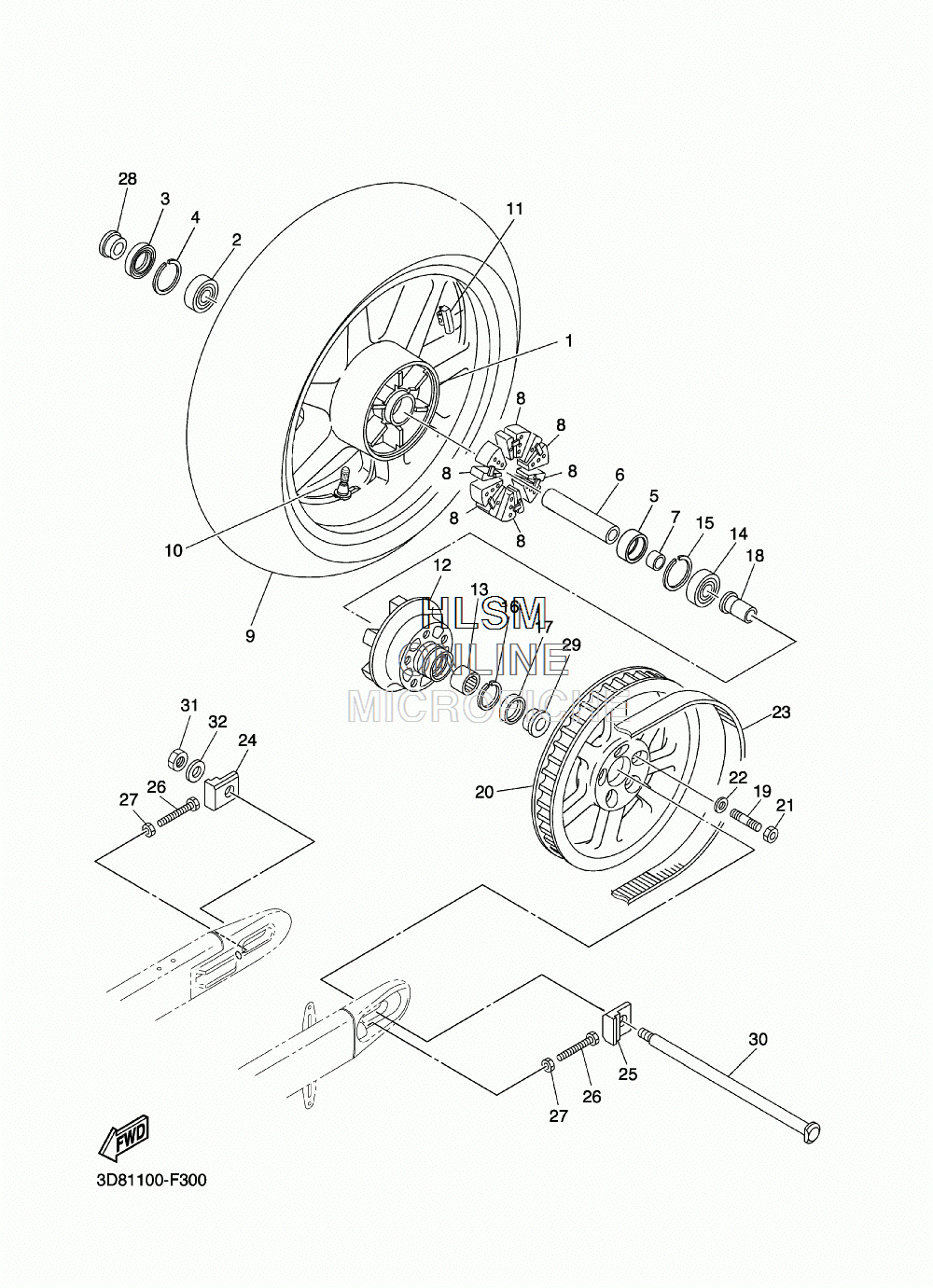

WHEEL - REAR для Yamaha V STAR 1300 (3D81/3D82) [XVS13AW/C] - 2007 года выпуска
-
№АртикулНазвание
-
13D8-25338-00-MA CAST WHEEL, REAR (TGM)CAST WHEEL, REAR (TGM)
-
293306-30437-00 BEARINGBEARING
-
393106-28001-00 OIL SEALOIL SEAL
-
499009-52500-00 CIRCLIPCIRCLIP
-
593320-32811-00 BEARINGBEARING
-
63D8-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
71D7-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
84WM-25364-00-00 DAMPERDAMPER
-
994117-16002-00 TIRE (170/70B16M/C 75H EXEDR) (OPT) (BRIDGESTONE)TIRE (170/70B16M/C 75H EXEDR) (OPT) (BRIDGESTONE)
-
994117-16001-00 TIRE (170/70B16M/C 75H K555) (OPT) (DUNLOP)TIRE (170/70B16M/C 75H K555) (OPT) (DUNLOP)
-
1093900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
115MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
115MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
115MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
123D8-25366-00-MA CLUTCH, HUB (TGM)CLUTCH, HUB (TGM)
-
1393320-32612-00 BEARINGBEARING
-
1493306-30437-00 BEARINGBEARING
-
1599009-52500-00 CIRCLIPCIRCLIP
-
1693450-35015-00 CIRCLIPCIRCLIP
-
1793106-30004-00 OIL SEALOIL SEAL
-
183D8-25376-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1995612-12630-00 BOLT, STUDBOLT, STUD
-
203D8-25470-00-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
2195614-12100-00 NUT, UNUT, U
-
2290201-12045-00 WASHER, PLATEWASHER, PLATE
-
233D8-46241-00-00 V-BELTV-BELT
-
245PX-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
255PX-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
2690101-08013-00 BOLTBOLT
-
2795302-08600-00 NUTNUT
-
2890387-20012-00 COLLARCOLLAR
-
2990387-202X9-00 COLLARCOLLAR
-
303D8-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
3190185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-185R7-00 WASHER, PLATEWASHER, PLATE
