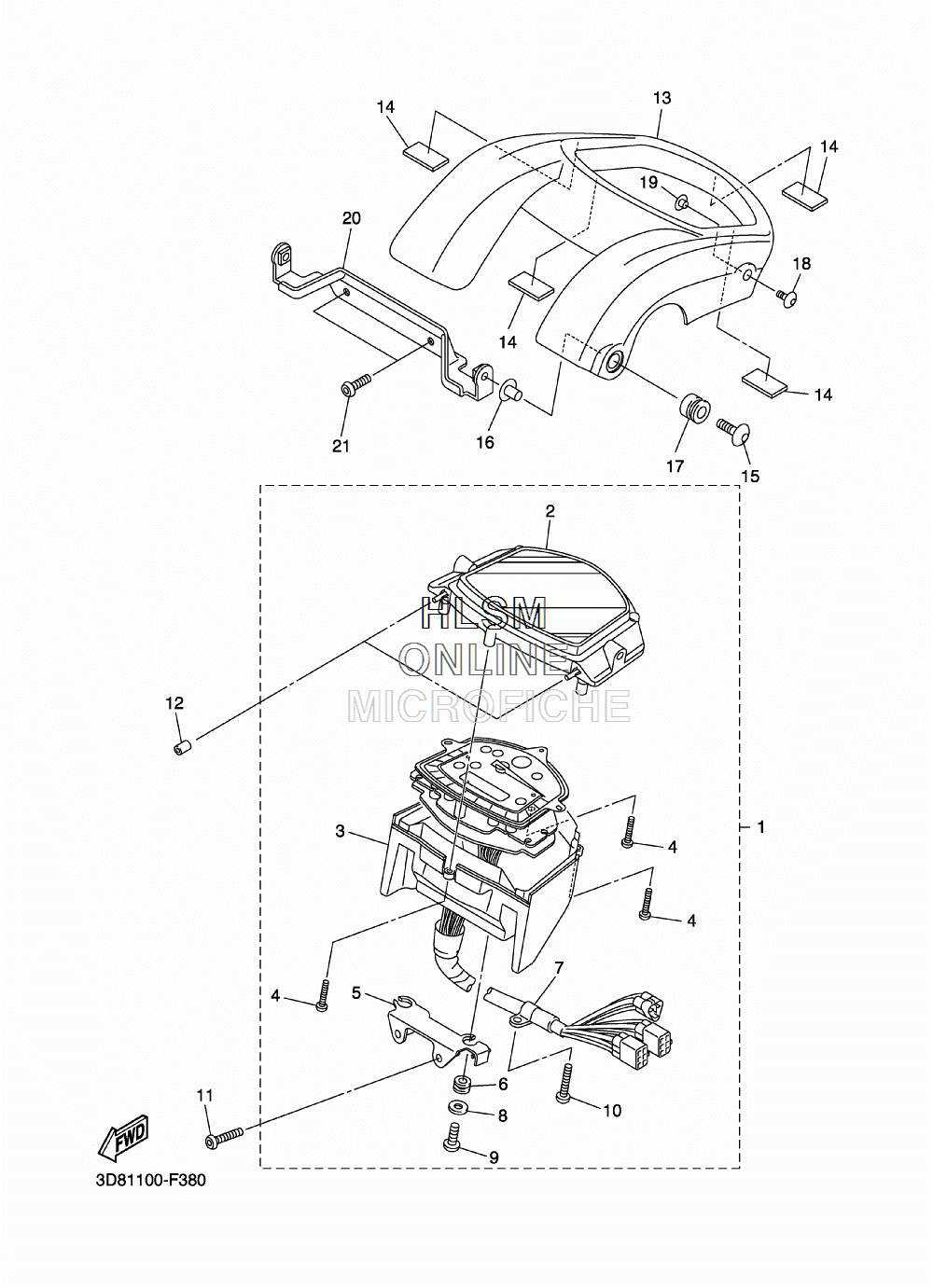

INSTRUMENT PANEL для Yamaha V STAR 1300 (3D81/3D82) [XVS13AW/C] - 2007 года выпуска
-
№АртикулНазвание
-
13D8-83500-00-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
23D8-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
33D8-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
497707-30014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
53D8-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
64XV-83513-00-00 ...DAMPER...DAMPER
-
73D8-8357E-00-00 ...CLAMP...CLAMP
-
853Y-83524-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
997707-50016-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
1097707-40014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1190111-08056-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290445-05004-00 HOSEHOSE
-
133D8-83559-00-00 COVER, METERCOVER, METER
-
143D8-83541-00-00 DAMPERDAMPER
-
1590110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690387-06162-00 COLLARCOLLAR
-
1790480-13020-00 GROMMETGROMMET
-
1890110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990387-05035-00 COLLARCOLLAR
-
203D8-8350E-00-00 BRACKETBRACKET
-
2190111-06062-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
