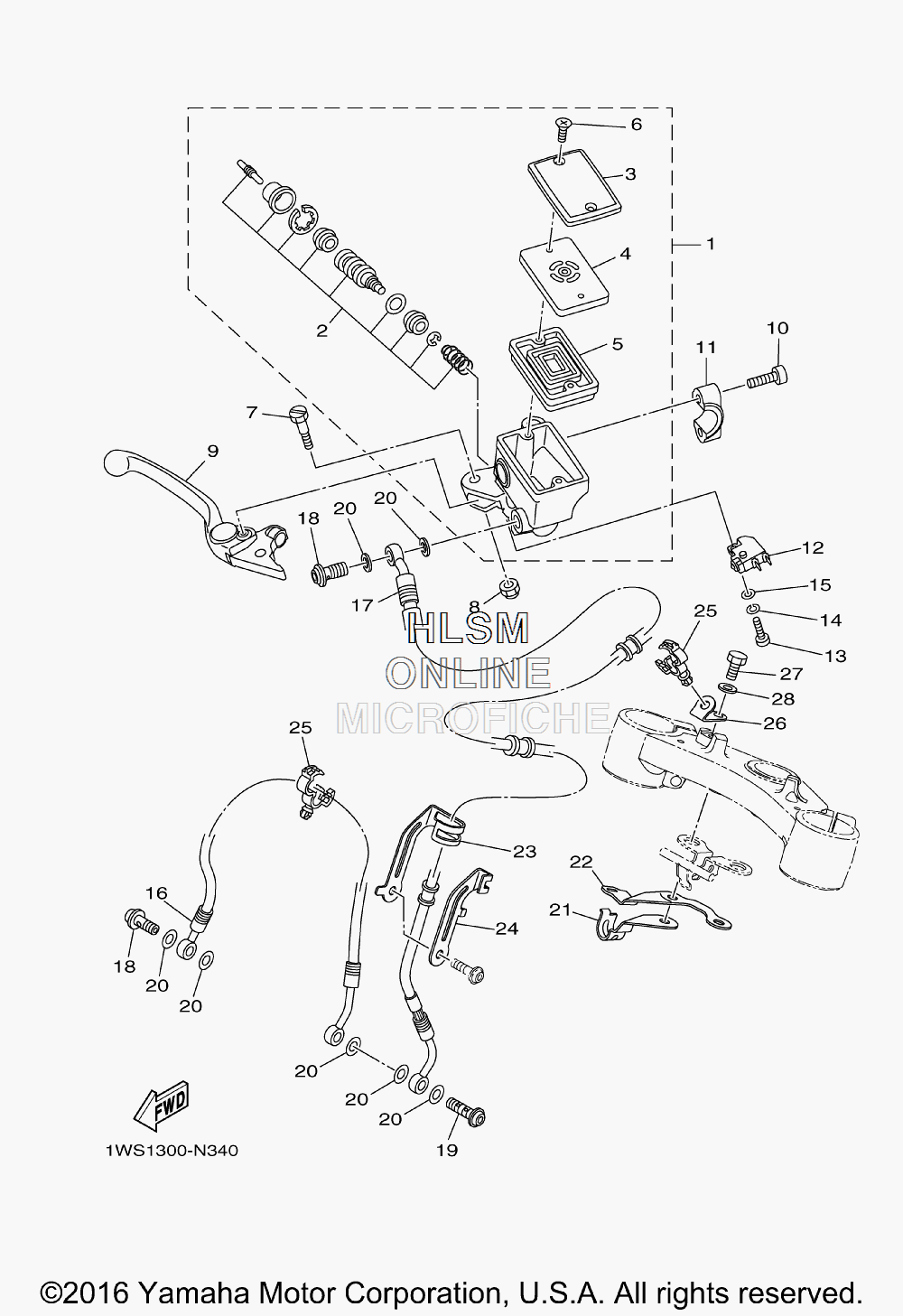

BRAKE - FRONT MASTER CYLINDER для Yamaha FZ07 [FZ07GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11WS-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
21WS-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
520S-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, UNUT, U
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
121HP-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1398502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
161WS-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
171WS-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
1890401-10172-00 BOLT, UNIONBOLT, UNION
-
1990401-10042-00 BOLT, UNIONBOLT, UNION
-
2090430-10005-00 GASKETGASKET
-
211WS-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
221WS-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
231WS-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
241WS-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2590464-18002-00 CLAMPCLAMP
-
261WS-26296-00-00 BRACKETBRACKET
-
2797027-05012-00 BOLT, HEXAGONBOLT, HEXAGON
-
2892907-05600-00 WASHER, PLATEWASHER, PLATE
