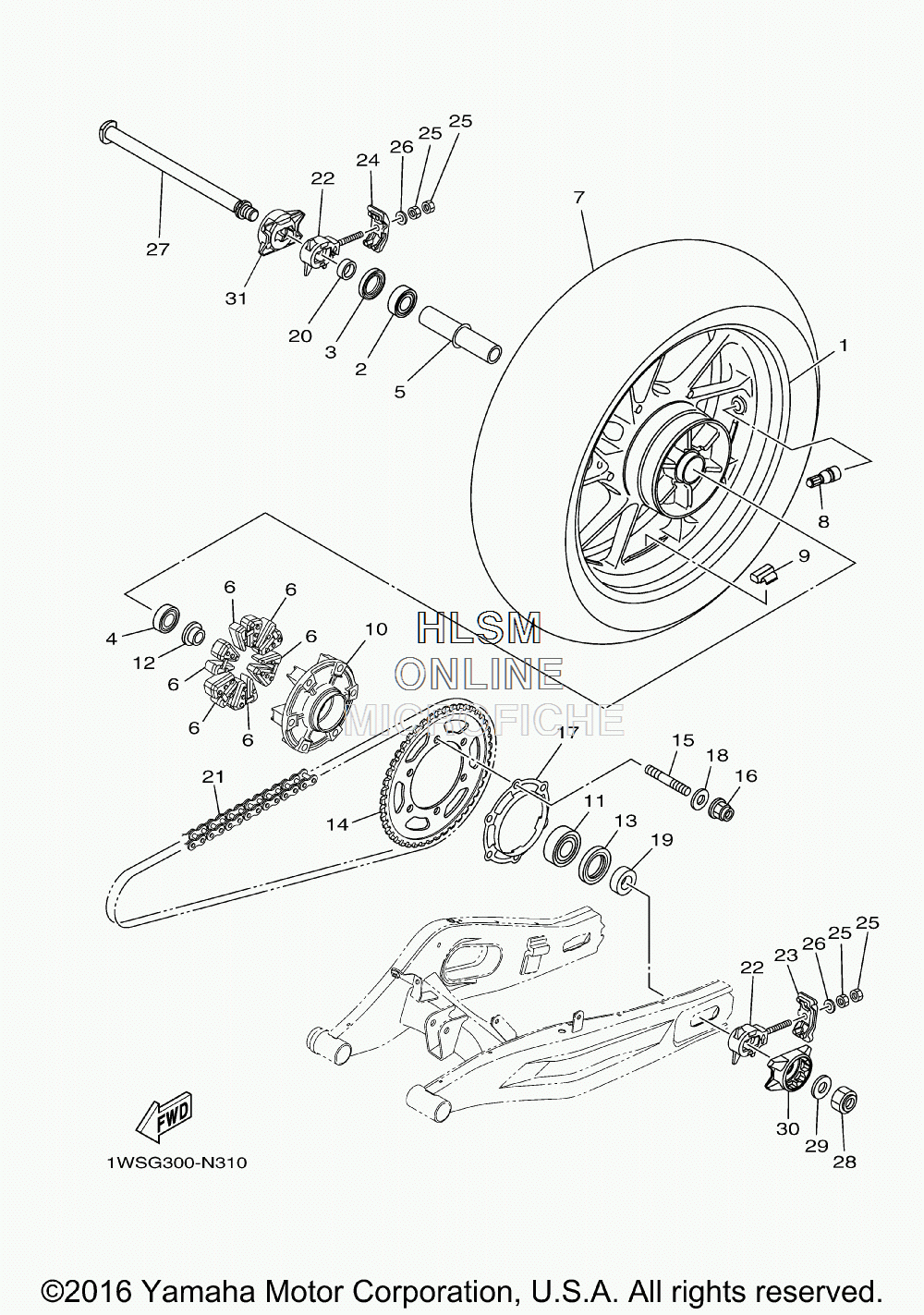

WHEEL - REAR для Yamaha FZ07 [FZ07GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-25338-00-P2 CAST WHEEL, REAR (OPT) (LLGS6 FOR BNS4)CAST WHEEL, REAR (OPT) (LLGS6 FOR BNS4)
-
293306-20480-00 BEARINGBEARING
-
393102-28022-00 OIL SEALOIL SEAL
-
493306-00416-00 BEARINGBEARING
-
52PP-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
65SL-25364-00-00 DAMPERDAMPER
-
794118-17080-00 TIRE (180/55ZR17 M/C 73W) (OPT) (BRIDGESTONE)TIRE (180/55ZR17 M/C 73W) (OPT) (BRIDGESTONE)
-
893900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
95MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
95MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
95MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
105JJ-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1193306-205B5-00 BEARINGBEARING
-
121RC-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1393106-40013-00 OIL SEALOIL SEAL
-
141WS-25443-00-00 SPROCKET, DRIVEN (43T)SPROCKET, DRIVEN (43T)
-
1590116-10048-00 BOLT, STUDBOLT, STUD
-
1695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
171WS-2537W-00-00 BRACKET 1BRACKET 1
-
1890201-10045-00 WASHER, PLATEWASHER, PLATE
-
1990387-20036-00 COLLARCOLLAR
-
2090387-20035-00 COLLARCOLLAR
-
2194582-40108-00 CHAIN (DID 525VZ-108LE)CHAIN (DID 525VZ-108LE)
-
221WS-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
231WS-22174-00-00 END 1END 1
-
241WS-22175-00-00 END 1END 1
-
2595302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
2692902-08600-00 WASHER, PLATEWASHER, PLATE
-
274FN-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2890185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2990201-18021-00 WASHER, PLATEWASHER, PLATE
-
301WS-2538D-10-00 COVER, REAR AXLE 1 (OPT) (FOR BNS4)COVER, REAR AXLE 1 (OPT) (FOR BNS4)
-
311WS-2538N-10-00 COVER, REAR AXLE 2 (OPT) (FOR BNS4)COVER, REAR AXLE 2 (OPT) (FOR BNS4)
