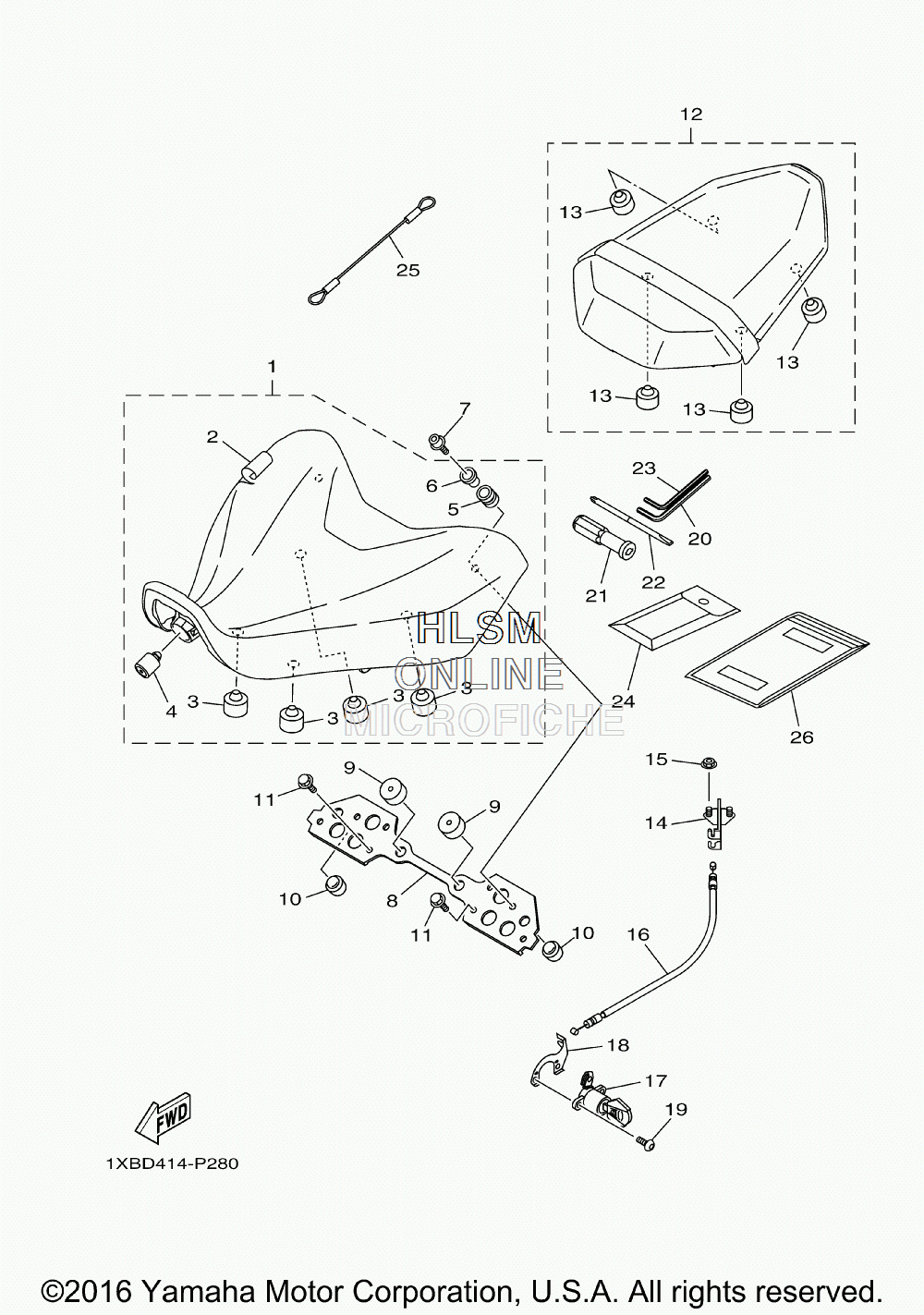

SEAT для Yamaha FZ07 [FZ07GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11WS-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
21WS-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
3371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
41D7-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
590480-14604-00 ...GROMMET...GROMMET
-
690387-07391-00 ...COLLAR...COLLAR
-
790110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
81WS-21131-00-00 BRACKETBRACKET
-
95RU-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
10157-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1195812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
121WS-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
13278-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
141WS-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1595702-06500-00 NUT, FLANGENUT, FLANGE
-
161WS-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
172TV-W2470-00-00 ROTOR SETROTOR SET
-
1823P-2117K-00-00 STAY, LOCKSTAY, LOCK
-
1990149-06030-00 SCREWSCREW
-
2014B-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
-
212H7-28151-00-00 GRIP, DRIVERGRIP, DRIVER
-
22137-28152-00-00 DRIVERDRIVER
-
2323P-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
-
241WS-28100-00-00 TOOL KITTOOL KIT
-
252S3-21398-00-00 HANGER, HELMETHANGER, HELMET
-
264KG-28186-10-00 POUCHPOUCH
