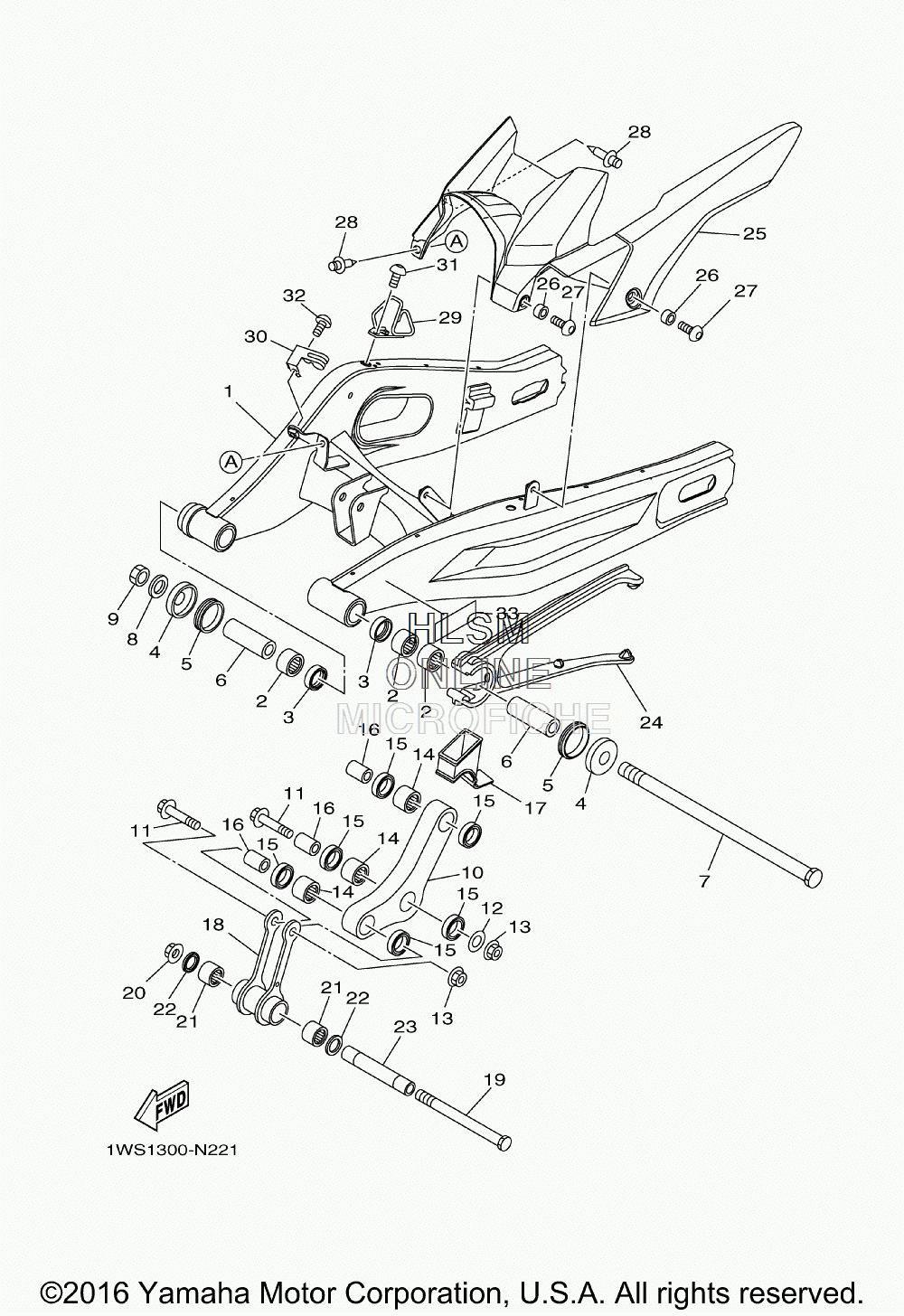

SUSPENSION - REAR ARM для Yamaha FZ07 [FZ07GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11WS-22110-10-00 REAR ARM COMP.REAR ARM COMP.
-
293317-22262-00 BEARINGBEARING
-
393106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
430X-2219X-00-00 COVERCOVER
-
593108-35004-00 OIL SEAL (35-41-8)OIL SEAL (35-41-8)
-
690380-16158-00 BUSH, SOLIDBUSH, SOLID
-
71UY-22141-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
890201-164H4-00 WASHER, PLATEWASHER, PLATE
-
990185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
101WS-2217A-00-00 ARM, RELAYARM, RELAY
-
1190105-102A6-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-10045-00 WASHER, PLATEWASHER, PLATE
-
1395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1493315-31758-00 BEARINGBEARING
-
1593109-17071-00 OIL SEALOIL SEAL
-
1690387-1012A-00 COLLARCOLLAR
-
171WS-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
181WS-2217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
1990101-12049-00 BOLTBOLT
-
2095602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2193317-31771-00 BEARINGBEARING
-
2293109-17071-00 OIL SEALOIL SEAL
-
231WS-22184-00-00 BUSHBUSH
-
241WS-22151-00-00 SEAL, GUARDSEAL, GUARD
-
251WS-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
2690387-06372-00 COLLARCOLLAR
-
2790111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890269-07007-00 RIVETRIVET
-
291WS-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
301WS-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
3192014-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3292017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
331TP-21668-00-00 LABEL, TIRELABEL, TIRE
