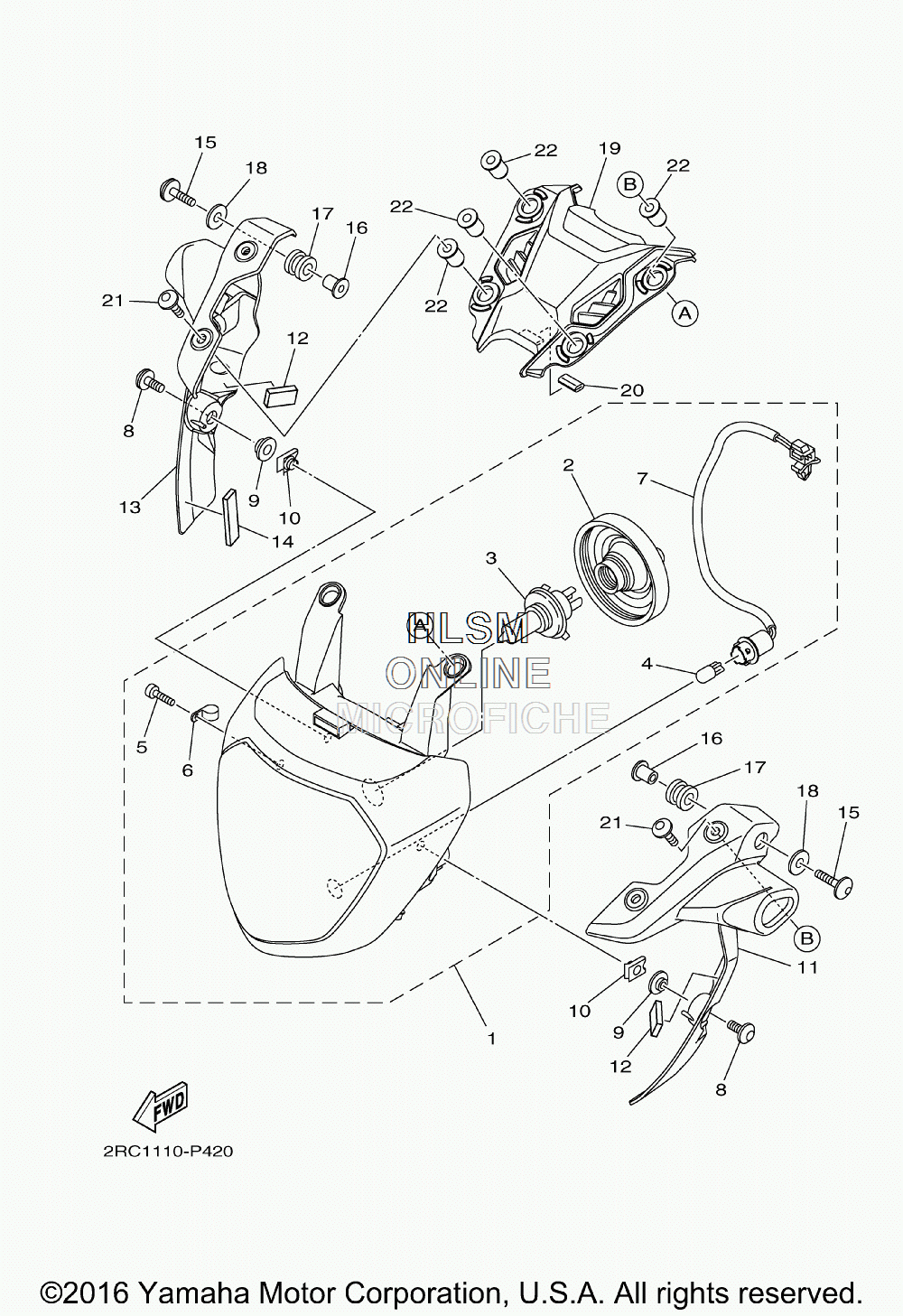

HEADLIGHT для Yamaha FZ07 [FZ07GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11WS-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
21RC-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
31RC-84314-00-00 ...BULB, HEADLIGHT (12V-60/55W)...BULB, HEADLIGHT (12V-60/55W)
-
41RC-84347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
51WS-84526-00-00 ...SCREW...SCREW
-
61WS-8454J-00-00 ...CLAMP, CORD...CLAMP, CORD
-
71WS-84359-00-00 ...CORD, HEADLIGHT...CORD, HEADLIGHT
-
890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990387-06170-00 COLLARCOLLAR
-
1090183-061A7-00 NUT, SPRINGNUT, SPRING
-
112RC-84118-00-P0 STAY, HEADLIGHT 1 (MBL2)STAY, HEADLIGHT 1 (MBL2)
-
1290520-05018-00 DAMPER, PLATEDAMPER, PLATE
-
132RC-84119-00-P0 STAY, HEADLIGHT 2 (MBL2)STAY, HEADLIGHT 2 (MBL2)
-
1490520-05019-00 DAMPER, PLATEDAMPER, PLATE
-
1590111-06150-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690387-06301-00 COLLARCOLLAR
-
1790480-12015-00 GROMMETGROMMET
-
1890201-06029-00 WASHER, PLATEWASHER, PLATE
-
191WS-84396-00-00 COVERCOVER
-
201WS-28376-00-00 TRIMTRIM
-
2190149-06302-00 SCREWSCREW
-
2290179-06072-00 NUTNUT
