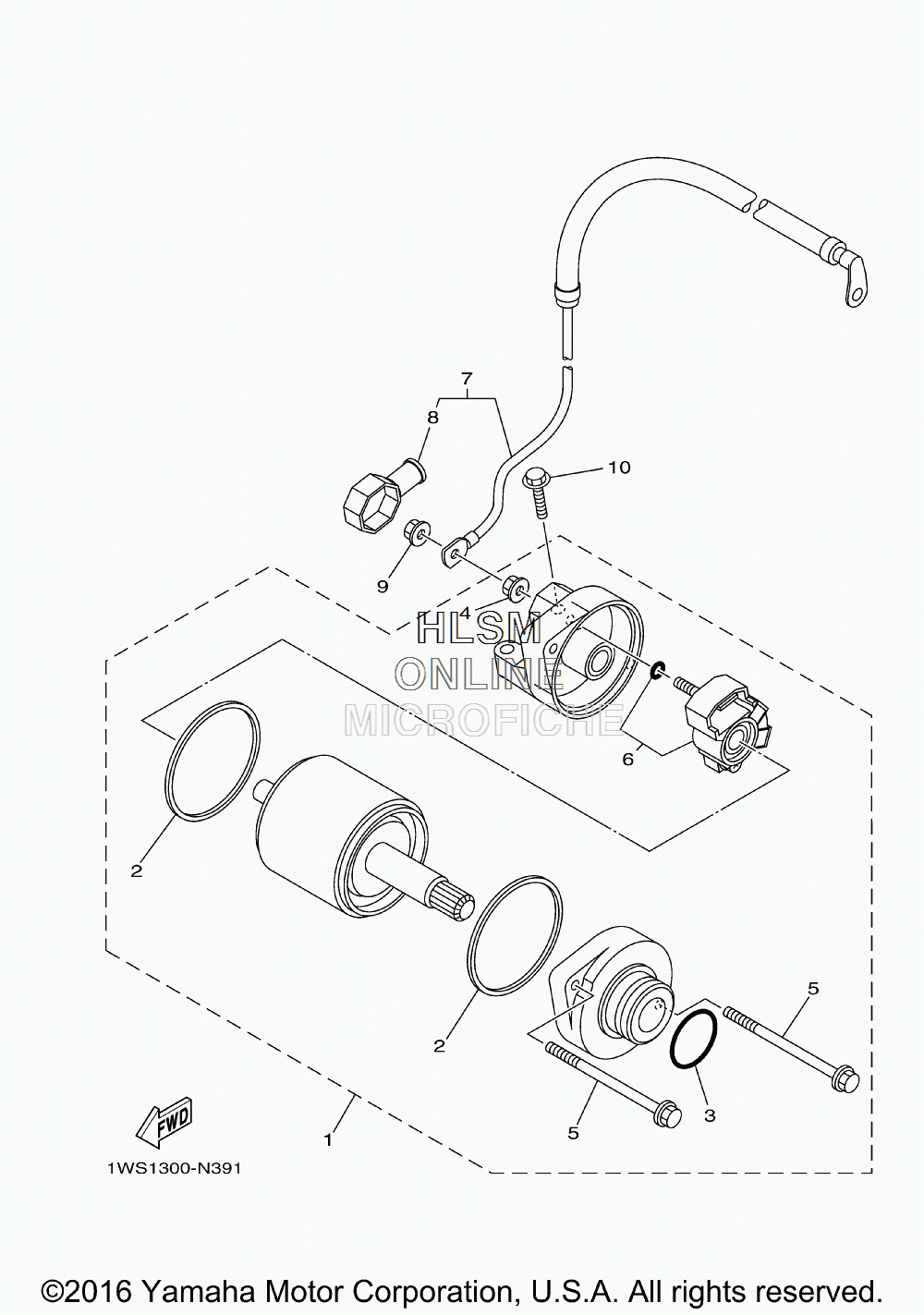

STARTING MOTOR для Yamaha FZ07 [FZ07GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11WS-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24B5-81844-00-00 ...GASKET...GASKET
-
31FK-81847-00-00 ...O-RING...O-RING
-
44XV-8182A-00-00 ...NUT...NUT
-
518P-81826-00-00 ...BOLT...BOLT
-
618P-81801-00-00 ...BRUSH SET...BRUSH SET
-
71WS-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
84B5-81871-00-00 ...CAP...CAP
-
94XV-8182A-00-00 NUTNUT
-
1091312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
