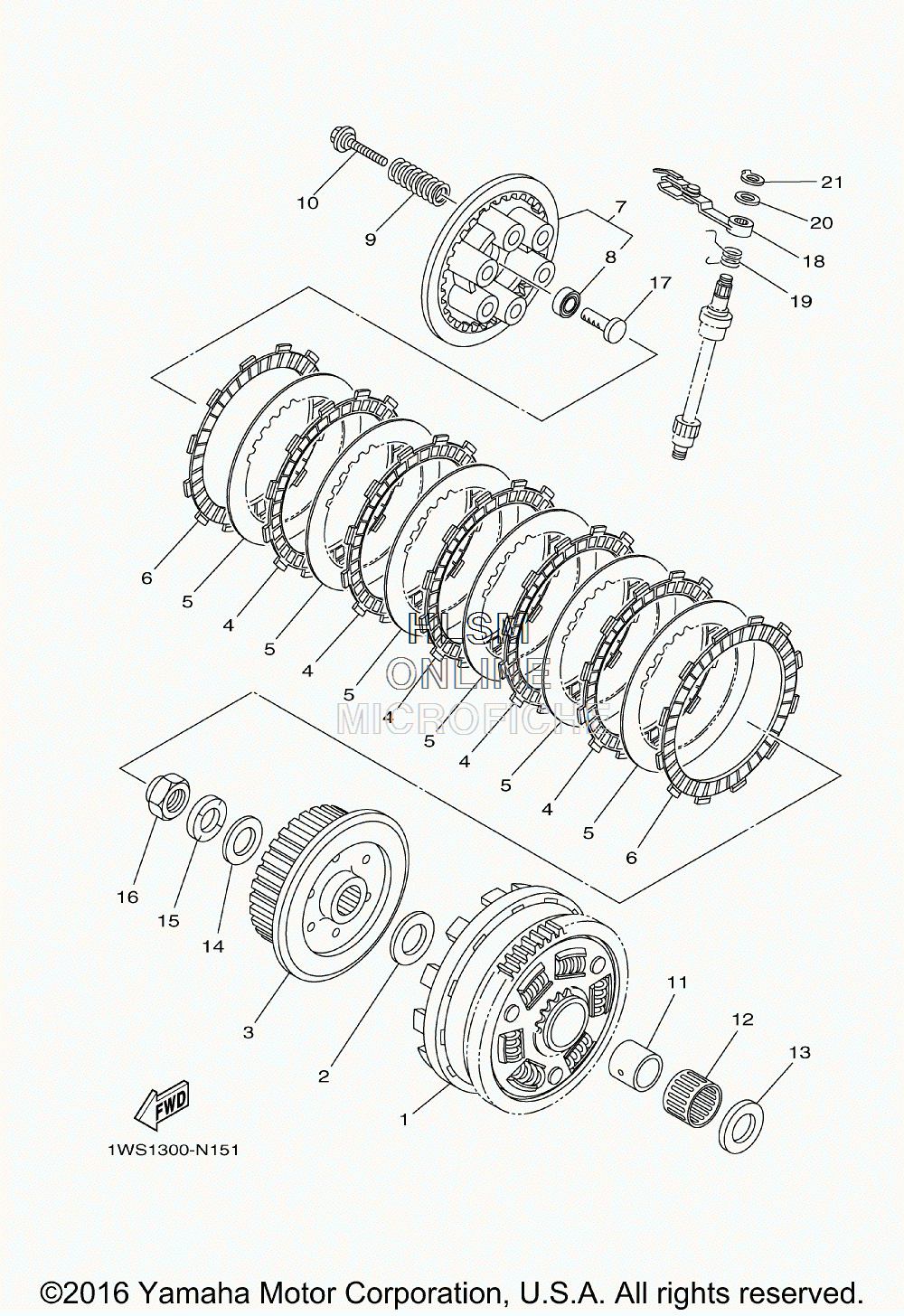

CLUTCH для Yamaha FZ07 [FZ07GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11WS-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
2363-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
31WS-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
45VY-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
55VY-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
65TG-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
71WS-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
893306-00106-00 ...BEARING...BEARING
-
990501-230E4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090119-06263-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
111WS-16181-00-00 SPACER 1SPACER 1
-
1293310-232R9-00 BEARINGBEARING
-
13363-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
1490201-20030-00 WASHER, PLATEWASHER, PLATE
-
1590208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1690179-20007-00 NUTNUT
-
171WS-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
181WS-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
1990508-18132-00 SPRING, TORSIONSPRING, TORSION
-
2090201-10029-00 WASHER, PLATEWASHER, PLATE
-
2199009-10400-00 CIRCLIPCIRCLIP
