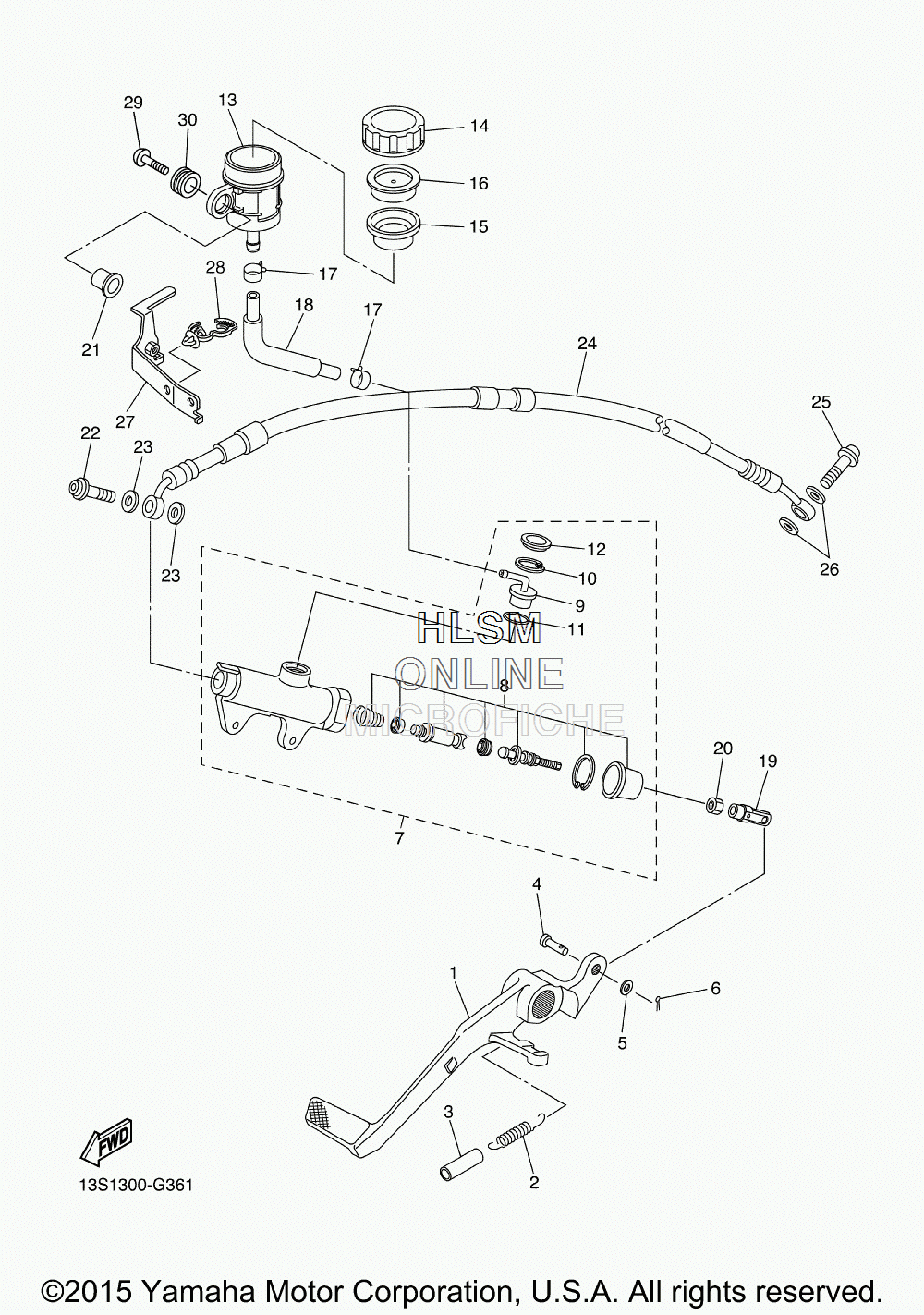

BRAKE - REAR MASTER CYLINDER для Yamaha YZF-R6 [YZFR6GGY] - 2016 года выпуска
-
№АртикулНазвание
-
12C0-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290506-20193-00 SPRING, TENSIONSPRING, TENSION
-
390446-15386-00 HOSEHOSE
-
491702-06018-00 PIN, CLEVISPIN, CLEVIS
-
592907-06200-00 WASHERWASHER
-
691402-16012-00 PIN, COTTERPIN, COTTER
-
72C0-2583V-01-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
85XT-W0042-60-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
94ML-2582A-50-00 ...JOINT...JOINT
-
102VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
1193210-15620-00 ...O-RING...O-RING
-
123FV-2589A-00-00 ...COVER, DUST...COVER, DUST
-
132C0-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
144PX-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
152VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
162VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1790467-12085-00 CLIPCLIP
-
182C0-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
194XV-27222-01-00 JOINTJOINT
-
2095307-08700-00 NUTNUT
-
2190387-05028-00 COLLARCOLLAR
-
2290401-10172-00 BOLT, UNIONBOLT, UNION
-
2390430-10005-00 GASKETGASKET
-
242C0-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
2590401-10172-00 BOLT, UNIONBOLT, UNION
-
2690430-10005-00 GASKETGASKET
-
2713S-21228-00-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
2890464-13249-00 CLAMPCLAMP
-
2990111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
302C0-26326-00-00 GROMMETGROMMET
