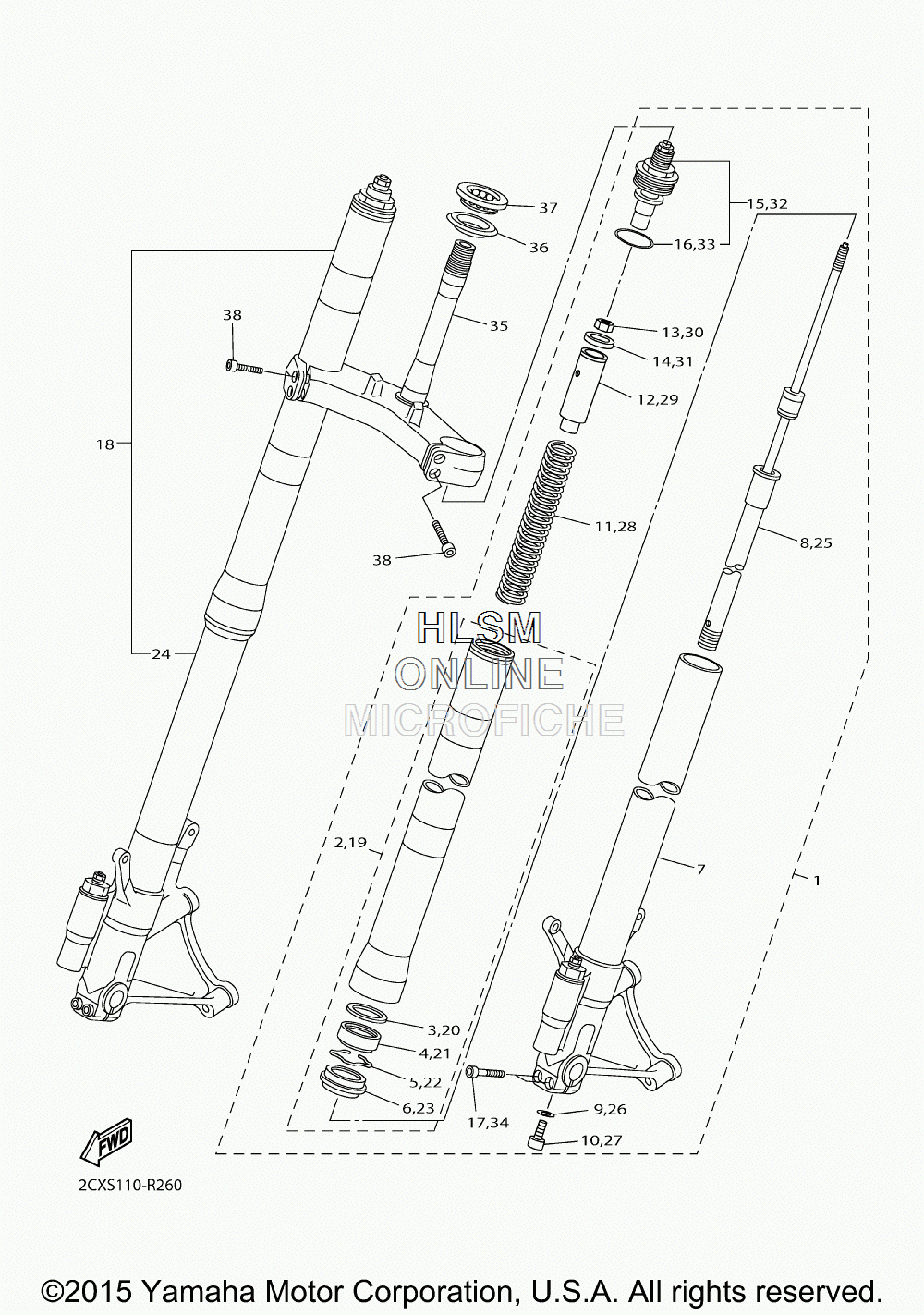

SUSPENSION - FRONT FORK для Yamaha YZF-R6 [YZFR6GGY] - 2016 года выпуска
-
№АртикулНазвание
-
12CX-23102-00-00 FRONT FORK ASSY (LEFT) (FOR DPBMC)FRONT FORK ASSY (LEFT) (FOR DPBMC)
-
12CX-23102-10-00 FRONT FORK ASSY (LEFT) (FOR MNM3)FRONT FORK ASSY (LEFT) (FOR MNM3)
-
22CX-23136-10-00 ......TUBE, OUTER (FOR MNM3)......TUBE, OUTER (FOR MNM3)
-
22CX-23136-00-00 ......TUBE, OUTER (FOR DPBMC)......TUBE, OUTER (FOR DPBMC)
-
35JJ-23146-00-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
44EB-23145-01-00 ......OIL SEAL......OIL SEAL
-
526H-23156-00-00 ......RING, SNAP......RING, SNAP
-
64EB-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
72CX-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
82CX-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
9509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
10278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
112CX-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
125VY-23118-00-00 ...SPACER...SPACER
-
133LC-23357-00-00 ...NUT...NUT
-
145VY-12277-00-00 ...WASHER...WASHER
-
155VY-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
163XJ-23147-L0-00 ......O-RING......O-RING
-
1791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
182CX-23103-00-00 FRONT FORK ASSY (RIGHT) (FOR DPBMC)FRONT FORK ASSY (RIGHT) (FOR DPBMC)
-
182CX-23103-10-00 FRONT FORK ASSY (RIGHT) (FOR MNM3)FRONT FORK ASSY (RIGHT) (FOR MNM3)
-
192CX-23136-00-00 ......TUBE, OUTER (FOR DPBMC)......TUBE, OUTER (FOR DPBMC)
-
192CX-23136-10-00 ......TUBE, OUTER (FOR MNM3)......TUBE, OUTER (FOR MNM3)
-
205JJ-23146-00-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
214EB-23145-01-00 ......OIL SEAL......OIL SEAL
-
2226H-23156-00-00 ......RING, SNAP......RING, SNAP
-
234EB-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
242CX-23120-00-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
252CX-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
26509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
27278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
282CX-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
295VY-23118-00-00 ...SPACER...SPACER
-
303LC-23357-00-00 ...NUT...NUT
-
315VY-12277-00-00 ...WASHER...WASHER
-
325VY-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
333XJ-23147-L0-00 ......O-RING......O-RING
-
3491314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
352CX-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
363FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
3793399-99957-00 BEARINGBEARING
-
3891314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
