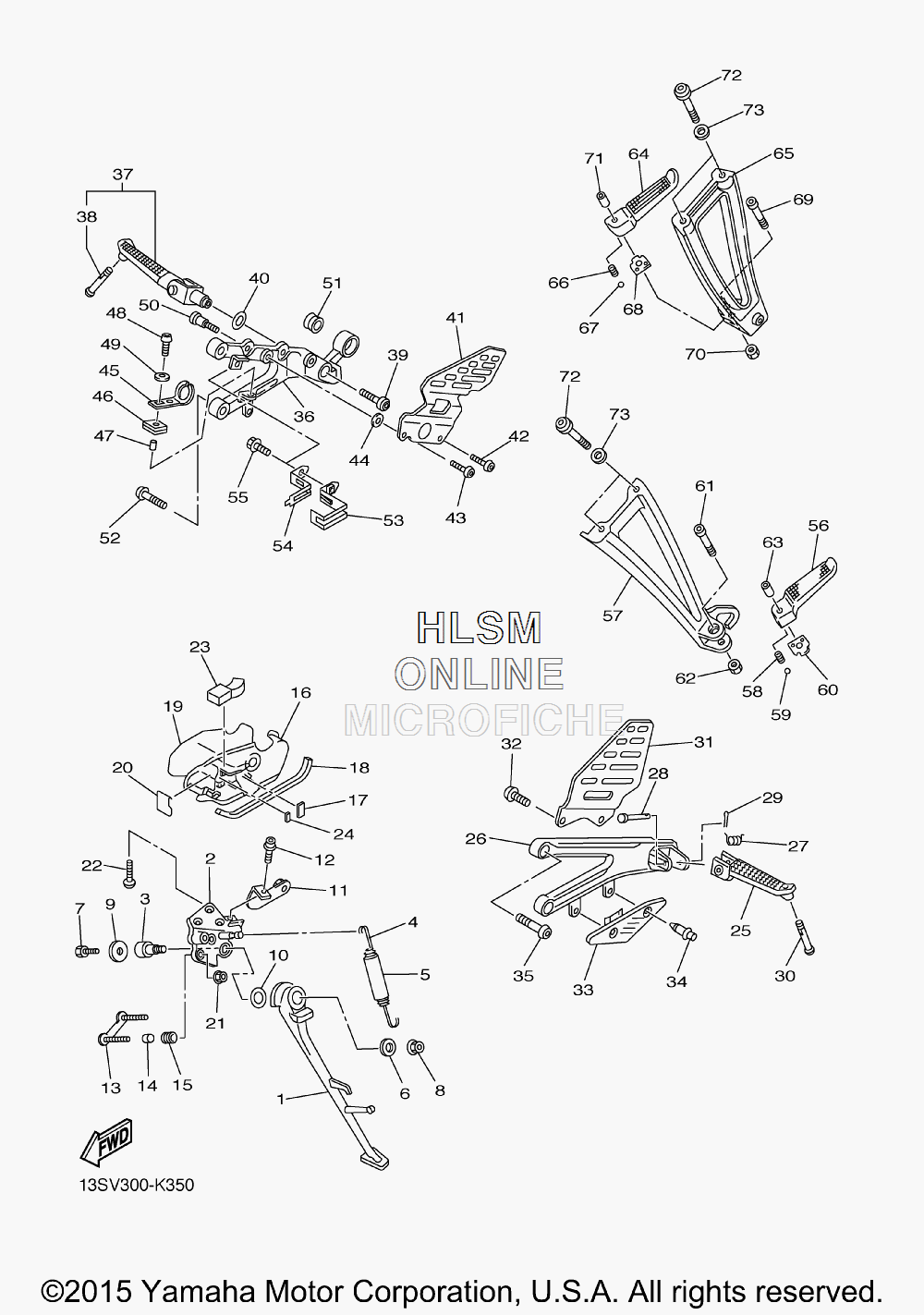

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha YZF-R6 [YZFR6GGY] - 2016 года выпуска
-
№АртикулНазвание
-
12C0-27311-10-00 STAND, SIDESTAND, SIDE
-
22C0-27321-10-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
32C0-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
490506-18008-00 SPRING, TENSIONSPRING, TENSION
-
590445-19002-00 HOSE (L60)HOSE (L60)
-
690201-10035-00 WASHER, PLATEWASHER, PLATE
-
790101-08662-00 BOLTBOLT
-
895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
990201-08050-00 WASHER, PLATEWASHER, PLATE
-
1090201-146F9-00 WASHER, PLATEWASHER, PLATE
-
1113S-2836F-00-00 BRACKET 3BRACKET 3
-
1290105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
132C0-27263-00-00 BRACKET 1BRACKET 1
-
1490387-05025-00 COLLARCOLLAR
-
1590480-11006-00 GROMMETGROMMET
-
162C0-27453-00-00 COVER 1COVER 1
-
172C0-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
182C0-27415-00-00 PLATE, FOOTRESTPLATE, FOOTREST
-
192C0-28428-00-00 SEAL 1SEAL 1
-
202C0-28429-00-00 SEAL 2SEAL 2
-
2190185-05009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290111-08065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
232C0-28425-00-00 DAMPER 3DAMPER 3
-
242C0-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
255SL-27451-00-00 FOOTRESTFOOTREST
-
262C0-27442-10-00 BRACKET 2BRACKET 2
-
2790508-18134-00 SPRING, TORSIONSPRING, TORSION
-
2890240-08084-00 PIN, CLEVISPIN, CLEVIS
-
2991402-25015-00 PIN, COTTERPIN, COTTER
-
3090109-086F8-00 BOLTBOLT
-
312C0-27445-10-00 PLATE 1PLATE 1
-
3290149-06233-00 SCREWSCREW
-
332C0-27491-00-00 PROTECTORPROTECTOR
-
3490269-06008-00 RIVETRIVET
-
3590109-085G6-00 BOLTBOLT
-
362C0-27443-10-00 BRACKET 3BRACKET 3
-
372C0-27420-10-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
3890109-086F8-00 ...BOLT...BOLT
-
3990109-103A9-00 BOLTBOLT
-
4090214-13002-00 WASHER, CLAWWASHER, CLAW
-
4113S-27446-10-00 PLATE 2PLATE 2
-
4290149-06233-00 SCREWSCREW
-
4390111-06067-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
4490387-06215-00 COLLARCOLLAR
-
4513S-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
4690480-12607-00 GROMMETGROMMET
-
4790387-06023-00 COLLARCOLLAR
-
4892017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4990201-06380-00 WASHER PLAINWASHER PLAIN
-
5090109-066F0-00 BOLTBOLT
-
512C0-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
5290109-085G6-00 BOLTBOLT
-
532C0-2116K-00-00 BRACKET 8BRACKET 8
-
542C0-2116L-00-00 BRACKET 9BRACKET 9
-
5595024-06012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
565JJ-27431-10-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
572C0-2741L-10-00 BRACKET 4BRACKET 4
-
5890501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5993501-04011-00 BALL 1/4BALL 1/4
-
605JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
6191312-06035-00 BOLTBOLT
-
6295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6390387-06697-00 COLLARCOLLAR
-
645JJ-27441-10-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
652C0-2742L-10-00 BRACKET 5BRACKET 5
-
6690501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6793501-04011-00 BALL 1/4BALL 1/4
-
685JJ-27437-01-00 WASHER, SPECIALWASHER, SPECIAL
-
6991312-06035-00 BOLTBOLT
-
7095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
7190387-06697-00 COLLARCOLLAR
-
7290111-08066-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7313S-27417-00-00 WASHER, FOOTRESTWASHER, FOOTREST
